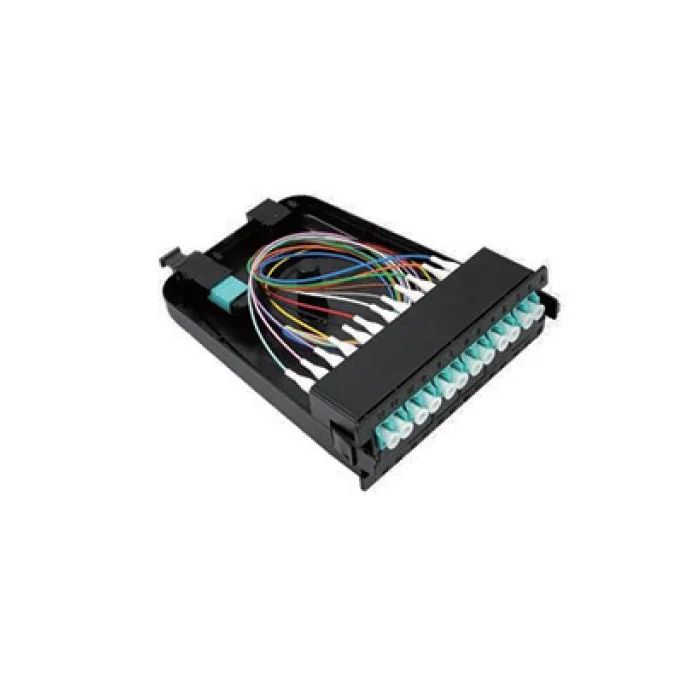

MPO to LC Cassette 12/24 Fiber 6/12 Duplex | MPO Fiber Module With/Without Harness
Categories:
Product Highlights:
- MPO to LC cassette module supporting 12 or 24 fiber conversion
- Flexible options with or without pre-terminated harness cables
- Compact and efficient solution for high-density fiber distribution
- Compatible With Patch Panels: MPHDF-96LC-1U, MPHDFS-96LC-1U, MPHDF-288LC-3U, MPHDL-96C-1U, MPHDL-196F-2U, MPHDS-96F-1U
- Compatible Harness Cable: MPNLS-HR224S3YL01
Table of Contents
Description
The MPO to LC cassette module is a high-density fiber distribution solution designed to efficiently convert MPO backbone connectivity into standard LC duplex interfaces. Supporting 12 or 24 fiber configurations, corresponding to 6 or 12 duplex LC ports, this module enables seamless integration between high-capacity MPO trunk cables and active network equipment. It plays a critical role in structured cabling systems by simplifying the transition from multi-fiber to duplex connectivity.
This cassette is available in both pre-terminated and non-terminated versions, offering flexibility to match different deployment requirements. The pre-terminated option includes factory-installed MPO harness patch cords, ensuring fast installation, consistent optical performance, and reduced field labor. Alternatively, the non-terminated version allows users to customize internal wiring, making it suitable for specialized projects or OEM configurations.
Designed for compatibility with MPO patch panels and modular enclosures, the cassette features a compact structure that optimizes space utilization while maintaining organized cable routing. It supports both singlemode and multimode fiber types and is engineered to deliver stable, low-loss performance for high-speed network applications, making it a reliable and scalable solution for modern data centers and enterprise networks.
Specification
| Product Type | MPO to LC Cassette Module |
|---|---|
| Fiber Count | 12 / 24 Fibers |
| LC Ports | 6 / 12 Duplex LC |
| Connector Type | MPO to LC |
| Fiber Mode | OS2 / OM3 / OM4 / OM5 |
| Harness Option | With or Without Pre-terminated Harness |
| Polarity | Type A / Type B / Type C |
| Insertion Loss | ≤ 0.35dB (MPO), ≤ 0.2dB (LC) |
| Return Loss | ≥ 60dB (SM) / ≥ 20dB (MM) |
| Housing Material | ABS / Metal |
| Application | MPO Patch Panel / Enclosure |
| Testing | 100% factory tested |
Features
- Supports 12 or 24 fiber configurations (6 or 12 duplex LC ports)
- Converts MPO interface to standard LC duplex connections
- Available with or without pre-terminated harness patch cords
- Compact modular design for high-density applications
- Compatible with MPO patch panels and enclosures
- Supports singlemode and multimode fiber types
- Low insertion loss and stable optical performance
- Customizable configuration, polarity, and labeling
Applications
- Data center structured cabling
- MPO backbone to equipment connectivity
- High-density fiber patch panels
- Cloud and enterprise network infrastructure
- Telecom and server room deployments
- High-speed optical network environments
FAQ
Q1: What is the purpose of an MPO to LC cassette?
A: It converts high-density MPO connections into multiple LC duplex ports, enabling easy connection to standard network equipment.
Q2: What is the difference between with and without harness options?
A: The “with harness” version includes pre-terminated MPO breakout cables for quick deployment, while the “without harness” version allows custom internal wiring.
Q3: How many LC ports are available?
A: The cassette supports 6 duplex LC ports (12 fibers) or 12 duplex LC ports (24 fibers).
Q4: Is this cassette suitable for high-speed applications?
A: Yes, it supports high-speed networks such as 40G and 100G when used with appropriate MPO systems.
Q5: Can this cassette be customized?
A: Yes, fiber type, polarity, connector configuration, and labeling can be customized to meet project or OEM requirements.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
