MPO to MPO Cassette 6 Port 3 MPO to 6 MPO High Density Module
Categories:
Product Highlights:
- 3 MPO to 6 MPO cassette for high-density backbone fiber connectivity
- Modular design enables flexible MPO trunk expansion and distribution
- Compatible with standard HD cassette patch panel systems
- Compatible Patch Panels: 1U 144-Core: FPP-12M3Q-1U-144F, 2U 288-Core: FPP-24M3Q-2U-288F, 4U 576-Core: FPP-48M3Q-4U-576F
Table of Contents
Description

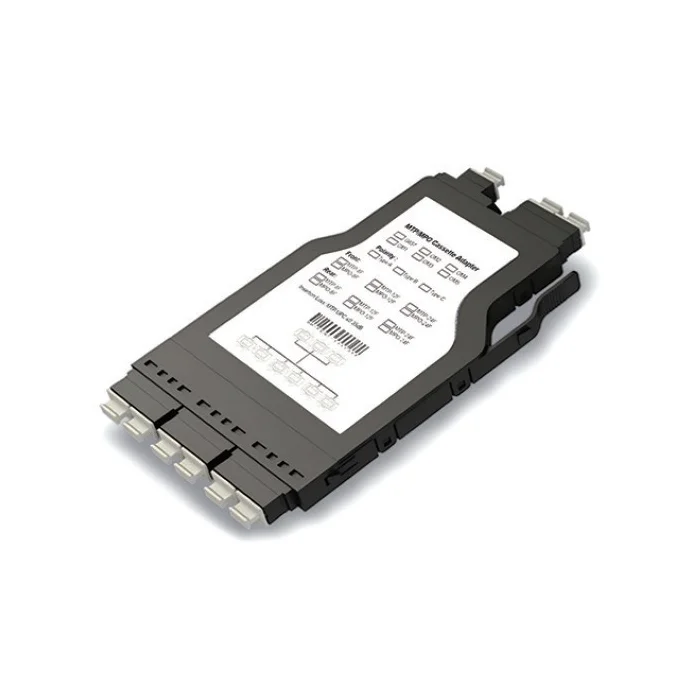

The MPO to MPO Fiber Optic Cassette 6 Port module is designed for high-density backbone connectivity in modern structured cabling systems. Featuring a 3 MPO to 6 MPO configuration, it enables efficient redistribution of MPO trunk links, supporting scalable and flexible optical network architectures. This cassette maintains full mechanical compatibility with standard MPO-LC cassette systems, allowing seamless integration into existing ultra high-density patch panels while providing a dedicated MPO-to-MPO internal connectivity structure.
Engineered for high-performance environments, the module is ideal for data centers and backbone networks where MPO interfaces are preferred for high-speed transmission. Its internal design ensures stable optical alignment and efficient signal distribution, supporting reliable multi-fiber connectivity across complex network topologies. The cassette format simplifies deployment and allows quick upgrades without modifying the existing panel infrastructure.
With a focus on modularity and ease of use, the cassette supports efficient cable organization and reduced installation complexity. It is optimized for environments requiring flexible MPO expansion, ensuring consistent performance in demanding high-bandwidth applications.
Specification
| Product Type | MPO to MPO Fiber Cassette |
|---|---|
| MPO Ports | 6 Ports |
| Configuration | 3 MPO Input to 6 MPO Output |
| Connector Type | MPO/MTP |
| Fiber Type | SM / MM (OS2, OM3, OM4, OM5 optional) |
| Polarity | Type A / B / C (customizable) |
| Pin Type | Male / Female (optional) |
| Insertion Loss | ≤0.35 dB (typical) |
| Return Loss | ≥20 dB (MM) / ≥50 dB (SM) |
| Housing Material | ABS / Metal (optional) |
| Compatibility | Standard MPO cassette slots |
| Operating Temperature | -20°C to +70°C |
| Application | MPO trunk distribution |
Features
- 3 MPO input to 6 MPO output configuration
- 6 MPO ports for high-density trunk connectivity
- Fully compatible with standard HD cassette patch panel systems
- Supports MPO backbone expansion and redistribution
- Compact modular design for efficient space utilization
- Stable optical alignment for reliable transmission
- Designed for high-speed and high-bandwidth networks
- Easy installation and maintenance in modular systems
Applications
- Data center backbone cabling
- High-speed network infrastructure
- MPO trunk expansion and distribution systems
- Enterprise structured cabling
- Telecommunications backbone networks
- High-density fiber distribution frames (FDF)
FAQs
Q1: What is the purpose of a 3 MPO to 6 MPO cassette?
It is used to expand and redistribute MPO backbone connections, enabling flexible trunk management in high-density environments.
Q2: Is this cassette compatible with MPO-LC cassette systems?
Yes, it shares the same mechanical form factor and integrates seamlessly into standard HD patch panel systems.
Q3: Does this module contain LC adapters?
No, this version is dedicated to MPO-to-MPO connectivity only.
Q4: Where is this cassette typically used?
It is commonly used in data centers and backbone networks requiring high-speed multi-fiber MPO links.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
