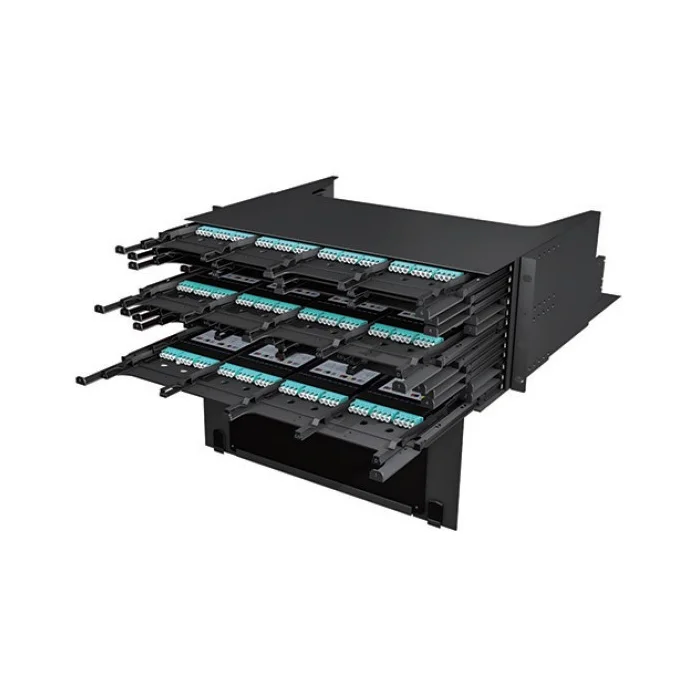

4U Ultra HD Fiber Patch Panel 576 Core | 48 Cassette High Density Modular Rack
Categories:
Product Highlights:
- Ultra HD 4U fiber patch panel supporting up to 576 cores
- Modular design with up to 48 cassettes for scalable deployment
- High-density solution optimized for large network infrastructures
Fully Compatible With Cassette Models:
- 8 LC: MP8LC8F2Q, 12 LC: MP12LC12F3Q, 24 LC: MP24LC6Q
- 6 SC: MP6LC12F4Q
- 6 MPO: MPMP6P3Q
Table of Contents
Description
The 4U Ultra HD fiber patch panel is designed to deliver exceptional capacity and flexibility for ultra high-density fiber management in large-scale network environments. Supporting up to 576 fiber cores within a single 4U rack space, it provides a powerful solution for data centers and telecommunications infrastructures that require maximum connectivity within limited physical space. The panel accommodates up to 48 modular fiber optic cassettes, enabling efficient distribution and scalable network expansion.
This patch panel is available either fully loaded with cassettes or as an empty chassis, allowing deployment to be tailored according to project requirements. The modular design simplifies installation and future upgrades, making it easy to expand capacity or reconfigure connections without significant downtime. Its optimized internal layout ensures clean cable routing and improved accessibility, enhancing both operational efficiency and long-term maintainability.
Constructed with a robust enclosure measuring 440×350mm, the panel is built to withstand demanding environments while maintaining stable performance. Its high-density architecture maximizes rack space utilization and supports high-speed optical networks, making it an ideal choice for backbone cabling, hyperscale data centers, and enterprise core networks.
HD MPO Panels Features/Size
| SKU | Port of Cassette | Fiber Capacity | Size |
| MPHDF-96LC-1U | 4 | 96 | 430*355*1U |
| MPHDFS-96LC-1U | 4 | 96 | 430*342*1U |
| MPHDF-288LC-3U | 12 | 288 | 430*355*3U |
| MPHDL-96C-1U | 4 | 96 | 430*363*1U |
| MPHDL-196F-2U | 8 | 192 | 430*363*2U |
| MPHDS-96F-1U | 4 | 96 | 430*240*1U |
| FPP-5CA-1U-120F | 5 | 120 | 430*355*1U |
| FPP-12CA-2U-288F | 12 | 288 | 430*335*2U |
| FPP-12M3Q-1U-144F | 12 | 144 | 440*350*1U |
| FPP-24M3Q-2U-288F | 24 | 288 | 440*350*2U |
| FPP-48M3Q-4U-576F | 48 | 576 | 440*350*4U |
Specification
| Product Type | Fiber Patch Panel |
|---|---|
| Rack Unit | 4U |
| Dimensions | 440 × 350 × 4U |
| Max Fiber Capacity | 576 Cores |
| Cassette Capacity | Up to 48 Modular Cassettes |
| Supported Connectors | LC / SC / MPO (customizable) |
| Fiber Mode | Single-mode / Multimode |
| Material | Cold-rolled Steel |
| Installation Type | 19-inch Rack Mount |
| Cable Entry | Front & Rear |
| Configuration Option | With / Without Cassettes |
| Color | Black (customizable) |
| Operating Temperature | -20°C to +60°C |
Features
- Supports up to 576 fiber cores in 4U rack space
- Accommodates up to 48 modular fiber cassettes
- Available as fully loaded or empty chassis
- Ultra high-density design for maximum capacity
- Modular structure for easy expansion and reconfiguration
- Optimized cable management for organized routing
- Durable enclosure for long-term reliability
- Compatible with MPO and LC cassette modules
- Customizable configurations and branding options
Applications
- Hyperscale and large data centers
- Backbone and aggregation networks
- Structured cabling systems
- Telecom and service provider infrastructure
- Enterprise core network deployments
- High-capacity fiber distribution systems
FAQ
Q1: What is the maximum capacity of this patch panel?
A: It supports up to 576 fiber cores within a 4U rack space when fully equipped with cassettes.
Q2: Can the panel be purchased without cassettes?
A: Yes, it is available as an empty chassis or fully loaded with up to 48 modular cassettes.
Q3: What types of cassettes are compatible?
A: It supports various MPO and LC cassette modules depending on network requirements.
Q4: Is this panel suitable for future expansion?
A: Yes, the modular design allows easy addition or replacement of cassettes for scalability.
Q5: What environments is this panel best suited for?
A: It is ideal for large-scale data centers, telecom infrastructure, and high-capacity network systems.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
