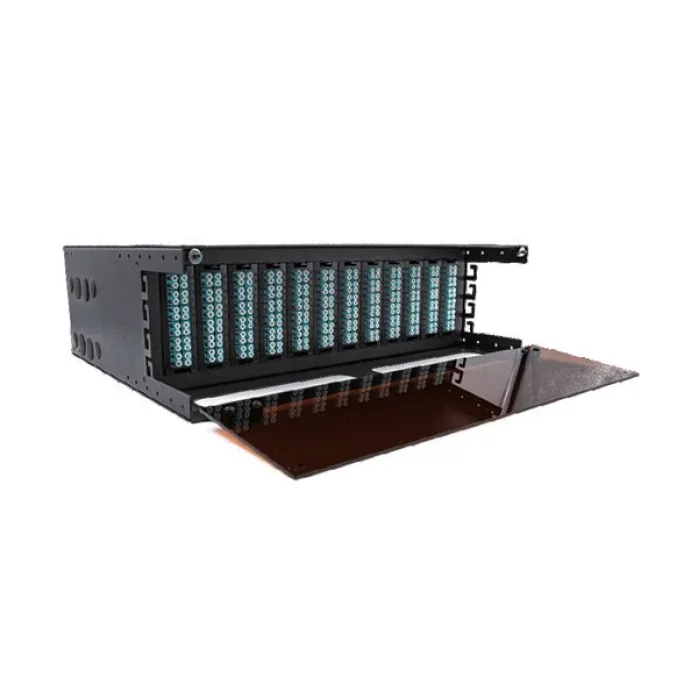

3U MPO Patch Panel 288 Fiber with 12 Cassettes | Ultra High Density Rack Mount 430×355mm
Categories:
Product Highlights:
-
- 3U MPO patch panel supporting up to 288 fibers with 12 cassettes
- Ultra high-density design for efficient large-scale fiber management
- Reliable and space-saving solution for modern data centers
- Compatible Cassette: MPC1224DSLC
Table of Contents
Description
The 3U 288 fiber MPO patch panel is engineered to meet the demands of ultra high-density network environments, providing a scalable and efficient fiber management solution for modern data centers and backbone infrastructures. Equipped with 12 MPO cassettes, it supports up to 288 fiber connections within a standard 19-inch rack, enabling large-scale deployments while maintaining a compact footprint.
Designed with a fixed structure, the panel offers a stable and organized platform for high-capacity fiber connectivity. Its optimized internal layout ensures clean cable routing, reduces congestion, and improves overall system reliability. By facilitating the transition from MPO trunk cables to standard interfaces such as LC or SC, it simplifies network architecture and enhances deployment efficiency.
Manufactured using high-quality materials and strict production standards, the panel delivers consistent performance and long-term durability. Its high-density configuration maximizes rack space utilization, making it an ideal solution for high-bandwidth applications where efficient use of infrastructure is critical.
HD MPO Panels Features/Size
| SKU | Port of Cassette | Fiber Capacity | Size |
| MPHDF-96LC-1U | 4 | 96 | 430*355*1U |
| MPHDFS-96LC-1U | 4 | 96 | 430*342*1U |
| MPHDF-288LC-3U | 12 | 288 | 430*355*3U |
| MPHDL-96C-1U | 4 | 96 | 430*363*1U |
| MPHDL-196F-2U | 8 | 192 | 430*363*2U |
| MPHDS-96F-1U | 4 | 96 | 430*240*1U |
| FPP-5CA-1U-120F | 5 | 120 | 430*355*1U |
| FPP-12CA-2U-288F | 12 | 288 | 430*335*2U |
| FPP-12M3Q-1U-144F | 12 | 144 | 440*350*1U |
| FPP-24M3Q-2U-288F | 24 | 288 | 440*350*2U |
| FPP-48M3Q-4U-576F | 48 | 576 | 440*350*4U |
Specification
| Product Type | MPO Patch Panel (Fully Loaded) |
|---|---|
| Rack Unit | 3U |
| Fiber Capacity | 288 Fibers |
| Cassette Quantity | 12 MPO Cassettes |
| Connector Type | MPO to LC / SC |
| Installation Type | 19-inch Rack Mount |
| Dimensions | 430 × 355 × 3U mm |
| Material | Cold-rolled steel |
| Fiber Mode | OS2 / OM3 / OM4 / OM5 |
| Operating Temperature | -20°C to +70°C |
| Application | High-density fiber management |
Features
- Supports up to 288 fiber connections in 3U rack space
- Pre-loaded with 12 MPO cassettes for high-density deployment
- Fixed structure for enhanced stability and durability
- Optimized cable management for organized routing
- Enables MPO to LC/SC interface conversion
- Suitable for large-scale fiber infrastructure
- Durable construction for long-term reliability
- Customizable cassette types and configurations
Applications
- Large-scale data centers
- Backbone and aggregation networks
- Structured cabling systems
- Cloud computing and hyperscale environments
- Enterprise core network infrastructure
- Telecom and service provider networks
FAQ
Q1: How many fibers can this panel support?
A: The panel supports up to 288 fibers using 12 MPO cassettes within a 3U rack space.
Q2: What types of connectors are available on the cassette side?
A: The cassettes can be configured with LC, SC, or other standard interfaces depending on application requirements.
Q3: Is this panel suitable for high-speed networks?
A: Yes, it is designed to support high-speed applications such as 40G, 100G, 200G, and 400G when used with appropriate MPO systems.
Q4: Can this patch panel be customized?
A: Yes, customization options include cassette configuration, adapter types, port labeling, and branding for OEM projects.
Q5: What are the advantages of a high-density 3U panel?
A: It maximizes fiber capacity within limited rack space, reducing infrastructure footprint while supporting scalable network growth.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
