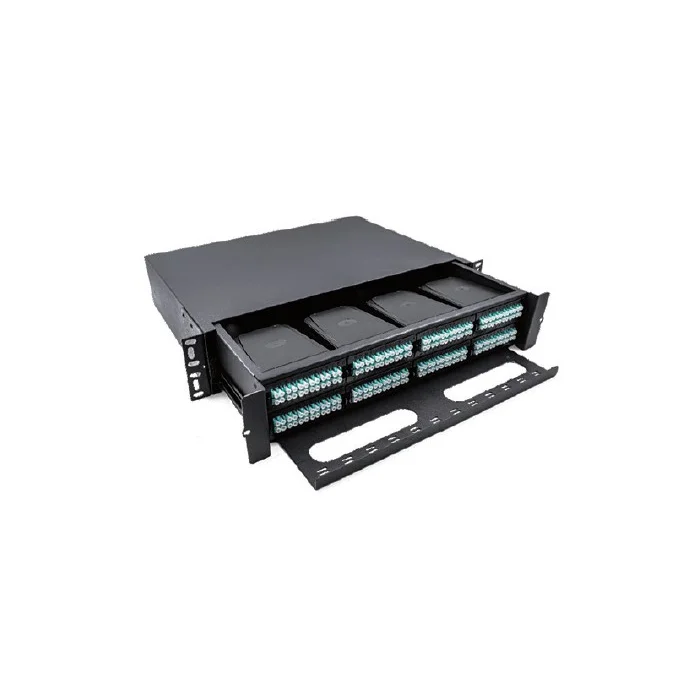

Sliding 2U MPO Patch Panel 192 Fiber with 8 Cassettes | Pull-Out High Density Rack Mount 430×363mm
Categories:
Product Highlights:
- Sliding 2U MPO patch panel supporting up to 192 fibers with 8 cassettes
- Pull-out design ensures easy access and efficient maintenance
- High-density and reliable solution for modern fiber networks
- Compatible Cassette: MPC1224DSLC
Table of Contents
Description
The sliding 2U MPO patch panel with 192 fiber capacity is designed to deliver high-density fiber management with enhanced accessibility for modern data centers and network infrastructures. Equipped with 8 MPO cassettes, it supports up to 192 fiber connections within a compact 2U rack space, making it an ideal solution for medium to large-scale deployments requiring efficient space utilization and scalability.
Its pull-out sliding tray design allows technicians to easily access internal components from the front without removing the panel from the rack. This significantly improves installation efficiency and simplifies ongoing maintenance, especially in high-density environments where accessibility is often limited. The smooth sliding mechanism ensures safe handling of fiber connections while minimizing disruption to adjacent equipment.
Constructed with a durable metal housing and precision-engineered internal layout, the panel ensures organized cable routing and stable long-term performance. Its standardized dimensions of 430×363×2U make it fully compatible with 19-inch racks, offering a practical balance between capacity, usability, and reliability in structured cabling systems.
HD MPO Panels Features/Size
| SKU | Port of Cassette | Fiber Capacity | Size |
| MPHDF-96LC-1U | 4 | 96 | 430*355*1U |
| MPHDFS-96LC-1U | 4 | 96 | 430*342*1U |
| MPHDF-288LC-3U | 12 | 288 | 430*355*3U |
| MPHDL-96C-1U | 4 | 96 | 430*363*1U |
| MPHDL-196F-2U | 8 | 192 | 430*363*2U |
| MPHDS-96F-1U | 4 | 96 | 430*240*1U |
| FPP-5CA-1U-120F | 5 | 120 | 430*355*1U |
| FPP-12CA-2U-288F | 12 | 288 | 430*335*2U |
| FPP-12M3Q-1U-144F | 12 | 144 | 440*350*1U |
| FPP-24M3Q-2U-288F | 24 | 288 | 440*350*2U |
| FPP-48M3Q-4U-576F | 48 | 576 | 440*350*4U |
Specification
| Product Type | Sliding MPO Patch Panel |
|---|---|
| Rack Unit | 2U |
| Fiber Capacity | 192 Fibers |
| Cassette Quantity | 8 MPO Cassettes |
| Connector Type | MPO to LC / SC |
| Installation Type | 19-inch Rack Mount |
| Dimensions | 430 × 363 × 2U mm |
| Design Feature | Sliding (Pull-Out Tray) |
| Material | Cold-rolled steel |
| Fiber Mode | OS2 / OM3 / OM4 / OM5 |
| Operating Temperature | -20°C to +70°C |
| Application | High-density fiber management |
Features
- Supports up to 192 fiber connections in 2U rack space
- Pre-loaded with 8 MPO cassettes for high-density deployment
- Sliding pull-out tray for easy front access
- Improves installation and maintenance efficiency
- Optimized cable management for organized routing
- Durable metal construction for long-term reliability
- Compatible with standard 19-inch racks
- Customizable cassette types and configurations
Applications
- Medium to large-scale data centers
- Structured cabling systems
- Enterprise network infrastructure
- Cloud and hyperscale environments
- Telecom and server room installations
- Backbone and aggregation network layers
FAQ
Q1: What is the benefit of the sliding tray design?
A: It allows easy access to internal components without removing the panel, simplifying installation and maintenance in dense environments.
Q2: How many fibers can this panel support?
A: It supports up to 192 fibers using 8 MPO cassettes within a 2U rack space.
Q3: Is this panel suitable for high-density applications?
A: Yes, it is specifically designed for high-density cabling systems in data centers and enterprise networks.
Q4: Can the panel be customized?
A: Yes, cassette configurations, adapter types, and labeling can be customized to meet OEM or project requirements.
Q5: Is it compatible with standard racks?
A: Yes, it fits standard 19-inch racks with dimensions of 430×363×2U.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
