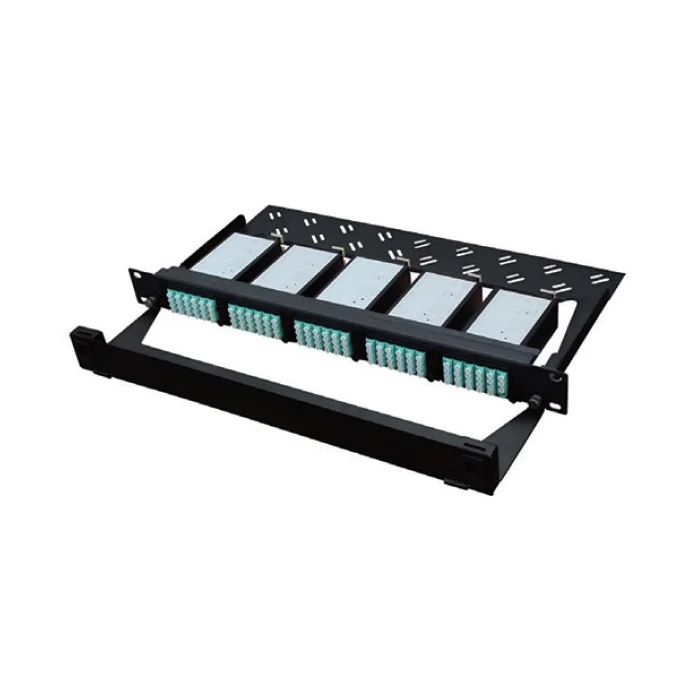

120 Core Ultra HD Fiber Patch Panel 1U with 5 Modular Cassettes
Categories:
Product Highlights:
- Compact 1U fiber patch panel supporting up to 120 cores for high-density applications
- Modular cassette design enables flexible deployment and simplified maintenance
- Optimized structure ensures reliable performance and efficient cable management

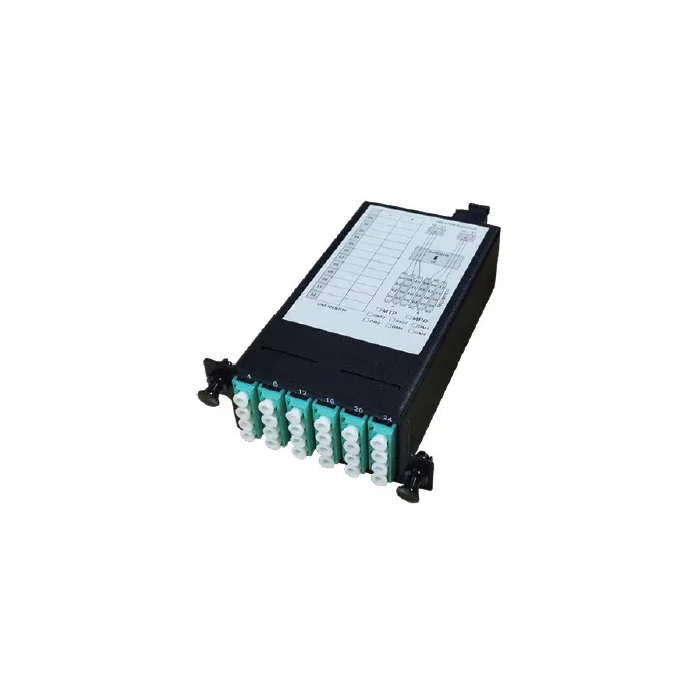

- Compatible Cassette: MPOLC24F6Q
Table of Contents
Description
The Ultra HD 1U Fiber Patch Panel is engineered to deliver high-density fiber connectivity in space-constrained environments. Supporting up to 120 fiber cores within a single 1U rack unit, it provides an efficient solution for optimizing rack space while maintaining organized and accessible fiber management. The integration of 5 modular fiber optic cassettes allows for flexible deployment, supporting both pre-terminated and splicing applications in modern network infrastructures.
Designed for operational efficiency, the panel features a streamlined internal layout that simplifies cable routing and helps maintain proper bend radius control. This contributes to improved signal performance and long-term network reliability. The front-access design ensures convenient installation, inspection, and maintenance, minimizing downtime and improving workflow in high-density deployments.
Constructed with robust materials, the panel ensures durability and stability in demanding environments such as data centers and enterprise networks. Its modular cassette architecture enables quick upgrades and easy reconfiguration, allowing network systems to scale efficiently as bandwidth requirements grow.
HD MPO Panels Features/Size
| SKU | Port of Cassette | Fiber Capacity | Size |
| MPHDF-96LC-1U | 4 | 96 | 430*355*1U |
| MPHDFS-96LC-1U | 4 | 96 | 430*342*1U |
| MPHDF-288LC-3U | 12 | 288 | 430*355*3U |
| MPHDL-96C-1U | 4 | 96 | 430*363*1U |
| MPHDL-196F-2U | 8 | 192 | 430*363*2U |
| MPHDS-96F-1U | 4 | 96 | 430*240*1U |
| FPP-5CA-1U-120F | 5 | 120 | 430*355*1U |
| FPP-12CA-2U-288F | 12 | 288 | 430*335*2U |
| FPP-12M3Q-1U-144F | 12 | 144 | 440*350*1U |
| FPP-24M3Q-2U-288F | 24 | 288 | 440*350*2U |
| FPP-48M3Q-4U-576F | 48 | 576 | 440*350*4U |
Specification
| Product Type | Fiber Patch Panel |
|---|---|
| Rack Unit | 1U |
| Max Fiber Capacity | 120 Cores |
| Cassette Quantity | 5 |
| Cassette Type | Modular Fiber Optic Cassette |
| Supported Connectors | LC / SC / MPO (customizable) |
| Fiber Mode | Single-mode / Multimode |
| Material | Cold-rolled Steel |
| Installation Type | 19-inch Rack Mount |
| Cable Entry | Front & Rear |
| Color | Black (customizable) |
| Operating Temperature | -20°C to +60°C |
Features
- Supports up to 120 fiber cores within 1U rack space
- High-density design for maximizing rack utilization
- 5 modular fiber optic cassettes for flexible configuration
- Supports multiple interfaces such as MPO and LC
- Optimized cable routing for better bend radius management
- Front-access design for easy installation and maintenance
- Durable construction for long-term use
- Scalable solution for future network expansion
Applications
- Data centers and cloud computing environments
- Enterprise network infrastructure
- Fiber distribution frames (FDF)
- Telecommunications systems
- High-density structured cabling projects
- Edge and colocation deployments
FAQs
Q1: What connector types can this panel support?
It supports various connector types such as MPO and LC, depending on the selected cassette modules.
Q2: Can the panel be customized for specific projects?
Yes, the cassette configurations, fiber counts, and connector types can all be customized to meet project requirements.
Q3: Is this panel suitable for high-density data centers?
Yes, its 1U design with 120 cores makes it ideal for high-density environments where space optimization is critical.
Q4: Does it support both pre-terminated and splicing solutions?
Yes, it is compatible with both deployment methods, offering flexibility for different installation needs.
Q5: Do you offer OEM and private labeling services?
Yes, FiberMania provides OEM/ODM and private label services, including custom design, branding, and packaging.
