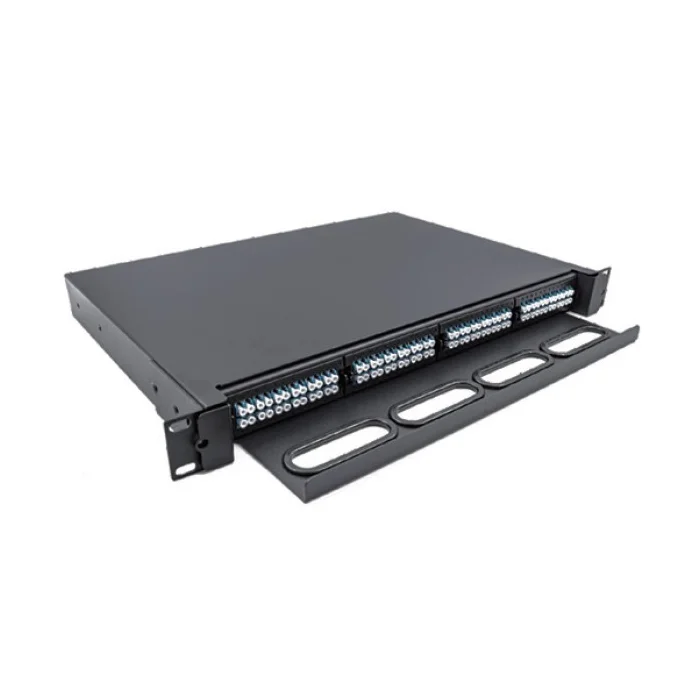

Sliding 1U MPO Patch Panel 96 Fiber with 4 Cassettes | Pull-Out Rack Mount 430×363mm
Categories:
Product Highlights:
- Sliding 1U MPO patch panel supporting up to 96 fibers with 4 cassettes
- Pull-out design enables fast access and simplified maintenance in dense racks
- Compact and efficient solution for high-density fiber management
- Compatible Cassette: MPC1224DSLC
Table of Contents
Description
The sliding 1U MPO patch panel with 96 fiber capacity is designed to provide high-density fiber management with enhanced accessibility for modern data centers and structured cabling systems. Pre-loaded with 4 MPO cassettes, it enables efficient distribution of up to 96 fibers within a compact 1U rack space, supporting scalable and organized network deployments.
Its pull-out sliding tray design is a key advantage, allowing technicians to easily access internal components from the front without removing the panel from the rack. This significantly simplifies installation, inspection, and maintenance tasks, especially in densely populated cabinets where space is limited. The smooth sliding mechanism improves workflow efficiency and reduces the risk of disturbing adjacent connections.
Built with durable materials and precision manufacturing, the panel ensures long-term stability and reliable performance. The internal layout is optimized for structured cable routing, helping maintain neat organization and reducing fiber stress. With dimensions of 430×363×1U, it fits standard 19-inch racks while offering superior usability compared to traditional fixed panels.
HD MPO Panels Features/Size
| SKU | Port of Cassette | Fiber Capacity | Size |
| MPHDF-96LC-1U | 4 | 96 | 430*355*1U |
| MPHDFS-96LC-1U | 4 | 96 | 430*342*1U |
| MPHDF-288LC-3U | 12 | 288 | 430*355*3U |
| MPHDL-96C-1U | 4 | 96 | 430*363*1U |
| MPHDL-196F-2U | 8 | 192 | 430*363*2U |
| MPHDS-96F-1U | 4 | 96 | 430*240*1U |
| FPP-5CA-1U-120F | 5 | 120 | 430*355*1U |
| FPP-12CA-2U-288F | 12 | 288 | 430*335*2U |
| FPP-12M3Q-1U-144F | 12 | 144 | 440*350*1U |
| FPP-24M3Q-2U-288F | 24 | 288 | 440*350*2U |
| FPP-48M3Q-4U-576F | 48 | 576 | 440*350*4U |
Specification
| Rack Unit | 1U |
|---|---|
| Fiber Capacity | 96 Fibers |
| Cassette Quantity | 4 MPO Cassettes |
| Connector Type | MPO to LC / SC |
| Installation Type | 19-inch Rack Mount |
| Dimensions | 430 × 363 × 1U mm |
| Design Feature | Sliding (Pull-Out Tray) |
| Material | Cold-rolled steel |
| Fiber Mode | OS2 / OM3 / OM4 / OM5 |
| Operating Temperature | -20°C to +70°C |
| Application | High-density fiber management |
Features
- Supports up to 96 fiber connections in 1U rack space
- Pre-loaded with 4 MPO cassettes for quick deployment
- Sliding pull-out tray for easy front access
- Improves installation and maintenance efficiency
- Optimized cable management for high-density environments
- Durable construction for long-term reliability
- Compatible with standard 19-inch racks
- Customizable cassette type and adapter configuration
Applications
- High-density data centers
- Structured cabling systems
- Enterprise network infrastructure
- Cloud and hyperscale environments
- Telecom rooms and server racks
- Backbone and aggregation network layers
FAQ
Q1: What is the main advantage of the sliding design?
A: The pull-out sliding tray allows easy access to internal components without removing the panel, greatly simplifying installation and maintenance.
Q2: How many fibers does this panel support?
A: It supports up to 96 fibers within a single 1U rack unit using 4 MPO cassettes.
Q3: Is this panel compatible with standard racks?
A: Yes, it is designed for standard 19-inch rack systems with dimensions of 430×363×1U.
Q4: Can the cassette configuration be customized?
A: Yes, cassette types, adapter interfaces, and port configurations can be customized based on project requirements.
Q5: What environments is this panel best suited for?
A: It is ideal for data centers and high-density network environments where accessibility and efficient cable management are critical.
