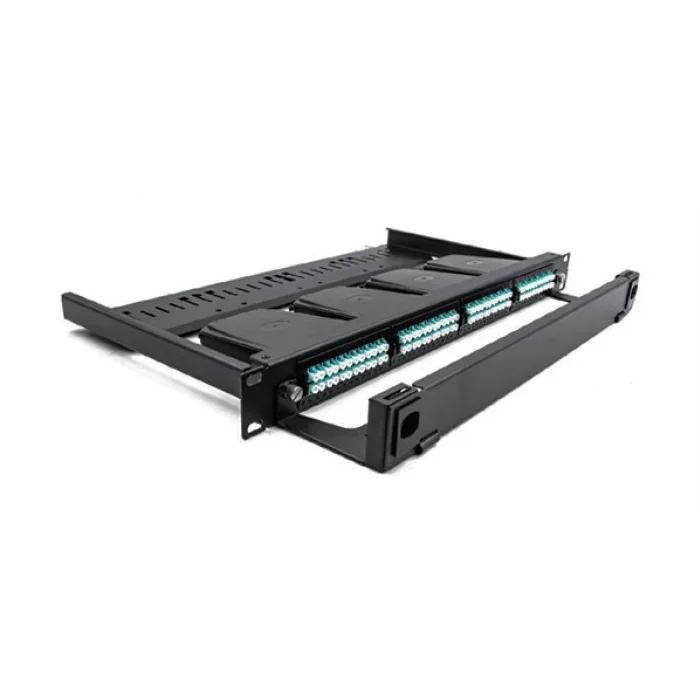

1U MPO Patch Panel 96 Fiber with 4 Cassettes | Compact Rack Mount 430×240mm
Categories:
Product Highlights:
- Compact 1U MPO patch panel supporting up to 96 fibers with 4 cassettes
- Space-saving design ideal for shallow cabinets and simple deployments
- Reliable and cost-effective solution for structured cabling systems
- Compatible Cassette: MPC1224DSLC
Table of Contents
Description
The simple 1U MPO patch panel with 96 fiber capacity is designed as a practical and cost-effective solution for standard fiber management in data centers and network environments. Pre-loaded with 4 MPO cassettes, it supports up to 96 fiber connections within a single 1U rack space, offering efficient and organized connectivity for structured cabling systems.
With its streamlined and compact design, this panel focuses on simplicity and ease of deployment. The reduced depth of 430×240×1U makes it especially suitable for cabinets with limited space, allowing flexible installation without compromising essential functionality. It provides a straightforward solution for managing MPO-based fiber distribution while maintaining clean cable routing and accessibility.
Constructed with durable materials and precise manufacturing, the panel ensures stable performance and long-term reliability. Its simple fixed structure minimizes complexity, making it ideal for applications that require high-density connectivity without additional features such as sliding trays or sealed enclosures.
HD MPO Panels Features/Size
| SKU | Port of Cassette | Fiber Capacity | Size |
| MPHDF-96LC-1U | 4 | 96 | 430*355*1U |
| MPHDFS-96LC-1U | 4 | 96 | 430*342*1U |
| MPHDF-288LC-3U | 12 | 288 | 430*355*3U |
| MPHDL-96C-1U | 4 | 96 | 430*363*1U |
| MPHDL-196F-2U | 8 | 192 | 430*363*2U |
| MPHDS-96F-1U | 4 | 96 | 430*240*1U |
| FPP-5CA-1U-120F | 5 | 120 | 430*355*1U |
| FPP-12CA-2U-288F | 12 | 288 | 430*335*2U |
| FPP-12M3Q-1U-144F | 12 | 144 | 440*350*1U |
| FPP-24M3Q-2U-288F | 24 | 288 | 440*350*2U |
| FPP-48M3Q-4U-576F | 48 | 576 | 440*350*4U |
Specification
| Product Type | Simple MPO Patch Panel |
|---|---|
| Rack Unit | 1U |
| Fiber Capacity | 96 Fibers |
| Cassette Quantity | 4 MPO Cassettes |
| Connector Type | MPO to LC / SC |
| Installation Type | 19-inch Rack Mount |
| Dimensions | 430 × 240 × 1U mm |
| Design Feature | Compact & Fixed Structure |
| Material | Cold-rolled steel |
| Fiber Mode | OS2 / OM3 / OM4 / OM5 |
| Operating Temperature | -20°C to +70°C |
| Application | Standard fiber management |
Features
- Supports up to 96 fiber connections in 1U rack space
- Pre-loaded with 4 MPO cassettes for quick deployment
- Compact depth design (430×240mm) for space-limited cabinets
- Simple fixed structure for easy installation and use
- Efficient cable management for organized routing
- Durable construction for reliable long-term performance
- Compatible with standard 19-inch racks
- Customizable cassette configurations and labeling
Applications
- Standard data center installations
- Structured cabling systems
- Enterprise network infrastructure
- Telecom and server rooms
- Space-constrained rack environments
- Cost-sensitive fiber deployment projects
FAQ
Q1: What makes this panel “simple” compared to other models?
A: It features a fixed, streamlined design without sliding trays or sealed covers, focusing on practicality and cost efficiency.
Q2: How many fibers can this panel support?
A: It supports up to 96 fibers using 4 MPO cassettes within a 1U rack space.
Q3: Is it suitable for limited cabinet depth?
A: Yes, its reduced depth of 430×240mm makes it ideal for installations with space constraints.
Q4: Can the cassette configuration be customized?
A: Yes, cassette types, adapter interfaces, and labeling can be customized for specific project needs.
Q5: What environments is this panel best suited for?
A: It is ideal for standard data center and network setups that require reliable fiber management without complex features.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
