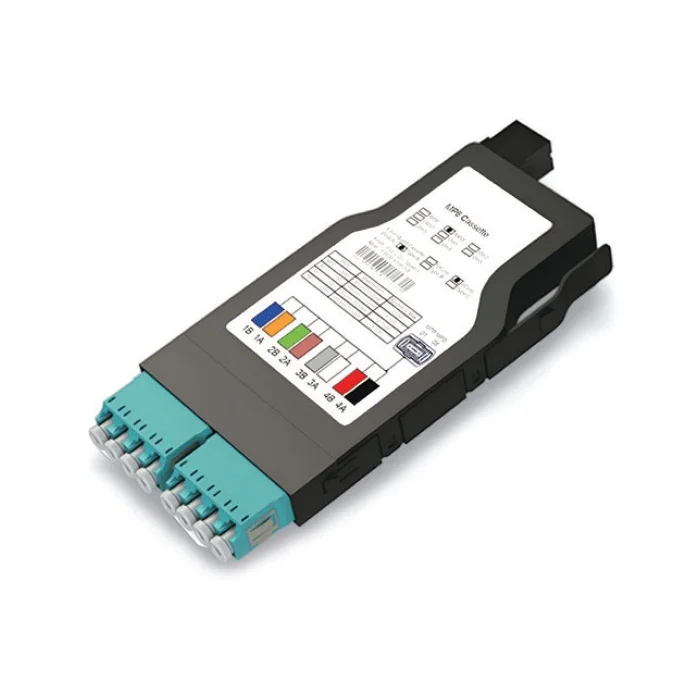

MPO to LC Cassette 8 Core 2 Quad High Density Fiber Module
Categories:
Product Highlights:
- MPO to 8 LC cassette supporting 8 fiber cores in a 2 quad configuration
- High-density modular design for efficient and organized fiber connectivity
- Plug-and-play structure ensures fast deployment and reliable performance
- Compatible Patch Panels: 1U 144-Core: FPP-12M3Q-1U-144F, 2U 288-Core: FPP-24M3Q-2U-288F, 4U 576-Core: FPP-48M3Q-4U-576F
- Pre-terminated Harness: MPNLS-HR224S3YL01
Table of Contents
Description
The MPO to 8 LC Fiber Optic Cassette is designed to provide efficient fiber breakout and high-density connectivity in modern network environments. By converting a single MPO interface into eight LC ports in a 2 quad configuration, this module supports up to 8 fiber cores, enabling a smooth transition from backbone MPO cabling to LC-based equipment interfaces. It is well-suited for structured cabling systems that require organized and scalable fiber distribution.
With its compact and modular design, the cassette allows for fast and hassle-free deployment. The plug-and-play functionality minimizes installation time and reduces the risk of connection errors, making it ideal for both new installations and system upgrades. Its internal fiber management is carefully engineered to maintain proper bend radius, ensuring consistent optical performance and long-term reliability.
Built with precision components and strict quality standards, the cassette delivers low insertion loss and stable signal transmission. It integrates seamlessly into high-density patch panels and enclosures, supporting flexible expansion and simplified maintenance as network demands continue to grow.
Specification
| Product Type | MPO to LC Fiber Cassette |
|---|---|
| Fiber Count | 8 Cores |
| Interface | MPO to LC |
| LC Ports | 8 (2 Quad) |
| Fiber Type | SM / MM (OS2, OM3, OM4, OM5 optional) |
| Connector Type | MPO/MTP to LC |
| Polarity | Type A / B / C (customizable) |
| Insertion Loss | ≤0.35 dB (typical) |
| Return Loss | ≥20 dB (MM) / ≥50 dB (SM) |
| Housing Material | ABS / Metal (optional) |
| Operating Temperature | -20°C to +70°C |
| Application | High-density patch panels |
Features
- Converts 1 MPO interface to 8 LC ports (2 quad, 8 fibers)
- High-density design for efficient fiber management
- Plug-and-play cassette for quick installation
- Low insertion loss for stable optical performance
- Optimized internal routing to maintain bend radius
- Compact modular design for space-saving integration
- Compatible with standard fiber patch panels and enclosures
- Supports single mode and multimode fiber options
Applications
- Data centers and cloud infrastructure
- High-speed network environments
- Enterprise structured cabling systems
- MPO backbone to LC connectivity conversion
- Fiber distribution frames (FDF)
- Telecommunications networks
FAQs
Q1: What is the main function of this MPO to LC cassette?
It converts a single MPO connection into multiple LC ports, enabling efficient fiber distribution to network devices.
Q2: What does 2 quad LC mean?
It refers to two quad LC adapters, each containing four LC ports, totaling eight LC connections.
Q3: Is this cassette suitable for high-density environments?
Yes, its compact design and efficient port configuration make it ideal for high-density data center deployments.
Q4: Can it support both single mode and multimode fibers?
Yes, the cassette can be configured for either fiber type based on project requirements.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
