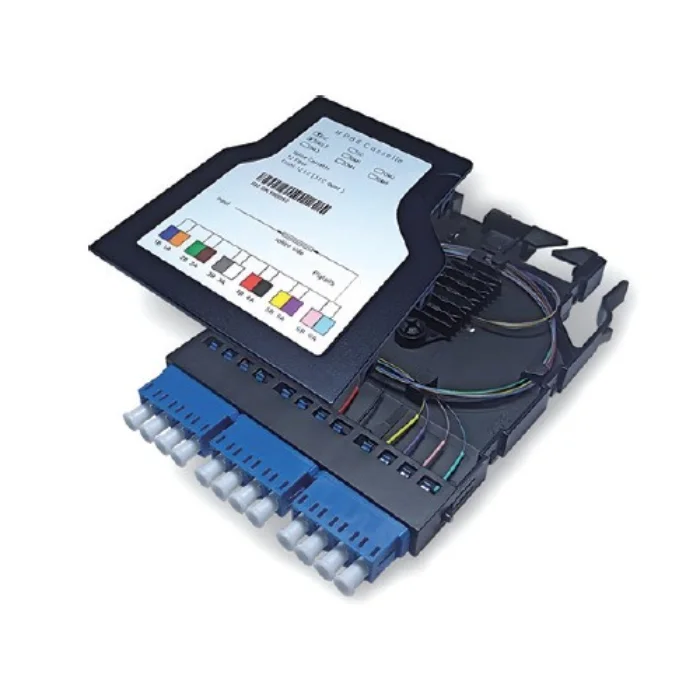

HD MPO Splicing Cassette 12 Core 3 Quad LC Pre Terminated Cable Module
Categories:
Product Highlights:
- HD MPO splicing cassette V2 supporting 12 cores with integrated LC breakout
- 3 quad LC adapters with pre-terminated cables for faster, more consistent installation
- Combines splicing, protection, and distribution in a compact high-density module
- Pre-terminated Harness: MPNLS-HR224S3YL01
Table of Contents
Description
The HD MPO Splicing Cassette is engineered to deliver an advanced high-density fiber management solution that combines splicing functionality with LC connectivity in a single modular unit. Supporting 12 fiber cores, it integrates 3 quad LC adapters with pre-terminated internal cables, enabling a streamlined transition between spliced backbone fibers and LC distribution ports. This design significantly reduces on-site installation effort while improving deployment efficiency in structured cabling systems.
As an upgraded version, the cassette retains a standardized HD form factor for seamless compatibility with high-density patch panels and enclosures. Its internal architecture is optimized to combine splice protection and organized LC breakout routing, ensuring stable optical performance and clean fiber management. The pre-terminated structure enhances consistency, reducing variability in field installations and improving overall network reliability.
Designed for modern data centers and enterprise environments, this module supports efficient fiber expansion and upgrades. It delivers a balance of flexibility, performance, and ease of installation, making it suitable for both greenfield deployments and retrofit projects where speed and reliability are critical.
Specification
| Product Type | MPO Splicing Cassette (V2) |
|---|---|
| Fiber Count | 12 Cores |
| LC Ports | 12 (3 Quad) |
| Adapter Type | LC (UPC / APC optional) |
| Internal Cable | Pre-terminated |
| Splicing Type | Fusion Splicing |
| Fiber Type | SM / MM (OS2, OM3, OM4, OM5 optional) |
| Connector Compatibility | MPO/MTP and LC |
| Housing Material | ABS / Metal (optional) |
| Installation | Modular Cassette Slot |
| Application | Fiber splicing and distribution |
| Operating Temperature | -20°C to +70°C |
Features
- Supports 12 fiber cores with integrated splicing and breakout
- 3 quad LC adapters providing 12 LC ports
- Pre-terminated internal cables for faster installation
- Upgraded V2 design for improved consistency and reliability
- Combines splice protection and LC distribution in one module
- High-density cassette form factor for space efficiency
- Optimized internal routing for bend radius protection
- Compatible with standard HD patch panels and enclosures
- Low insertion loss and stable optical performance
Applications
- Data centers and cloud infrastructure
- Enterprise structured cabling systems
- Fiber splicing and distribution nodes
- MPO backbone to LC access networks
- Network upgrades and retrofit projects
- Telecommunications environments
FAQs
Q1: What improvements does the V2 version offer?
The V2 version improves installation efficiency and consistency through enhanced pre-terminated internal cabling and optimized internal layout.
Q2: What does pre-terminated mean in this cassette?
It means the internal fibers are factory-terminated, reducing field termination work and ensuring more consistent performance.
Q3: How many LC ports are available?
It provides 12 LC ports using 3 quad LC adapters.
Q4: Can this cassette be used in existing patch panels?
Yes, it is designed to be fully compatible with standard high-density cassette-based patch panels.
MPO/MTP Cassettes Selection Guide Table
| SKU | Front Interface | Rear Interface | Mode | Pre-loaded Adapter | Pre-terminated Harness | Panel Format | Mounting Type |
| CMTC24LCDSL | 12 LC Duplex | 24F 2 Ports MTP Male | OS2 | Yes | Yes/No | CCH | Screw Mount |
| HMP12C3QLC | 3 Quad LC | MPO | Yes | Yes | HD OEM | Snap-in OEM | |
| HMP6MP3D | 6 MPO | 2 MPO | Yes | No | HD OEM | Snap-in OEM | |
| MP24LC6Q | 24F 6 Quad LC | MPO | Yes | Yes/No | HD OEM | Snap-in OEM | |
| MPC1224DSLC | 12/24F 6/12 Duplex LC | MPO | Yes | Yes | FHD | Snap-in | |
| MTC12LCD5L | 12F 6 Duplex LC | MTP | OM5 | Yes | Yes/No | LGX | Screw Mount |
| MTC12LCDBK | 12 SC Simplex | MTP | No | No | LGX | Screw Mount | |
| MTC12STSL | 12 ST Simplex | MTP Male | SM | Yes | Yes/No | LGX | Screw Mount |
| MTC24LCQ3L | 24F 6 Quad LC | MTP Male | OM3 | Yes | Yes/No | LGX | Screw Mount |
| MTC24LCQ4L | 24F 6 Quad LC | MTP Male | OM4 | Yes | Yes/No | LGX | Screw Mount |
| MTCHD24LCQ3L | 24F 6 Quad LC | 2 MTP Male | OM3 | Yes | Yes/No | FHD | Snap-in |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
