MPO to LC/SC Harness Patch Cord 2–24 Core | MPO Cassette Hybrid Breakout Cable
Categories:
Product Highlights:

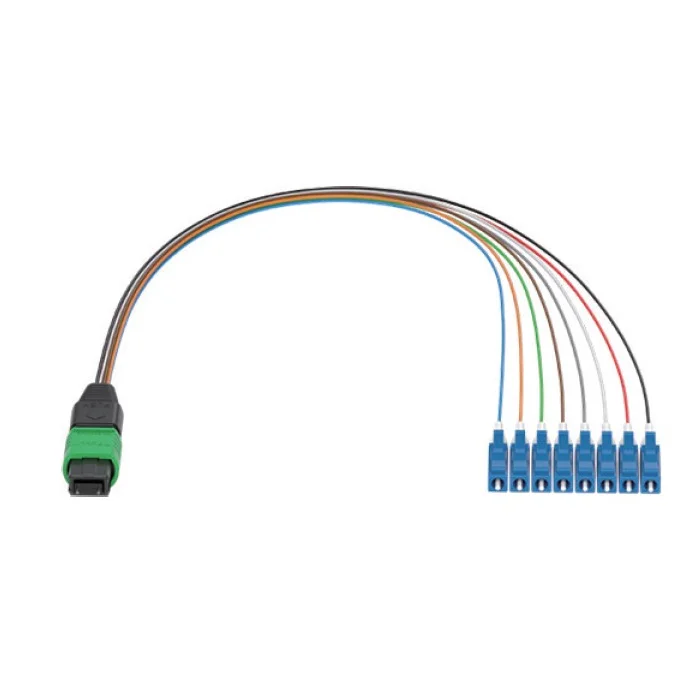

- Compact MPO to LC/SC harness cable supporting 2–24 fiber breakout
- Designed for internal MPO cassette use with optimized cable routing
- Ensures reliable performance for high-density fiber applications
- Compatible Cassettes: MPC1224DSLC,
Table of Contents
Description

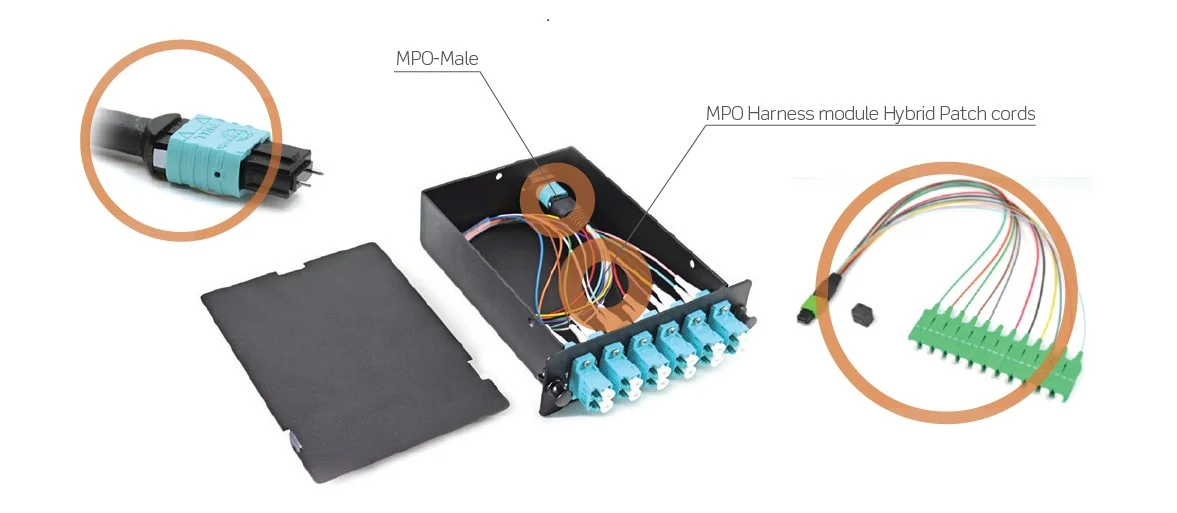

The MPO to LC/SC harness patch cord is a compact hybrid breakout solution specifically designed for internal use within MPO cassette systems. It converts a single MPO connector into multiple standard fiber interfaces such as LC or SC, supporting configurations from 2 to 24 cores. This enables efficient fiber distribution in high-density modular cabling environments while maintaining a clean and organized internal structure.
Engineered with a short breakout length and small-diameter fanout fibers, typically 0.9mm, the cable is optimized for space-constrained cassette interiors. Its compact design allows for easy routing and improved cable management, reducing congestion and enhancing airflow within the enclosure. The MPO connector is male by default, ensuring seamless plug-in compatibility with MPO cassette modules and enabling quick, error-free installation.
Manufactured with precision and high-quality components, this harness patch cord delivers reliable optical performance with low insertion loss and stable signal transmission. It supports both singlemode and multimode fiber types, making it suitable for a wide range of high-speed network applications where flexibility and density are critical.

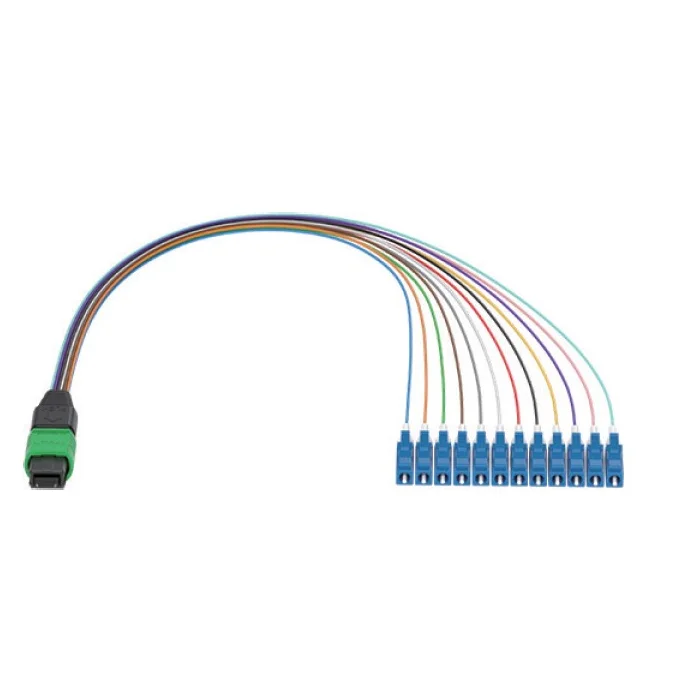

MPO 12 Core Harness Patch Cord Size

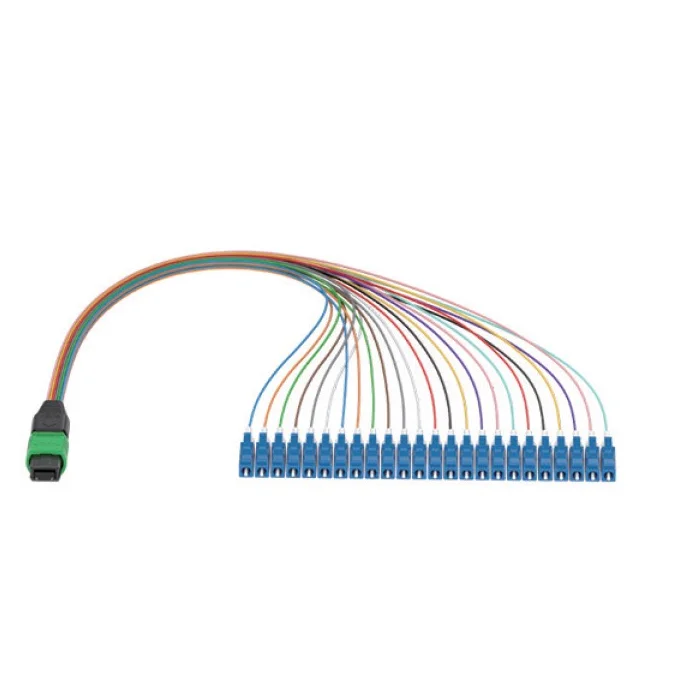

MPO 24 Core Harness Patch Cord Size
MPO Harness Patch Cord Information Features
Specification
| Product Type | MPO Harness Module Hybrid Patch Cord |
|---|---|
| Connector Type | MPO (Male) to LC / SC / FC / ST |
| Fiber Count | 2–24 Cores |
| Fiber Mode | OS2 / OM3 / OM4 / OM5 |
| Fanout Diameter | φ0.9mm |
| Cable Length | Customizable (Short length for cassette use) |
| Application Scope | MPO Cassette Internal Wiring |
| Polarity | Type A / Type B / Type C |
| Cable Jacket | LSZH / PVC |
| Insertion Loss | ≤ 0.35dB (MPO), ≤ 0.2dB (LC/SC) |
| Return Loss | ≥ 60dB (SM) / ≥ 20dB (MM) |
| Operating Temperature | -20°C to +70°C |
Features
- Supports 2 to 24 fiber breakout configurations
- Converts MPO interface to LC, SC, or other standard connectors
- Compact design optimized for MPO cassette internal use
- 0.9mm fanout fibers for improved cable management
- Short breakout length reduces clutter inside modules
- Male MPO connector for direct cassette plug-in
- Available in singlemode and multimode options
- Customizable connector types, fiber count, and cable length
Applications
- MPO cassette internal connectivity
- High-density data center cabling
- Structured cabling systems
- Fiber distribution within patch panels
- Cloud and enterprise network environments
- High-speed optical network deployments
FAQ
Q1: What is the main function of an MPO harness patch cord?
A: It breaks out a single MPO connector into multiple standard connectors like LC or SC, enabling flexible fiber distribution within high-density systems.
Q2: Why is this cable designed with a short breakout length?
A: The short breakout design improves cable management inside MPO cassettes, reducing clutter and making installation easier.
Q3: Is the MPO connector male or female?
A: By default, the MPO connector is male, allowing direct connection to MPO cassette modules without additional adapters.
Q4: Can this harness cable be customized?
A: Yes, it can be customized in terms of fiber count, connector types, fiber type (SM/MM), and cable length to meet specific project requirements.
Q5: What environments is this cable best suited for?
A: It is ideal for data centers and structured cabling systems that require high-density, modular fiber connectivity.
MPO/MTP Assemblies Selection Guide Table
| SKU | Fiber Count | Connector A | Connector B | Fiber Mode | Cable Structure | Features | Length | Color |
| FP-12MAMSM9-0.15 | 12 | MPO/APC Male | Non | OS2 Single Mode | Ribbon Pigtail | Bare Fiber | 0.15M | NA |
| MAFLA-SM12S3RYL01 | 12 | MTP/APC Female | 12 * LC/APC Simplex | OS2 Single Mode | Fanout | 1M | Yellow | |
| MAFSA-SM12S3RYL01 | 12 | MTP/APC Female | 12 SC/APC Simplex | OS2 Single Mode | Fanout | 1M | Yellow | |
| MAMLC-SM24F9C01 | 24 | MTP/APC Male | 24 * LC/UPC | OS2 Single Mode | Fanout Boot | 24 Bare Fiber | 1M | Yellow |
| MAMLCD-SM8F9C0.3 | 8 | MPO/APC Male | 4 LC/UPC Duplex | OS2 Single Mode | Harness Fanout | Hytrel | 0.3M | |
| MPFLC-M112M3ROR01 | 12 | MTP Female | 12 LC Simplex | OM1 | Fanout | 1M | Orange | |
| MPFLC-M312M3RAQ01 | 12 | MTP Female | 12 * LC Simplex | OM3 | Fanout | 1M | Aqua | |
| MPFLCUP-M48M3RMG01 | 8 | MTP Feamle | 4 * LC Duplex | OM4 | Fanout | Pull Tab | 1M | Violet |
| MPM3MPF-M424M3RMG05 | 24 | MPO Male | 3 * MPO Female 8-F | OM4 | Fanout | 5M | Violet | |
| MPMLC-M312F9C0.3 | 12 | MTP Male | 12 * LC UPC | OM3 | Harness Fanout | Hytrel | 0.3M | |
| MPMLC-M412F9C | 12 | MTP Male | 12 * LC | OM4 | Harness Fanout | Hytrel | 0.3M | Magenta |
| MPMLC-M48M3RMG15 | 8 | MTP Male | 4 * LC Duplex | OM4 | Fanout | 3M | Violet |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
