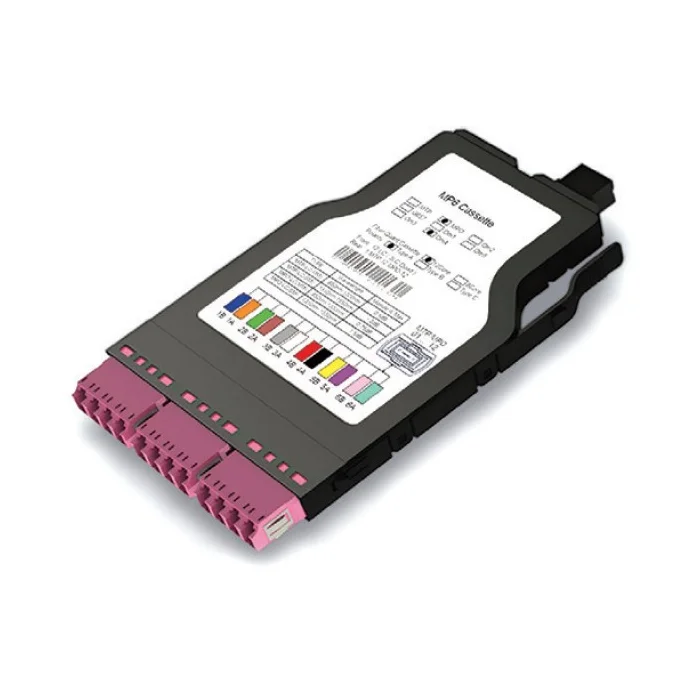

MPO to LC Cassette 12 Fiber 3 Quad High Density Module
Categories:
Product Highlights:
- MPO to 12 LC cassette supporting 12 fibers in a 3 quad configuration
- High-density modular design for organized and scalable fiber connectivity
- Low loss, plug-and-play structure ensures fast deployment and stable performance
- Compatible Patch Panels: 1U 144-Core: FPP-12M3Q-1U-144F, 2U 288-Core: FPP-24M3Q-2U-288F, 4U 576-Core: FPP-48M3Q-4U-576F
- Pre-terminated Harness: MPNLS-HR224S3YL01
Table of Contents
Description
The MPO to 12 LC Fiber Optic Cassette is engineered to deliver high-density fiber breakout and efficient connectivity in modern network infrastructures. By converting a single MPO interface into twelve LC ports in a 3 quad configuration, this module supports 12 fiber cores and enables seamless transition from high-capacity backbone cabling to LC-based equipment interfaces. It is an ideal solution for structured cabling systems that require scalable and organized fiber distribution.
Designed with a compact and modular form factor, the cassette allows for quick deployment and straightforward integration into standard fiber patch panels and enclosures. Its plug-and-play design reduces installation time and minimizes operational complexity, making it suitable for both new installations and network expansions. The internal fiber routing is optimized to maintain proper bend radius, ensuring stable optical performance and long-term reliability.
Manufactured with precision components and strict quality standards, the cassette delivers low insertion loss and consistent signal transmission. The 3 quad LC arrangement enhances port organization and accessibility, improving cable management efficiency in high-density environments.
Specification
| Fiber Count | 12 Fibers |
|---|---|
| Interface | MPO to LC |
| LC Ports | 12 (3 Quad) |
| Fiber Type | SM / MM (OS2, OM3, OM4, OM5 optional) |
| Connector Type | MPO/MTP to LC |
| Polarity | Type A / B / C (customizable) |
| Insertion Loss | ≤0.35 dB (typical) |
| Return Loss | ≥20 dB (MM) / ≥50 dB (SM) |
| Housing Material | ABS / Metal (optional) |
| Operating Temperature | -20°C to +70°C |
Features
- Converts 1 MPO interface to 12 LC ports (3 quad, 12 fibers)
- High-density design for efficient fiber breakout
- Plug-and-play module for fast and easy installation
- Low insertion loss for reliable optical performance
- Optimized internal routing to protect fiber bend radius
- 3 quad LC configuration for organized port management
- Compact cassette for space-saving integration
- Compatible with standard patch panels and enclosures
- Supports single mode and multimode fiber applications
Applications
- Data centers and cloud infrastructure
- Enterprise structured cabling systems
- High-speed network environments
- MPO backbone to LC distribution conversion
- Fiber distribution frames (FDF)
- Telecommunications networks
FAQs
Q1: What is the purpose of this MPO to LC cassette?
It converts a single MPO connection into 12 LC ports, enabling efficient fiber distribution to multiple devices.
Q2: What does 3 quad LC configuration mean?
It refers to three quad LC adapters, each providing four LC ports, totaling twelve LC connections.
Q3: Is this cassette suitable for high-density deployments?
Yes, its compact design and high port count make it ideal for space-constrained, high-density environments.
Q4: Can it support different fiber types?
Yes, it can be configured for both single mode and multimode fiber applications.
MPO/MTP Cassettes Selection Guide Table
| SKU | Front Interface | Rear Interface | Mode | Pre-loaded Adapter | Pre-terminated Harness | Panel Format | Mounting Type |
| CMTC24LCDSL | 12 LC Duplex | 24F 2 Ports MTP Male | OS2 | Yes | Yes/No | CCH | Screw Mount |
| HMP12C3QLC | 3 Quad LC | MPO | Yes | Yes | HD OEM | Snap-in OEM | |
| HMP6MP3D | 6 MPO | 2 MPO | Yes | No | HD OEM | Snap-in OEM | |
| MP24LC6Q | 24F 6 Quad LC | MPO | Yes | Yes/No | HD OEM | Snap-in OEM | |
| MPC1224DSLC | 12/24F 6/12 Duplex LC | MPO | Yes | Yes | FHD | Snap-in | |
| MTC12LCD5L | 12F 6 Duplex LC | MTP | OM5 | Yes | Yes/No | LGX | Screw Mount |
| MTC12LCDBK | 12 SC Simplex | MTP | No | No | LGX | Screw Mount | |
| MTC12STSL | 12 ST Simplex | MTP Male | SM | Yes | Yes/No | LGX | Screw Mount |
| MTC24LCQ3L | 24F 6 Quad LC | MTP Male | OM3 | Yes | Yes/No | LGX | Screw Mount |
| MTC24LCQ4L | 24F 6 Quad LC | MTP Male | OM4 | Yes | Yes/No | LGX | Screw Mount |
| MTCHD24LCQ3L | 24F 6 Quad LC | 2 MTP Male | OM3 | Yes | Yes/No | FHD | Snap-in |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
