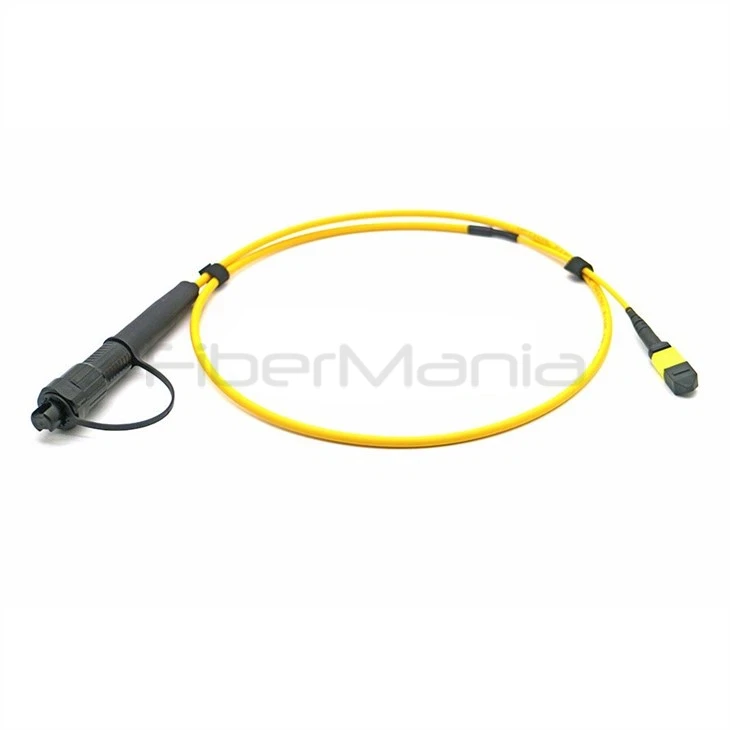

Outdoor MPO/MTP IP67 FastConnect 12F Fiber Optic Distribution Patch Cable Assembly
Categories:
Product Highlights:
- 12-fiber high-density MPO/MTP connectivity
- IP67 protection for outdoor deployment
- FastConnect design with pulling eye
- Flexible MPO, LC, or SC breakout options
- Ideal for FTTA and FTTx networks
Table of Contents
Description
The Outdoor MPO/MTP IP67 FastConnect fiber optic patch cable assembly is a high-density solution designed for FTTA and FTTx distribution networks requiring fast deployment and reliable multi-fiber connectivity. Equipped with a rugged FastConnect MPO connector and an integrated pulling eye, it allows easy installation through ducts and tight pathways while maintaining strong mechanical protection. Supporting up to 12 fibers in a single interface, it significantly reduces cabling complexity and improves scalability. Built with G657A1/A2 bend-insensitive fiber and IP67-rated protection, the cable ensures stable optical performance in harsh outdoor environments, with flexible breakout options including MPO, LC, or SC to meet different deployment needs.
Specification
| Fiber Count | 12 Fiber |
|---|---|
| Fiber Type | G657A1 / G657A2 Single Mode |
| Connector Type | MPO/MTP IP67 FastConnect |
| Cable Diameter | 5.0mm Flat or Round |
| Cable Structure | Outdoor Drop / Distribution Cable |
| Jacket Material | LSZH / HDPE |
| Jacket Color | Yellow / Black |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 60 dB |
| Pulling Strength | ≥ 100 N (junction) |
| Operating Temperature | -20°C to +70°C |
Features
- High-density MPO/MTP connector supporting up to 12 fibers
- IP67-rated waterproof and dustproof protection
- FastConnect design for quick and efficient installation
- Integrated pulling eye for easy cable routing
- G657A1/A2 bend-insensitive fiber for flexible deployment
- Rugged construction for outdoor environments
- Multiple breakout options: MPO, LC, or SC
- Custom fiber count, connector type, and cable structure available
Applications
- FTTA (Fiber to the Antenna) networks
- FTTx distribution and backbone connections
- Outdoor telecom infrastructure
- Data center to outdoor network interconnections
- High-density fiber deployment scenarios
- Broadband and wireless network expansion
FAQ
Q1: What is the advantage of MPO/MTP connectors in this cable?
A1: MPO/MTP connectors support multiple fibers in a single interface, reducing cable bulk and enabling high-density, scalable network deployment.
Q2: Is this cable suitable for outdoor environments?
A2: Yes, it features IP67 protection and a ruggedized design, ensuring reliable performance in harsh outdoor conditions.
Q3: What breakout options are available?
A3: The cable can be customized with MPO, LC, or SC breakout connectors depending on the application requirements.
Q4: What type of fiber is used in this assembly?
A4: It uses G657A1 or G657A2 bend-insensitive single-mode fiber for improved flexibility and stable transmission.
Q5: Can this product be customized?
A5: Yes, OEM customization is available for connector types, fiber count, cable length, and breakout configurations.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
