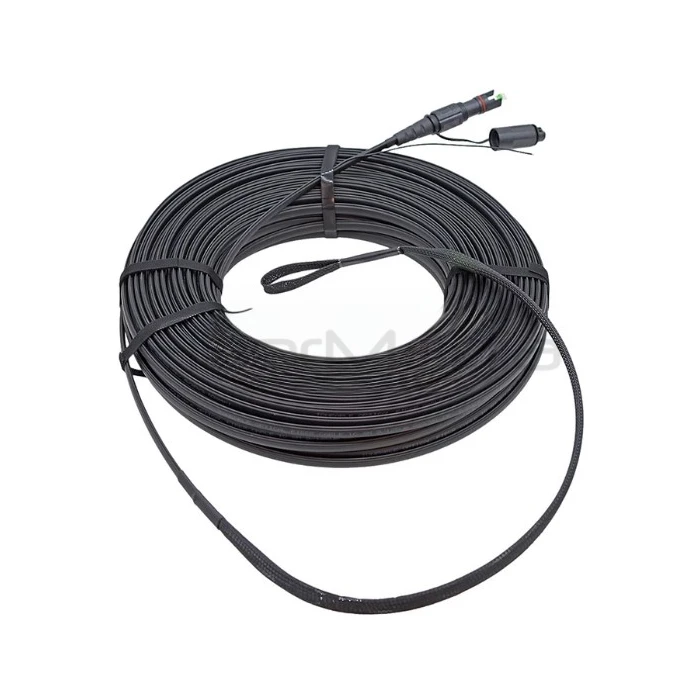

SuperTap Flat Drop Assembly with Pulling Eye SST Toneable Outdoor Fiber Cable SC/APC
Categories:
Product Highlights:
- SuperTap SC/APC hardened connector
- SST toneable drop cable design
- Pulling eye for easy installation
- Outdoor rugged and weatherproof
- Ideal for FTTH deployment
Table of Contents
Description
The SuperTap SST Toneable Flat Drop Fiber Assembly with Pulling Eye is a rugged, factory-terminated FTTH solution designed for fast and reliable outdoor deployment. Equipped with a hardened SC/APC connector in a sealed threaded housing, it ensures secure, weather-resistant connectivity with multiport service terminals, inline receptacles, and H-connector compatible systems. Supporting both flat drop and round outdoor cables, it offers excellent flexibility for various installation environments. The integrated toneable wire enables easy cable identification, while the pulling eye simplifies installation in conduit, aerial, and direct-buried applications, reducing labor effort and improving deployment efficiency. Available in multiple lengths and customizable configurations, it is ideal for modern FTTx network requirements.
Specification
| Connector Type | SC/APC Hardened / OptiTap Compatible |
|---|---|
| Cable Type | SST Toneable / Dielectric |

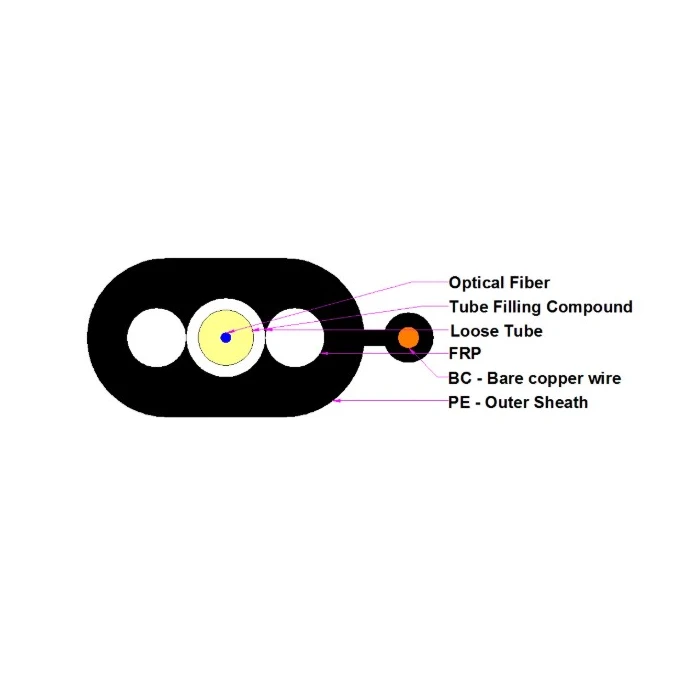

| Cable Structure | Flat Drop (4.5 × 9.8 mm) |
| Fiber Type | Single Mode OS2 9/125µm |
| Protection Rating | IP68 |
| Operating Temperature | -40°C to +85°C |
| Installation Type | Aerial / Direct Burial / Duct |
| Pulling Feature | Integrated Pulling Eye |
| Compatibility | H-Connector / Multiport Terminal |
Features
- Hardened SC/APC connector with sealed threaded housing
- SST toneable cable for easy route identification
- Integrated pulling eye for simplified installation
- Suitable for flat drop and round OSP cable designs
- Weather-resistant and rugged for outdoor environments
- Plug-and-play connectivity with no field termination
- Available in multiple lengths and custom configurations
Applications
- FTTH and FTTx access networks
- Aerial, duct, and direct-buried installations
- Connection to MSTs and hardened terminals
- Outdoor fiber distribution and last-mile access
- Rapid deployment fiber projects
FAQ
Q1: What is the purpose of the toneable feature?
A1: The toneable wire allows technicians to trace and identify the cable path easily during installation and maintenance.
Q2: How does the pulling eye benefit installation?
A2: The pulling eye enables smooth cable routing through ducts and conduits, reducing installation time and effort.
Q3: Is this assembly compatible with standard MST terminals?
A3: Yes, it is designed for use with SuperTap and H-connector compatible multiport terminals and receptacles.
Q4: Can the cable be used in underground installations?
A4: Yes, it is suitable for direct-buried, duct, and aerial installations with strong environmental protection.
Q5: Are custom lengths and configurations available?
A5: Yes, the product supports OEM customization including length, cable type, and connector configuration.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
