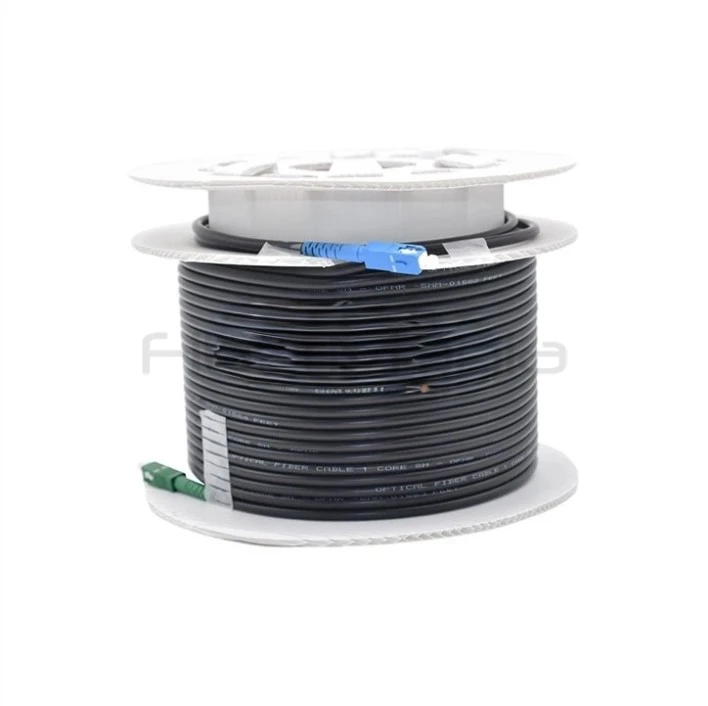

1-Core Ruggedized 4.8mm SC/APC to SC/UPC Single Mode Fiber Patch Cable 150ft
Categories:
Product Highlights:
- Rugged 4.8mm jacket for harsh environments
- SC/APC to SC/UPC low-loss connectivity
- G.657 fiber with excellent bend performance
- Suitable for indoor and outdoor use
- Custom length and OEM options available
Table of Contents
Description
This 1-core ruggedized fiber patch cable is a durable and high-performance solution designed for FTTH and outdoor fiber connectivity applications. Equipped with SC/APC to SC/UPC connectors, it ensures stable, low-loss optical transmission and reliable signal performance. The 4.8mm ruggedized outer jacket provides enhanced mechanical strength, UV resistance, and environmental protection, making it suitable for both indoor riser and outdoor OSP deployments. Built with G.657 single-mode fiber, the cable delivers excellent bend resistance and consistent performance even in tight installation spaces, while the reinforced connector transition enhances durability and long-term reliability.
Specification
| Fiber Count | 1 Core (Simplex) |
|---|---|
| Fiber Type | Single Mode G657-compatible 9/125µm |
| Connector Type | SC/APC to SC/UPC |
| Cable Diameter | 4.8mm (optional 2.0mm / 3.0mm) |
| Cable Type | Ruggedized Drop / Riser Cable |
| Jacket Material | UV-resistant PE/LSZH |
| Cable Length | 150 ft (customizable) |
| Insertion Loss | ≤ 0.2 dB (max), < 0.15 dB typical |
| Return Loss | ≥ 55–60 dB depending on connector type |
| Operating Temperature | -40°C to +70°C |
Features
- SC/APC to SC/UPC connectors for stable low-loss transmission
- 4.8mm ruggedized jacket for superior mechanical protection
- UV-resistant and weatherproof design for outdoor use
- G.657 single-mode fiber with excellent bend performance
- Reinforced connector transition for enhanced durability
- Suitable for indoor and outdoor installations
- Custom lengths and multiple jacket options available
- OEM and ODM customization supported
Applications
- FTTH fiber optic connections
- Outdoor OSP deployments
- Indoor riser and building cabling
- Fiber distribution and drop connections
- Telecom and broadband networks
- Data communication infrastructure
FAQ
Q1: What is the difference between SC/APC and SC/UPC connectors?
A1: SC/APC connectors have an angled end face for lower return loss, while SC/UPC connectors have a flat polish. This combination is often used to optimize signal performance in specific network setups.
Q2: Is this cable suitable for outdoor installation?
A2: Yes, the 4.8mm ruggedized jacket provides strong protection against UV, moisture, and mechanical stress, making it ideal for outdoor environments.
Q3: What fiber type is used in this cable?
A3: It uses G.657 single-mode fiber, which offers improved bend resistance and stable transmission performance.
Q4: Can the cable length be customized?
A4: Yes, custom lengths are available to meet different project requirements.
Q5: Are there other jacket options available?
A5: Yes, in addition to the 4.8mm ruggedized version, 2.0mm and 3.0mm jacket options are also available for different installation needs.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
