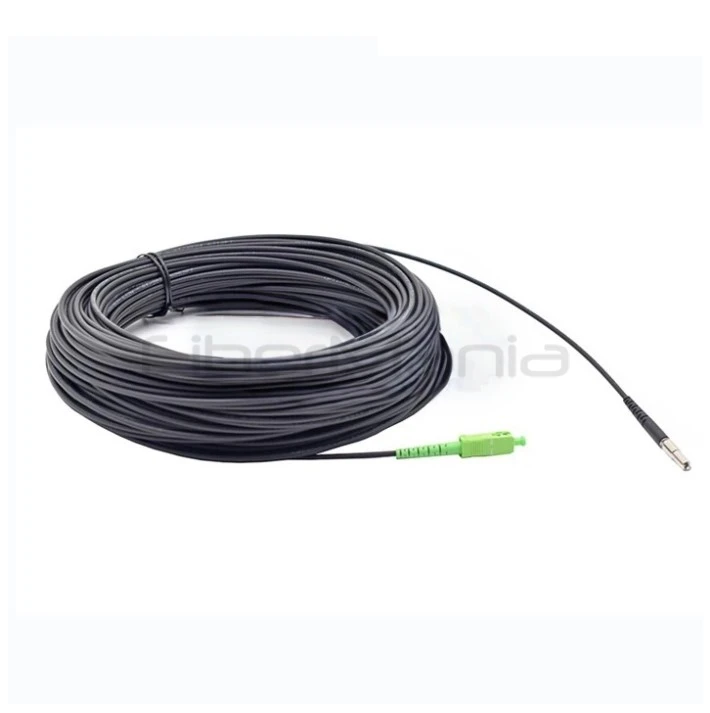

Pushable Bullet Head SC/APC FTTH Drop Cable Assembly 100ft Outdoor
Categories:
Product Highlights:
- Pushable bullet head for easy installation
- SC/APC pre-terminated connector
- No pulling tools required
- Durable outdoor drop cable
- Ideal for FTTH routing through ducts
Table of Contents
Description
The pushable bullet head SC/APC FTTH drop cable assembly is an innovative solution designed to simplify fiber installation in FTTx deployments. One end is pre-terminated with a standard SC/APC connector, while the other end features a bullet-shaped pushable guiding head that allows smooth insertion through walls, microducts, and narrow conduits without the need for pulling tools. Built with a durable outdoor-rated black drop cable, it provides strong mechanical protection and reliable performance in various environments. This design significantly improves installation efficiency, reduces labor effort, and lowers overall deployment costs, making it ideal for connecting outdoor access points to indoor premises.
Specification
| Connector A | SC/APC Simplex |
|---|---|
| Connector B | Bullet Pushable Head (No Connector) |
| Fiber Type | Single Mode OS2 9/125µm |
| Installation Method | Pushable |
| Cable Length | 100 ft |
| Jacket Material | Outdoor UV-resistant |
Features
- Bullet-shaped pushable head for easy cable routing
- SC/APC connector for low-loss optical performance
- Tool-free installation through ducts and walls
- Durable outdoor drop cable with high mechanical strength
- Smooth insertion reduces risk of cable damage
- Pre-terminated for fast deployment
- Custom length and configuration available
- Suitable for indoor and outdoor use
Applications
- FTTH drop cable installations
- Routing fiber through walls and conduits
- Microduct and tight pathway deployment
- Residential and commercial broadband access
- Outdoor-to-indoor fiber connections
- Telecom and access network projects
FAQ
Q1: What is the purpose of the bullet head design?
A1: The bullet-shaped head allows the cable to be easily pushed through tight spaces like ducts and walls without needing pulling tools, improving installation efficiency.
Q2: Does this cable require field termination?
A2: No, it is pre-terminated with an SC/APC connector, enabling quick plug-and-play installation.
Q3: Is this cable suitable for outdoor use?
A3: Yes, it uses a rugged outdoor-rated drop cable with strong resistance to environmental conditions.
Q4: Can the cable length be customized?
A4: Yes, custom lengths and configurations are available to meet different project requirements.
Q5: Will the pushable design damage the fiber?
A5: No, the design ensures smooth routing and reduces stress on the fiber, maintaining stable performance during installation.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
