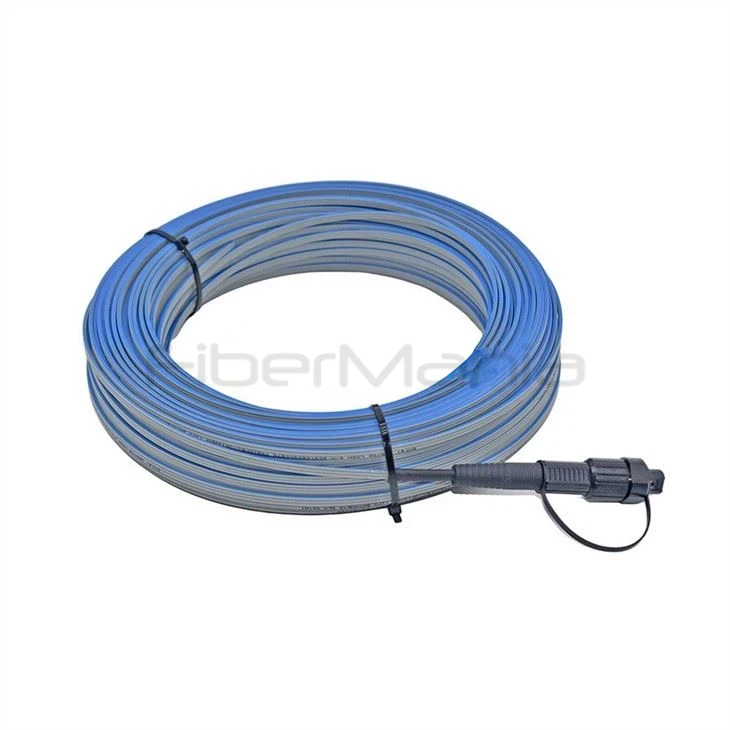

Mini SC/APC Waterproof IP67/68 FastConnect FTTA Fiber Drop Cable Assembly G657A1
Categories:
Product Highlights:
- Mini hardened SC/APC connector design
- IP67/IP68 waterproof outdoor protection
- Plug-and-play FTTA/FTTH installation
- G657A1 fiber with low loss and high flexibility
- OEM customization supported
Table of Contents
Description
The Mini SC/APC Waterproof FastConnect fiber drop cable is a compact and high-reliability solution designed for FTTA and FTTx outdoor deployments. Featuring a miniaturized hardened connector compatible with standard SC/APC interfaces, it enables quick and secure plug-and-play installation without the need for field splicing. With IP67/IP68-rated protection, the assembly ensures stable optical performance in harsh environments such as rain, dust, UV exposure, and extreme temperatures. Built with G657A1 single-mode fiber, it offers excellent bend resistance and low attenuation, making it ideal for flexible routing in aerial, duct, and direct connection scenarios.
Specification
| Connector Type | Mini SC/APC (Connector A), None or SC optional (Connector B) |
|---|---|
| Fiber Type | Single Mode G657A1 9/125µm |
| Fiber Count | Simplex (1 Core) |
| Cable Diameter | 2.0×5.0mm / 3.0mm / 4.0mm / 5.0mm / 7.0mm |
| Cable Structure | Flat Drop or Round Cable |
| Jacket Material | LSZH / HDPE |
| Jacket Color | Gray / Yellow / Black |
| Protection Rating | IP67 / IP68 |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 60 dB |
| Tensile Strength | ≥ 100 N (junction) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -20°C to +70°C |
Features
- Mini SC/APC hardened connector with compact design
- IP67/IP68 waterproof and dustproof protection
- Plug-and-play installation without field splicing
- G657A1 single-mode fiber with excellent bend performance
- Rugged construction for harsh outdoor environments
- Compatible with standard SC/APC interfaces
- Suitable for aerial, duct, and direct deployment
- Custom cable types, lengths, and branding available
Applications
- FTTA (Fiber to the Antenna) deployments
- FTTH outdoor drop cable connections
- Telecom base stations and wireless networks
- Outdoor fiber distribution systems
- Broadband network expansion projects
- Harsh environment fiber connectivity
FAQ
Q1: Is this connector compatible with standard SC/APC ports?
A1: Yes, the mini hardened connector is fully compatible with standard SC/APC interfaces while offering a more compact and ruggedized design.
Q2: What level of environmental protection does it provide?
A2: It is rated IP67/IP68, ensuring reliable performance against water, dust, and harsh outdoor conditions.
Q3: Does this cable require field termination?
A3: No, it is pre-terminated and supports plug-and-play installation, reducing installation time and labor costs.
Q4: What type of fiber is used?
A4: The cable uses G657A1 single-mode fiber, which provides excellent bend resistance and stable signal transmission.
Q5: Can the product be customized for specific projects?
A5: Yes, OEM customization is available, including cable diameter, jacket material, connector configuration, and branding.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
