Pushable Bullet SC/APC to SC/APC FTTH Fiber Drop Cable Assembly OS2 G657A2
Categories:
Product Highlights:
- Pushable bullet SC/APC connector
- Armored G657A2 drop cable
- Tool-less plug-and-play installation
- Easy routing through microducts
- Ideal for FTTH deployment
Table of Contents
Description

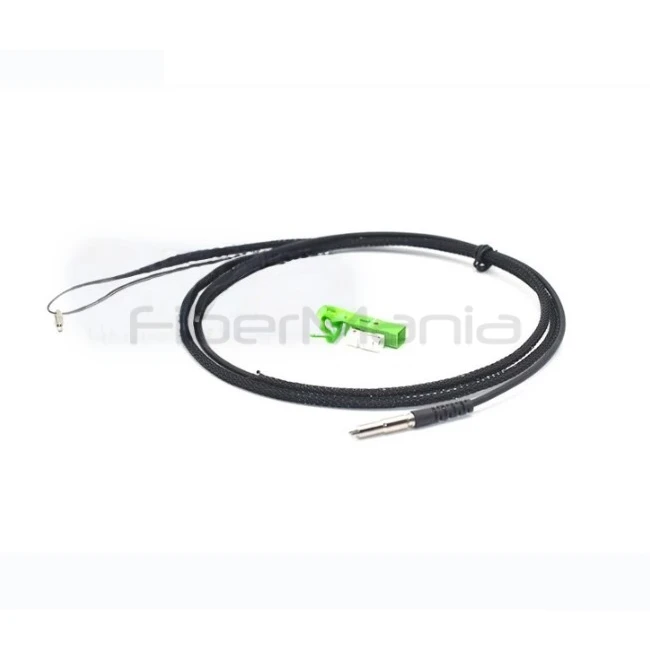

The Pushable Bullet SC/APC to SC/APC FTTH Drop Cable Assembly is an innovative pre-terminated solution designed for fast and efficient fiber deployment in FTTx networks. Featuring a rigid pushable bullet connector, it allows smooth installation through microducts, conduits, and tight wall openings without the need for pulling tools or large pathways. Built with G657A2 bend-insensitive single-mode fiber and a rugged armored round drop cable, it delivers excellent mechanical strength and stable optical performance. This plug-and-play design eliminates field splicing, reduces installation complexity, and significantly lowers labor costs, making it ideal for connecting outdoor network interfaces to indoor customer premises.
Specification
| Connector A | SC/APC Simplex (Standard) |
|---|---|
| Connector B | SC/APC Pushable (Bullet Type) |
| Fiber Type | OS2 Single Mode 9/125µm G657A2 |
| Cable Structure | Armored Round Drop Cable |
| Cable Diameter | 3.0 mm |
| Jacket Material | PBT / PE / LSZH / TPU (UV Resistant) |
| Jacket Color | Black |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 60 dB |
| Minimum Bend Radius | 3 cm (static), 6 cm (dynamic) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Standards | ANSI/TIA/EIA-568-C.3, GR-326 |
Features
- Pushable bullet SC/APC connector for easy installation
- G657A2 bend-insensitive single-mode fiber
- Armored round drop cable for enhanced protection
- Smooth routing through microducts and tight spaces
- Prevents bending and kinking during installation
- Pre-terminated plug-and-play design
- Reduces installation time and labor cost
- Custom lengths and configurations available
Applications
- FTTH and FTTx access networks
- Indoor to outdoor fiber connection
- Microduct and conduit installations
- Residential and commercial broadband access
- Last-mile fiber deployment
FAQ
Q1: What is a pushable bullet connector?
A1: It is a rigid, streamlined connector designed to be pushed through ducts and small openings without pulling tools, simplifying installation.
Q2: Does this cable require special installation tools?
A2: No, it supports tool-less installation, reducing complexity and labor requirements.
Q3: What type of fiber is used?
A3: The cable uses G657A2 single-mode fiber, providing flexibility and reliable performance in tight routing conditions.
Q4: Is the cable protected against physical damage?
A4: Yes, the armored structure enhances mechanical strength and protects against external stress.
Q5: Can the cable be customized?
A5: Yes, length, cable type, and connector configurations can be customized based on project needs.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
