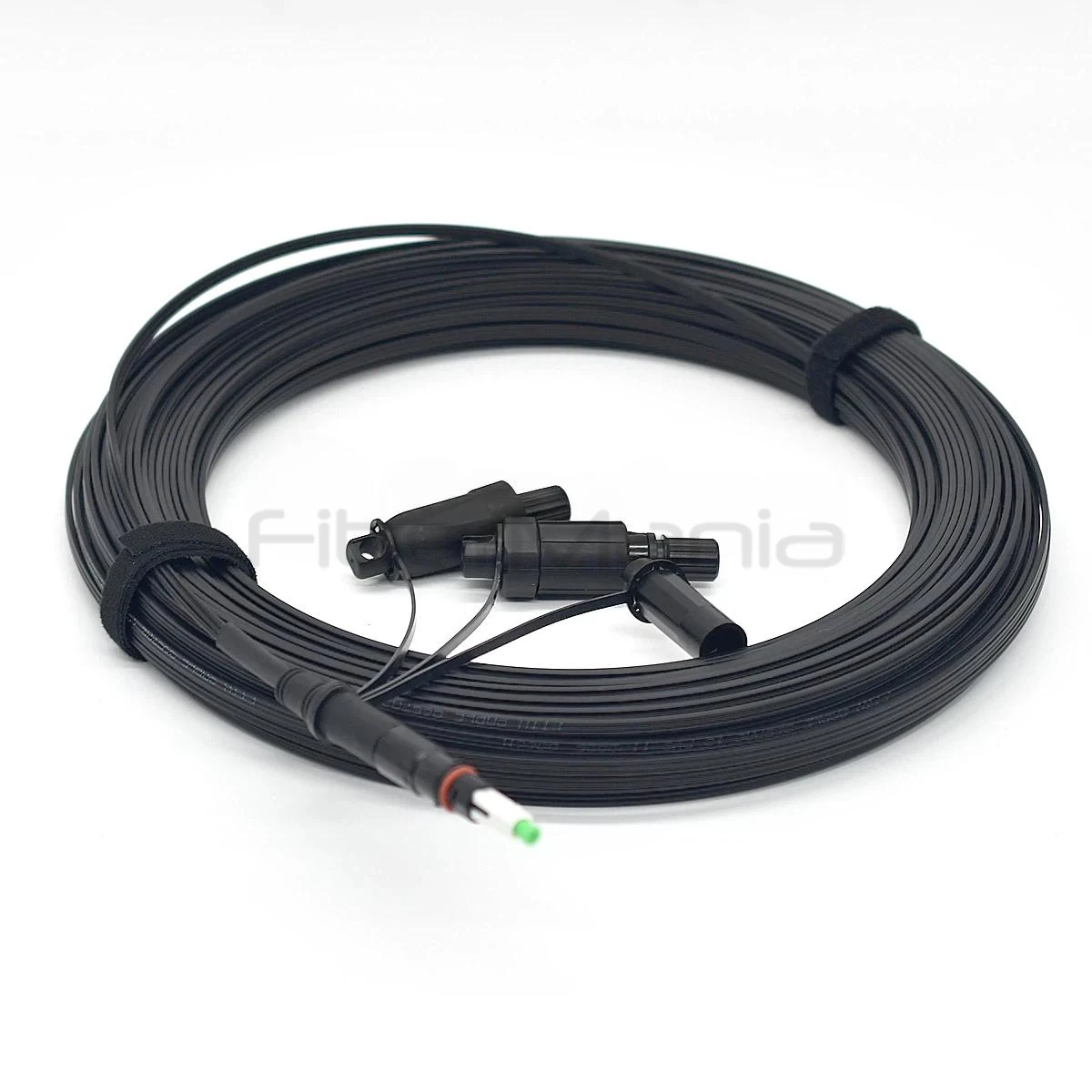

Pre-Connectorized FTTH Drop Cable 3-in-1 Interchangeable SC/APC Connector (Slim / OptiTap / FastConnect) G657A2 1F 5×2mm Black Single Mode
Categories:
Product Highlights:
- 3-in-1 interchangeable SC/APC connector
- Slim / OptiTap / FastConnect compatible
- G657A2 bend-insensitive fiber
- One end pre-terminated, one end open
- Flexible FTTH deployment solution
Table of Contents
Description
The Pre-Connectorized FTTH Drop Cable with 3-in-1 Interchangeable SC/APC Connector is a flexible and efficient solution designed for modern FTTH deployment scenarios. It features a standard factory-polished SC/APC optical ferrule combined with an interchangeable outer housing system compatible with Slim SC, OptiTap-style, and FastConnect-type hardened ports. This design allows the same optical interface to adapt to different network hardware, improving installation flexibility and reducing inventory complexity. Built with G657A2 bend-insensitive single-mode fiber and a durable 5×2mm black drop cable, it ensures stable transmission performance in aerial, duct, and indoor access environments. One end is pre-connectorized, while the other end is left open for field splicing or custom termination, making it suitable for last-mile FTTH network deployment.
Specification
| Fiber Type | Single Mode G.657.A2 |
|---|---|
| Fiber Count | 1 Fiber |
| Cable Structure | Flat drop cable 5×2 mm |
| Connector (A-End) | SC/APC with 3-in-1 interchangeable housing |
| Connector Options | Slim / OptiTap-type / FastConnect-type compatible |
| B-End | Unterminated (open end) |
| Polish Type | APC |
| Insertion Loss | ≤ 0.3 dB (typical) |
| Return Loss | ≥ 60 dB |
| Operating Temperature | -40°C to +70°C |
| Installation Type | Aerial / Duct / Indoor access |
Features
- 3-in-1 interchangeable connector system (Slim / OptiTap / FastConnect compatible)
- Standard SC/APC factory-polished optical ferrule
- G657A2 bend-insensitive single-mode fiber
- 5×2mm flat black FTTH drop cable design
- One end pre-terminated, one end open for splicing
- Flexible adaptation to multiple network interfaces
- Reduced inventory and deployment complexity
- Custom lengths, labeling, and packaging available
Applications
- FTTH and FTTx access networks
- Last-mile fiber distribution
- Aerial and duct installation environments
- Indoor fiber access termination
- Multi-platform operator network deployment
FAQ
Q1: What is the advantage of the 3-in-1 connector design?
A1: It allows one cable to be compatible with multiple hardened port systems, reducing inventory and improving deployment flexibility.
Q2: Is the optical performance affected by the interchangeable housing?
A2: No, the optical core remains a precision SC/APC ferrule, ensuring consistent low-loss performance.
Q3: Can this cable be used outdoors?
A3: Yes, the G657A2 fiber and rugged 5×2mm cable structure make it suitable for aerial and duct installations.
Q4: Why is one end left un-terminated?
A4: The open end allows field splicing or custom connector assembly based on project requirements.
Q5: Can customization be provided?
A5: Yes, length, labeling, packaging, and configuration options are fully customizable.
