Outdoor hardened SC/APC flat dielectric drop cable 4.5×8.1mm, IP68 FTTH assembly, plug-and-play last-mile fiber solution.

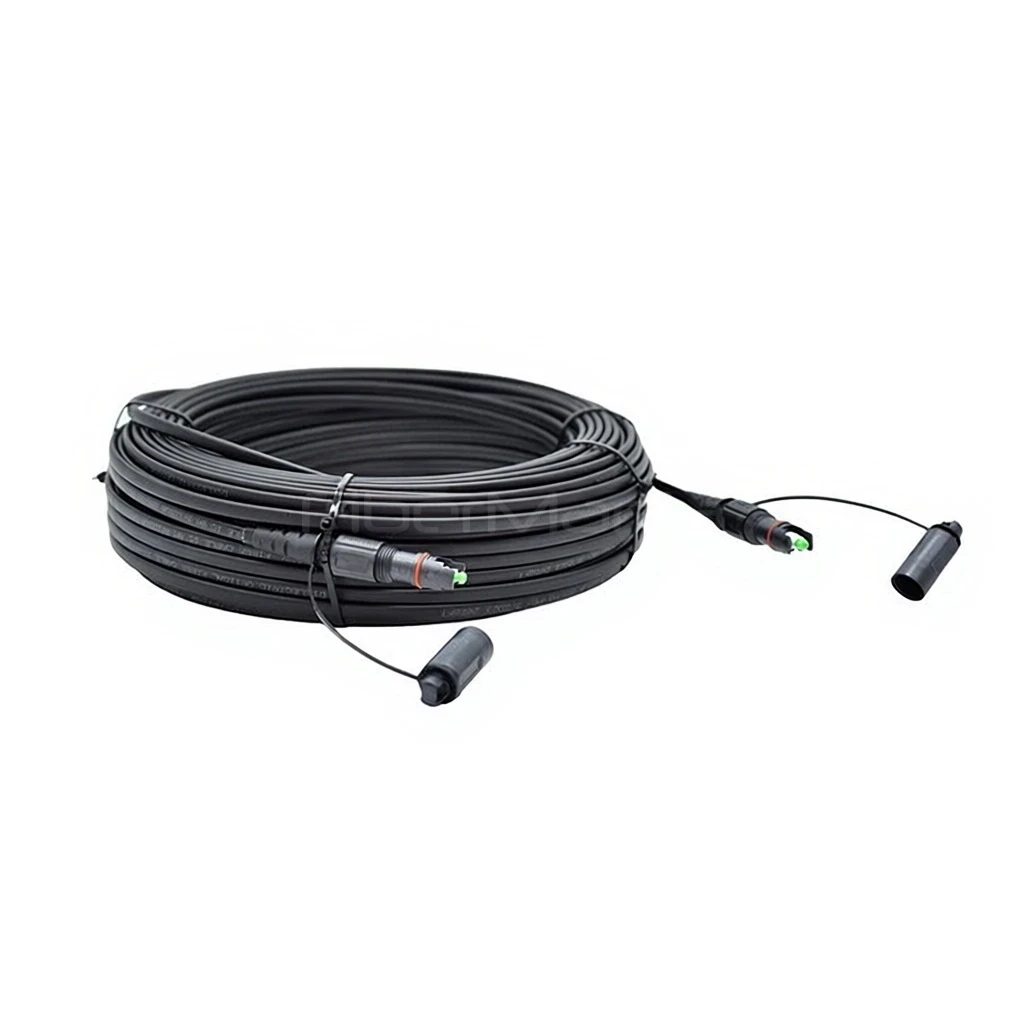

Outdoor Hardened SC/APC Flat Dielectric Drop Cable Assembly 4.5×8.1mm

Name: Outdoor Hardened SC/APC Flat Dielectric Drop Cable Assembly 4.5×8.1mm - FiberMania | AI Infrastructure, Data Center, MPO Solutions
SKU: HSASST-024TBK01

P/N: HSASST-024TBK01

Categories:

Base Station Patch Cables

Product Highlights:

Hardened SC/APC outdoor drop cable
Flat dielectric 4.5×8.1mm design
IP68 waterproof protection
No grounding required
Ideal for FTTH last-mile deployment

Description

The Outdoor Hardened SC/APC Flat Dielectric Drop Cable Assembly is a high-reliability FTTH last-mile connectivity solution designed for harsh outdoor environments. It features a rugged hardened SC/APC connector integrated into a sealed threaded housing, ensuring stable, weather-resistant optical performance between distribution points and customer premises. Built with a flat dielectric 4.5×8.1mm cable structure, it provides strong mechanical protection while eliminating the need for grounding, making installation simpler and safer. With IP68-rated protection and factory pre-termination, this assembly enables fast deployment, reduced labor costs, and long-term durability in aerial, duct, and direct burial applications.

Structure Hardened SC APC Connector Cable

Specification

Connector Type	Hardened SC/APC
Cable Type	Flat Dielectric Drop Cable
Cable Size	4.5 × 8.1 mm
Fiber Type	Single Mode
Protection Rating	IP68
Operating Temperature	-40°C to +85°C
Installation Type	Aerial / Duct / Direct Burial

Features

Hardened SC/APC connector with sealed threaded housing
Flat dielectric 4.5×8.1mm cable design
No grounding required (dielectric structure)
IP68-rated waterproof and dustproof protection
Factory pre-terminated plug-and-play design
High mechanical strength and flexibility
Suitable for harsh outdoor environments
Custom lengths and connector options available

Applications

FTTH and FTTx last-mile access networks
Aerial fiber distribution
Duct and conduit installations
Direct burial fiber deployments
Connection between MSTs and subscriber premises

FAQ

Q1: What is the advantage of a dielectric flat cable?
A1: The dielectric structure eliminates the need for grounding while maintaining strong mechanical protection and stable performance.

Q2: Is this cable suitable for direct burial?
A2: Yes, it is designed for aerial, duct, and direct burial installations with IP68 protection.

Q3: What type of connector is used?
A3: It uses a hardened SC/APC connector with a sealed threaded housing for outdoor reliability.

Q4: Does this cable require field splicing?
A4: No, it is factory pre-terminated for plug-and-play installation.

Q5: Can the cable length be customized?
A5: Yes, custom lengths and connector configurations are available.

FTTA Fiber Optic Cables Guide Selection

SKU	Cable Type	Connector A	Connector B	Fiber Count	Features	Application
FCSA-SM027LBK03	OS2 SM	FC/UPC	SC/APC	2	LSZH	Outdoor
LCLC-SM047LBK03-1	OS2 SM	LC UPC	LC UPC	4	LSZH	CPRI
IPLALC-SM025TBK03	OS2 SM	IP Duplex LC/APC	IP Duplex LC/APC	2	TPU	Waterproof
IPMPO-ASM125LBK50	OS2 SM	IP MPO/PC	IP MPO/PC	12	LSZH, Armored	Waterproof
OALC-SM027LBK03	OS2 SM	LC/UPC	ODVA LC/UPC	2	LSZH	Outdoor
OAOA-SM027LBK03	OS2 SM	ODVA LC/UPC	ODVA LC/UPC	2	LSZH	Outdoor
OTMPLC-SM124LBK100	OS2 SM	OptiTap MPO	LC/UPC	12	LSZH, 4.8mm	Outdoor
OPLC-SM024TBK03	OS2 SM	ODC	DLC/UPC	2	TPU, 4.8mm	Outdoor
FXLC-SM025TBK03	OS2 SM	FullAxs DLC/UPC	LC/UPC	2	TPU	Outdoor
MISAMISA-SM024LBK03	OS2 SM	Mini SC/APC	Mini SC/APC	2	LSZH	Outdoor
PDLCLC-SM027LBK03	OS2 SM	PDLC LC/UPC	PDLC LC/UPC	2	LSZH	Outdoor

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
