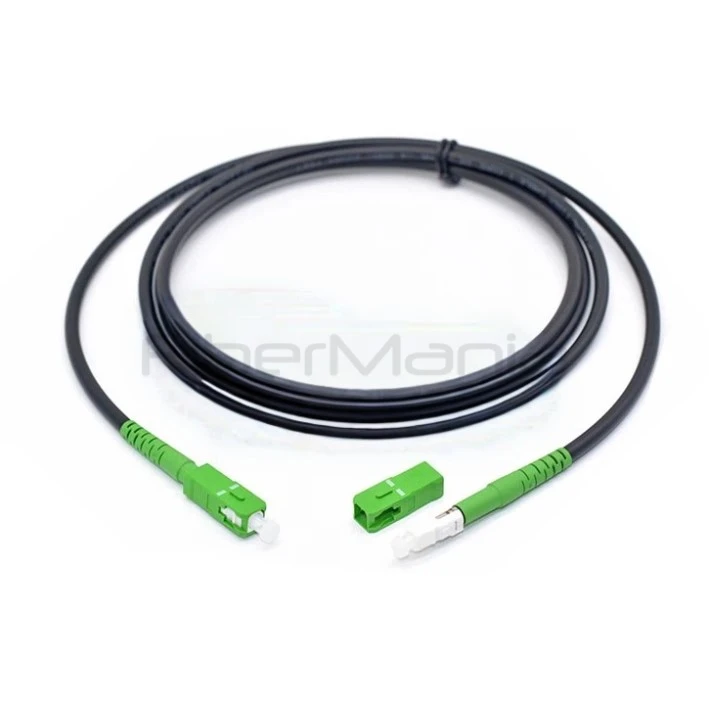

Outdoor 4.8mm Ruggedized SC/APC to SC/APC G657B3 Single Mode Fiber Patch Cable
Categories:
Product Highlights:
- SC/APC to SC/APC rugged cable
- G657B3 bend-insensitive fiber
- 4.8mm outdoor UV-resistant jacket
- Stable and durable performance
- Ideal for harsh environments
Table of Contents
Description
The 4.8mm Ruggedized SC/APC to SC/APC Fiber Patch Cable is a high-performance outdoor solution designed for reliable optical connectivity in harsh environments. Built with G657B3 bend-insensitive single-mode fiber, it maintains stable signal transmission even in tight routing conditions. The rugged 4.8mm black jacket offers excellent mechanical strength, UV resistance, and environmental protection, making it suitable for both outdoor and indoor riser applications. This pre-terminated simplex cable ensures fast installation and consistent optical performance, while its reinforced transition structure enhances durability and waterproof reliability for long-term network use.
Ruggedized Design for Harsh Environments
- Thickened Outer Jacket – Heavy-duty PE or LSZH sheath for superior abrasion and environmental resistance
- UV-Resistant Materials – Ensures long-term durability under direct sunlight exposure
- Reinforced Strength Members – Aramid yarn (Kevlar) or FRP rods enhance tensile strength and pulling resistance
- Crush-Resistant Structure – Designed to withstand mechanical pressure and accidental impact
- Water Blocking Protection – Prevents moisture ingress with water-swellable yarns or gel filling
- Enhanced Strain Relief – Strengthened connector boot minimizes stress at termination points
- Optional Armoring – Steel tape or wire armor provides additional mechanical protection
- Wide Temperature Performance – Reliable operation in extreme hot and cold conditions
- Improved Bend Resistance – Utilizes bend-insensitive fibers (e.g., G.657 series) for flexible routing
Specification
| Connector Type | SC/APC to SC/APC |
|---|---|
| Fiber Type | Single Mode G657B3 9/125µm |
| Fiber Count | 1 Fiber (Simplex) |
| Cable Diameter | 4.8mm (optional 2.0mm / 3.0mm) |
| Cable Jacket | UV-resistant Black OSP / Riser |
| Cable Length | 15 ft (customizable) |
| Insertion Loss | ≤ 0.2 dB (max), < 0.15 dB (typical) |
| Return Loss | ≥ 60 dB (APC) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
Features
- SC/APC to SC/APC simplex configuration
- G657B3 bend-insensitive single-mode fiber
- 4.8mm ruggedized outdoor jacket
- UV-resistant and weatherproof design
- Low insertion loss and stable performance
- Pre-terminated for easy installation
- Reinforced connector transition for durability
- Custom lengths and configurations available
Applications
- Outdoor fiber optic networks
- FTTH and FTTx deployments
- Telecom and broadband infrastructure
- Indoor riser and outdoor routing
- Harsh environment installations
FAQ
Q1: What is the benefit of G657B3 fiber?
A1: G657B3 fiber offers superior bend performance, allowing tighter routing with minimal signal loss.
Q2: Is this cable suitable for outdoor use?
A2: Yes, the rugged 4.8mm jacket is UV-resistant and designed for harsh outdoor environments.
Q3: Can it be used indoors as well?
A3: Yes, it is suitable for both indoor riser and outdoor applications.
Q4: Does the cable support waterproof performance?
A4: Yes, the reinforced connector design enhances sealing and long-term reliability.
Q5: Are custom options available?
A5: Yes, cable length, connector type, and other configurations can be customized.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
