4-Fiber Hardened SC/APC Breakout FTTH Drop Cable Assembly SM OS2 4.5×8.1mm Flat Dielectric Outdoor Cable
Categories:
Product Highlights:
- 4-fiber breakout drop cable
- Hardened SC/APC connectors
- Flat UV-resistant outdoor cable
- Plug-and-play installation
- Ideal for FTTH deployment
Table of Contents
Description
The 4-Fiber Hardened SC/APC Breakout FTTH Drop Cable Assembly is a robust and factory-terminated solution designed for reliable outdoor fiber deployment in FTTx networks. Each fiber is equipped with a hardened SC/APC connector, providing secure, sealed connectivity for direct mating with multiport terminals, distribution boxes, and waterproof interfaces. The breakout design enables multiple fiber channels within a single compact cable, improving installation efficiency and reducing cable management complexity. Constructed with a flat dielectric 4.5×8.1mm outdoor-rated jacket, it offers excellent UV resistance, mechanical strength, and long-term durability in harsh environments, making it ideal for last-mile access and telecom infrastructure applications.

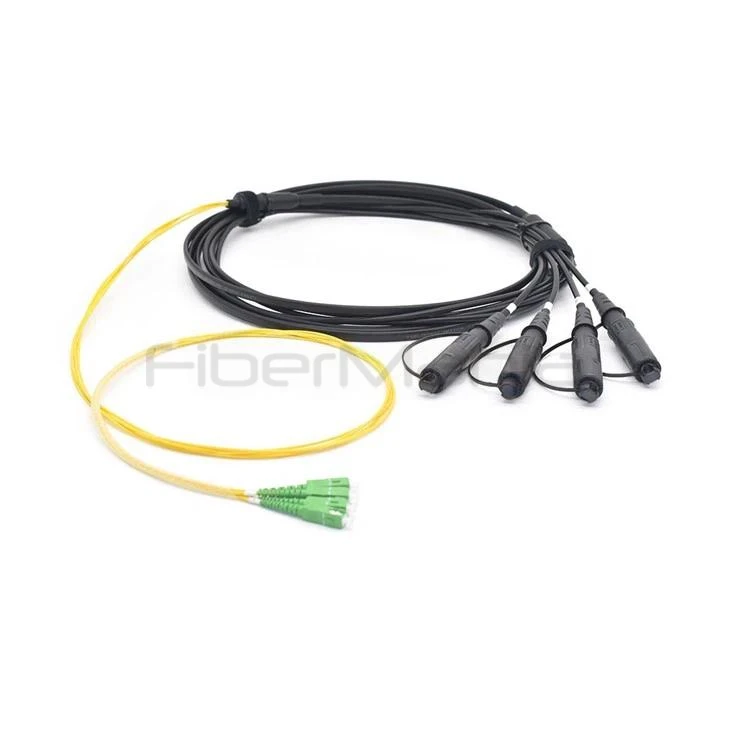

4 Fiber Hardened SC APC – SC APC Breakout Structure
Specification
| Fiber Count | 4 Fibers |
|---|---|
| Fiber Mode | Single Mode |
| Fiber Type | G.657.A1 / G.657.A2 / G.657.B |
| Connector A | Male |
| Connector B | SC/APC |
| Connector B Color | Green |
| Cable Structure | 4-fiber breakout |
| Jacket Material | UV-stabilized outdoor-rated sheath |
| Operating Temperature | -40°C to +70°C |
| Standards Compliance | IEC 61753-1 / IEC 61754-4 / IEC 61755 |
Features
- 4-fiber breakout design for multi-channel connectivity
- Hardened SC/APC connectors for sealed outdoor connection
- Flat dielectric 4.5×8.1mm cable structure
- UV-resistant and weatherproof for outdoor use
- Factory-terminated for plug-and-play installation
- Strong mechanical protection and durability
- Customizable fiber count, length, and labeling
Applications
- FTTH and FTTx access networks
- Last-mile fiber distribution
- Wireless base station connections
- Outdoor telecom equipment links
- Connection to MSTs and fiber distribution boxes
FAQ
Q1: What is the advantage of the breakout design?
A1: The breakout structure allows multiple fibers to be distributed individually from a single cable, simplifying installation and reducing cable clutter.
Q2: Are the connectors suitable for outdoor use?
A2: Yes, the hardened SC/APC connectors provide sealed and rugged performance for outdoor environments.
Q3: What type of fiber is used?
A3: The cable uses OS2 single-mode fiber, suitable for long-distance, high-performance transmission.
Q4: Can this cable withstand harsh weather conditions?
A4: Yes, the flat dielectric jacket is UV-resistant and designed for long-term outdoor durability.
Q5: Is customization available?
A5: Yes, fiber count, cable length, connector types, and labeling can be customized based on project needs.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
