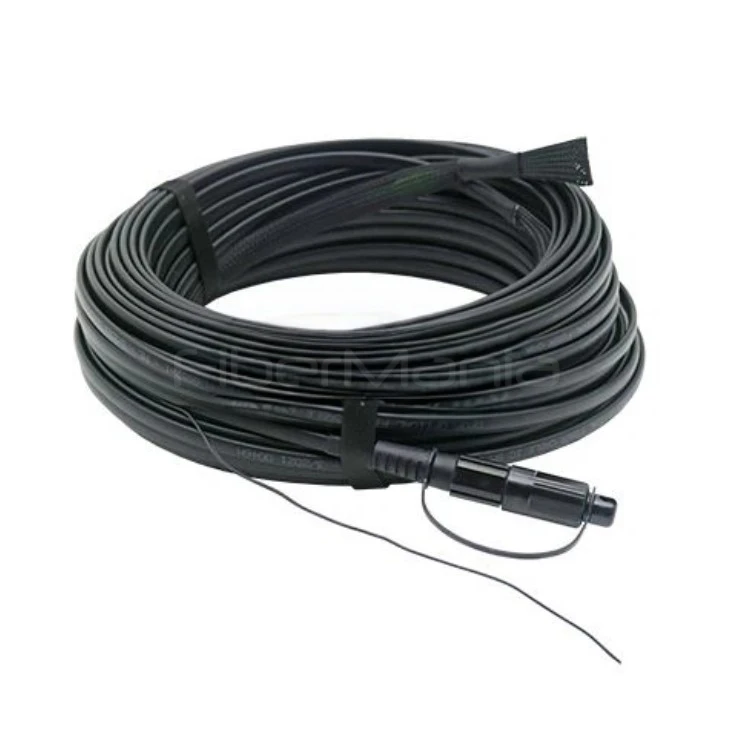

SST Pre-Connectorized Flat Drop Cable with Pulling Eye SC/APC Hardened FTTH Assembly
Categories:
Product Highlights:
- Pre-connectorized SC/APC hardened FTTH drop cable
- Integrated pulling eye for easy installation
- Flat 4.5 × 9.8 mm durable structure
- IP68-rated outdoor protection
- Ideal for aerial, duct, and direct burial networks
Table of Contents
Description
The SST Pre-Connectorized Flat Drop Cable with Pulling Eye is a high-performance FTTH outdoor fiber solution designed for fast, reliable, and cost-efficient last-mile deployment. It features a factory-terminated SC/APC hardened connector and an integrated pulling eye for smooth conduit installation without damaging the connector, enabling true plug-and-play connectivity between multiport service terminals and end users. The flat 4.5 × 9.8 mm cable structure provides strong mechanical protection while maintaining flexibility for aerial, duct, and direct-burial applications. With IP68-rated sealing and factory-tested low insertion loss, it ensures stable optical performance in harsh environments, reducing the need for field splicing and significantly improving installation efficiency.
SST Flat Drop Cable with Pulling Eye SC APC Hardened Structure
Specification
| Cable Type | Flat Drop with Tracer Wire |
|---|---|
| Dimensions | 4.5 × 9.8 mm |
| Fiber Type | G.652D / G.657A Single Mode |
| Fiber Count | 1 Fiber |
| Connector A/B | SC/APC Hardened Connector |
| Jacket Material | PE (UV Resistant) |
| Insertion Loss | ≤ 0.15 dB (typical) |
| Return Loss | ≥ 65 dB |
| Protection Rating | IP68 |
| Operating Temperature | -40°C to +85°C |
| Fire Rating | IEC 60332-1-2 |
Features
- Factory-terminated SC/APC hardened connector
- Integrated pulling eye for easy conduit installation
- Flat 4.5 × 9.8 mm durable cable structure
- IP68-rated waterproof and dustproof performance
- Suitable for aerial, duct, and direct burial use
- Low insertion loss and stable optical performance
- Reduced field splicing for faster deployment
- OEM customization available for project requirements
Application
- FTTH last-mile fiber access networks
- Connection between MST/terminal boxes and end users
- Outdoor aerial fiber installations
- Underground duct and conduit deployments
- Direct burial fiber distribution systems
FAQ
Q1: What is the purpose of the pulling eye design?
A1: It allows safe and efficient cable pulling through ducts without damaging the pre-connectorized SC/APC end.
Q2: Is this cable suitable for outdoor environments?
A2: Yes, it is IP68 rated and designed for harsh outdoor conditions including moisture, dust, and UV exposure.
Q3: Can this cable be used for direct burial installation?
A3: Yes, it supports aerial, duct, and direct burial applications depending on project requirements.
Q4: Does it require field fusion splicing?
A4: No, it is a pre-connectorized solution designed to eliminate field splicing and reduce installation time.
Q5: Can the cable length and configuration be customized?
A5: Yes, OEM customization is available for length, connector type, and tracer wire options.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
