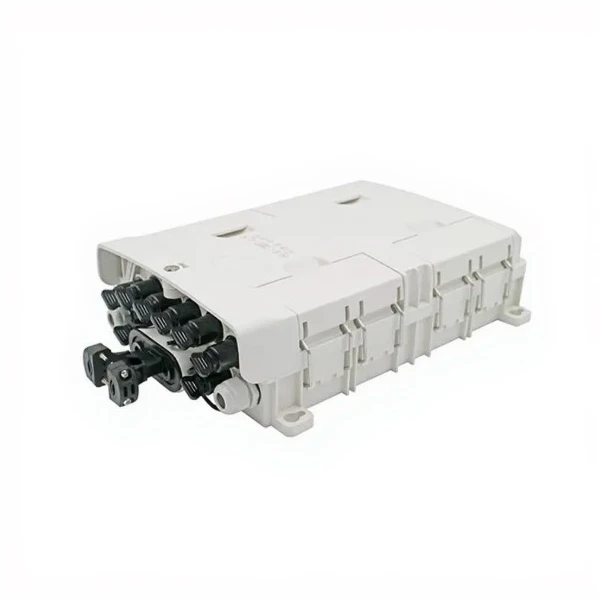

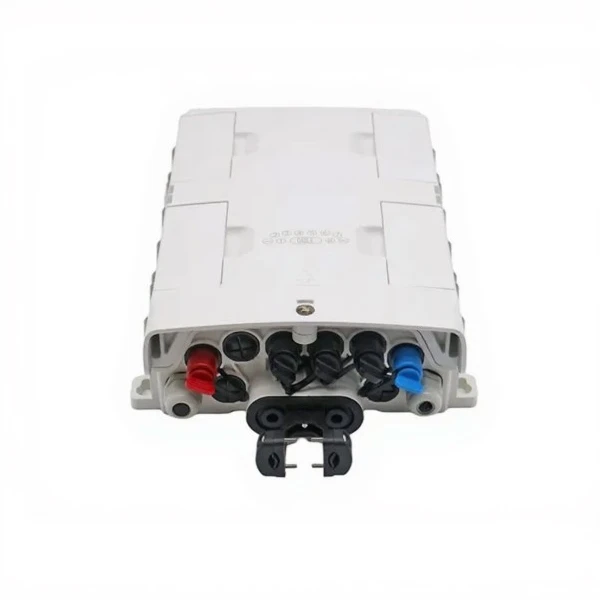

8 Port Fiber NAP Box with PLC Splitter Integration for FTTx Networks
Categories:
Product Highlights:
- Compact 8-port fiber access design
- Integrated PLC splitter functionality
- IP65-rated outdoor protection
- Structured internal fiber routing system
- Easy upgrade and maintenance access
Table of Contents
Description

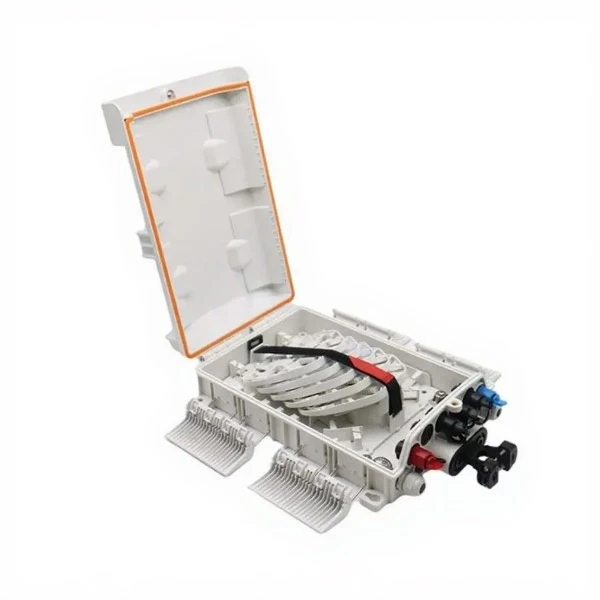

This 8 port fiber NAP box with PLC splitter integration is a compact and durable termination and distribution solution designed for modern FTTx networks. It provides a centralized access point for connecting feeder cables to drop cables while integrating fiber splicing and PLC splitting functions within a protected enclosure. Built with a structured internal layout, it separates cable routing paths for feeder, drop, and splitter sections, improving installation efficiency and long-term maintenance. With a rugged PC+ABS housing and IP65-rated protection, the enclosure ensures stable performance in both indoor and outdoor environments, making it suitable for last-mile fiber access and broadband distribution networks.
Specification
| Dimensions (A×B×C) | 343 × 239 × 95 mm |
|---|---|
| Max Capacity | 8 cores (SC/APC 1×8) |
| Material | PC + ABS |
| Protection Level | IP65 |
| Installation | Wall mount / Pole mount |
| Direct Installation Size | 221 × 265 mm |
| Wall Installation Size | 61 × 274 mm |
| Max Cable Diameter | 13 mm |
| Working Temperature | -40°C to +85°C |
| Humidity | ≤85% (+30°C) |
| Atmospheric Pressure | 70–106 KPa |
| Insertion Loss | ≤0.15 dB |
| Return Loss (UPC) | ≥50 dB |
| Return Loss (APC) | ≥60 dB |
| Insulation Resistance | ≥2 MΩ / 500V (DC) |
| Voltage Resistance | ≥3000V (DC) |
Features
- 8-port design for efficient fiber distribution
- Integrated PLC splitter support for network splitting
- Combined splicing, splitting, and termination in one unit
- Durable PC+ABS housing for long service life
- IP65 protection for dust and water resistance
- Independent internal routing design for better cable management
- Easy installation and maintenance structure
- Suitable for wall or pole mounting applications
Application
- FTTx fiber access networks
- FTTH last-mile fiber distribution
- Residential and commercial broadband deployment
- Outdoor fiber distribution points
- Telecom access network termination points
- Smart building fiber connectivity systems
- Rural broadband expansion projects
FAQ
Q1: Does this NAP box include a PLC splitter?
A1: It supports PLC splitter integration and can be configured with different splitter ratios based on network requirements.
Q2: Can it be used outdoors?
A2: Yes, the IP65-rated housing provides strong protection against dust, rain, and harsh outdoor conditions.
Q3: What types of cables can it accommodate?
A3: It supports feeder cables, drop cables, and pigtails with organized internal routing for each section.
Q4: Is it suitable for FTTH applications?
A4: Yes, it is widely used in FTTH last-mile fiber distribution and access network deployments.
Q5: How does it simplify maintenance?
A5: The independent internal structure allows easy access to splicing and splitter modules without disturbing other fiber paths.
FTTA MST Boxes Comparison Table
| SKU | Fiber Capacity | External Ports | Connector Interface | Internal Configuration | Splitter | IP Rating | Mounting |
| MST01-24MAMLCSL | 24 | 12 | OptiTap MPO | Yes/Optional | 2MPO – 24 LC Harness | IP68/IP67 | Pole/Wall Mount |
| MST01-4MAMSASL-P30FT | 4 | 4 | OptiTap SC/APC | Yes/Optional | 1 to 4 | IP67 | Pole/Wall Mount |
| MST011-816PSCA | 8 | 4 or 8 | Customed | Optional | Optional | Optioanl | Wall Mount |
| MST013-16PMSC | 16 | 16 | Mini SC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST015-12P19 | 12 to 24 | 12 | Customed | Optional | 1:09 | IP68 | Wall Mount |
| MST016-1016PSA | 10 to 16 | 8 | SC/APC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST017-10PFAT | 10 | 10 | Customed | Optional | Optional | IP68 | Pole/Wall Mount |
| MST02-12MAMLCSL | 12 | 6 | OptiTap MPO | Pre-terminated | Optional | IP67 | Wall Mount |
| MST020-12A | 24 | 24 | Hardened Adapter | Pre-terminated | 2 to 24 | IP68/IP67 | Wall Mount |
| MST022-12P | 12 | 12 | Mini SC Harneded | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST024-24C | 8 to 16 | 8 | SuperTap | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST023-16PSC | 16 | 16 | SC FastConnector | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST04-M16ST | 6 | 6 | SuperTap | Pre-terminated | PLC | IP67 | na |
| MST06-68 | 4 to 12 | 4/5/8/12 | SuperTap | Pre-terminated | PLC | IP68 | Wall Mount |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
