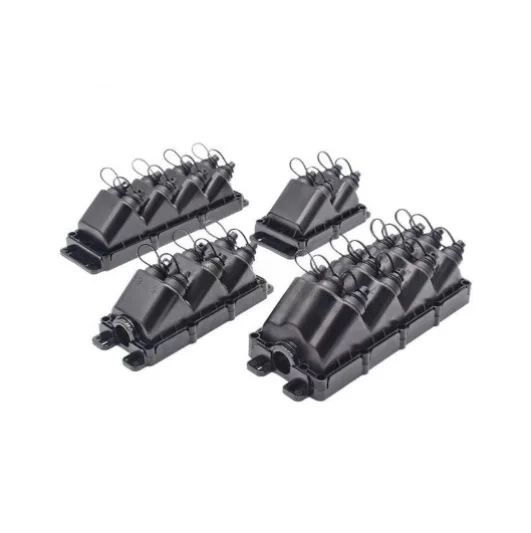

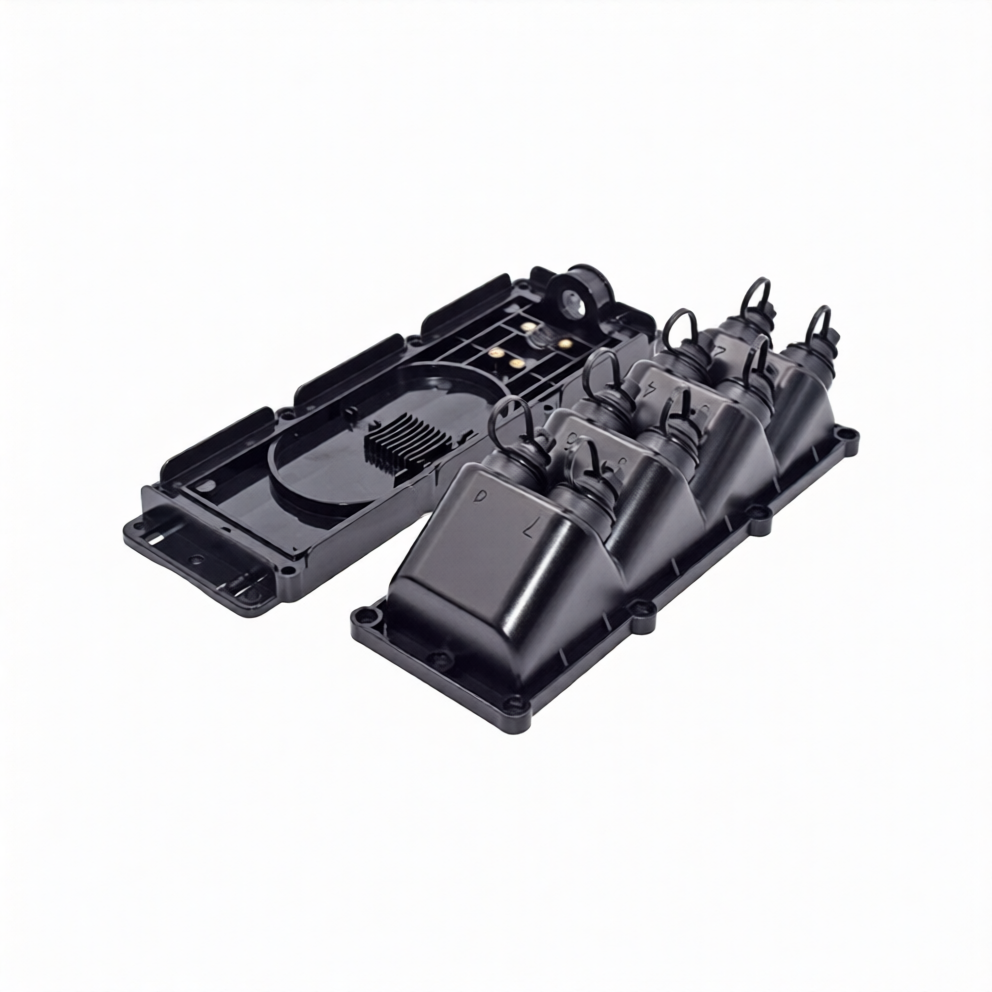

4/6/8/12-Port SuperTap MST Box IP68 Outdoor FTTH/FTTA Plug-and-Play

Name: 4/6/8/12-Port SuperTap MST Box IP68 Outdoor FTTH/FTTA Plug-and-Play - FiberMania | AI Infrastructure, Data Center, MPO Solutions
SKU: MST06-68

P/N: MST06-68

Categories:

MST Boxes

Product Highlights:

4/6/8/12-port MST fiber terminal
SuperTap/FastConnect compatible adapters
IP68 outdoor rugged enclosure
Plug-and-play pre-terminated design
Flexible multi-scenario installation

Description

The 4/6/8/12-Port SuperTap Multiport Service Terminal (MST) Box is a high-performance fiber access solution designed for modern FTTx and FTTA-ODN networks. Available in multiple port configurations, it features factory pre-terminated fiber interfaces that eliminate field splicing and closure opening, enabling fast and efficient deployment at network access points. Equipped with hardened SuperTap or FastConnect-compatible adapters, it delivers true plug-and-play connectivity for rapid service activation and network expansion. The IP68-rated rugged housing ensures reliable operation in harsh outdoor environments, while its flexible mounting options support wall, pole, aerial, pedestal, and strand installations, helping operators reduce deployment complexity and lower overall network costs.

Specification

Port Options	4 / 6 / 8 / 12 ports
Compatible Connector Type	SuperTap / FastConnect / H-Connector compatible
Termination Type	Factory pre-terminated (no field splicing)
Protection Rating	IP68 Waterproof & Dustproof
Input Cable Types	SST, ROC, 5.0mm round cable
Stub Length Range	10 ft – 1500 ft (customizable)
Mounting Options	Wall / Pole / Aerial / Pedestal / Strand

Features

Available in 4, 6, 8, and 12-port configurations
SuperTap and FastConnect-compatible hardened adapters
IP68-rated waterproof and dustproof enclosure
Factory pre-terminated plug-and-play design
Eliminates field splicing and reduces installation time
Supports multiple mounting methods (wall, pole, aerial, strand)
High durability for harsh outdoor environments
Reduces total cost of ownership (TCO)

Applications

FTTH and FTTx access networks
FTTA wireless infrastructure
Outdoor fiber distribution points
Last-mile broadband deployment
Telecom operator network expansion
Aerial and pedestal installations

FAQ

Q1: What port options are available for this MST box?
A1: It is available in 4, 6, 8, and 12-port configurations to meet different network requirements.

Q2: Does this product require field splicing?
A2: No, it uses factory pre-terminated fibers for plug-and-play installation without splicing.

Q3: Is it compatible with different connector systems?
A3: Yes, it supports SuperTap and FastConnect-compatible hardened adapters.

Q4: Can it be used in harsh outdoor environments?
A4: Yes, the IP68-rated enclosure provides full protection against water and dust.

Q5: What installation methods are supported?
A5: It supports wall, pole, aerial, pedestal, and strand mounting options.

FTTA MST Boxes Comparison Table

SKU	Fiber Capacity	External Ports	Connector Interface	Internal Configuration	Splitter	IP Rating	Mounting
MST01-24MAMLCSL	24	12	OptiTap MPO	Yes/Optional	2MPO – 24 LC Harness	IP68/IP67	Pole/Wall Mount
MST01-4MAMSASL-P30FT	4	4	OptiTap SC/APC	Yes/Optional	1 to 4	IP67	Pole/Wall Mount
MST011-816PSCA	8	4 or 8	Customed	Optional	Optional	Optioanl	Wall Mount
MST013-16PMSC	16	16	Mini SC	Splice Tray	Optional	IP68	Pole/Wall Mount/Aerial
MST015-12P19	12 to 24	12	Customed	Optional	1:09	IP68	Wall Mount
MST016-1016PSA	10 to 16	8	SC/APC	Splice Tray	Optional	IP68	Pole/Wall Mount/Aerial
MST017-10PFAT	10	10	Customed	Optional	Optional	IP68	Pole/Wall Mount
MST02-12MAMLCSL	12	6	OptiTap MPO	Pre-terminated	Optional	IP67	Wall Mount
MST020-12A	24	24	Hardened Adapter	Pre-terminated	2 to 24	IP68/IP67	Wall Mount
MST022-12P	12	12	Mini SC Harneded	Pre-terminated	Optional	IP68/IP67	Wall Mount
MST024-24C	8 to 16	8	SuperTap	Pre-terminated	Optional	IP68/IP67	Wall Mount
MST023-16PSC	16	16	SC FastConnector	Pre-terminated	Optional	IP68/IP67	Wall Mount
MST04-M16ST	6	6	SuperTap	Pre-terminated	PLC	IP67	na
MST06-68	4 to 12	4/5/8/12	SuperTap	Pre-terminated	PLC	IP68	Wall Mount

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
