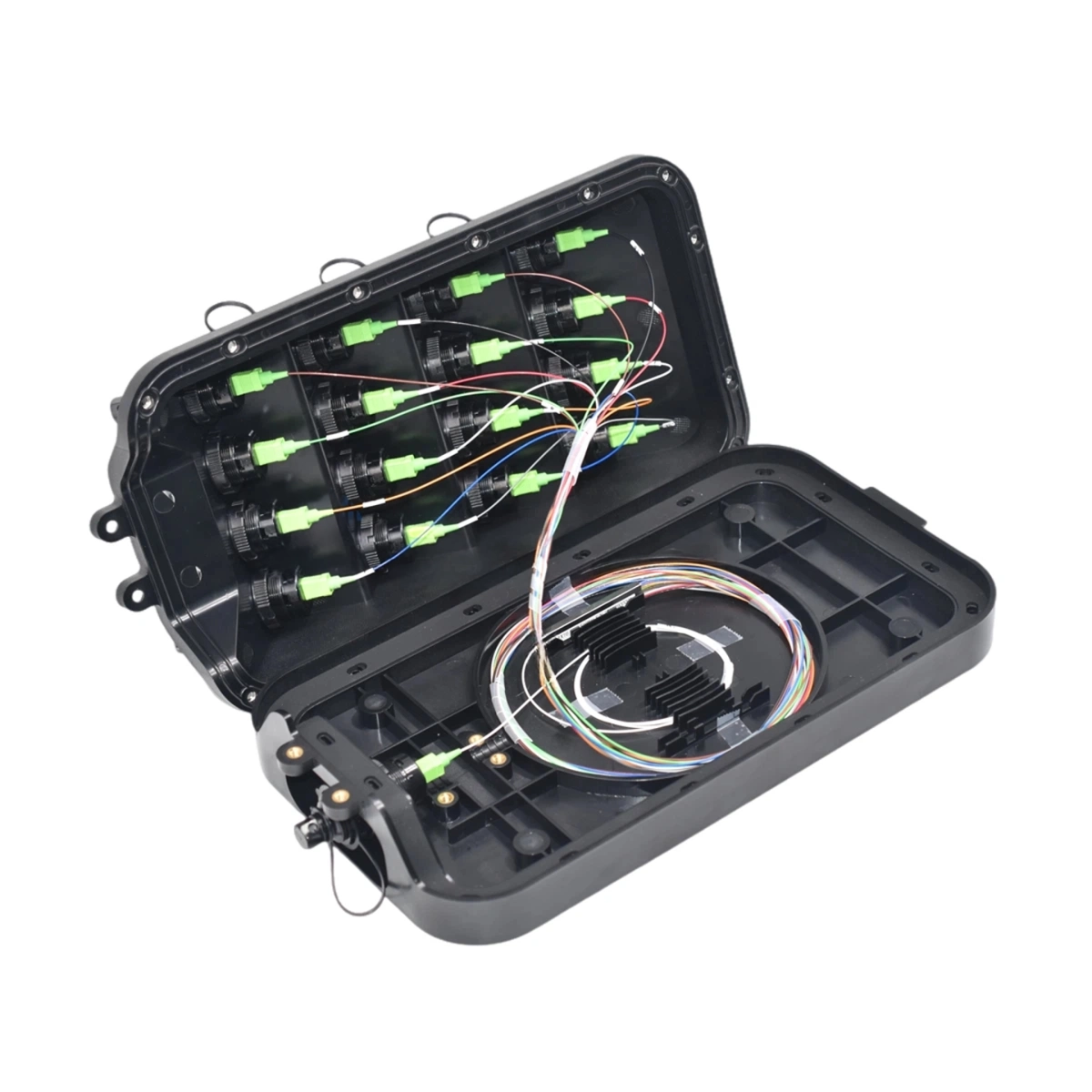

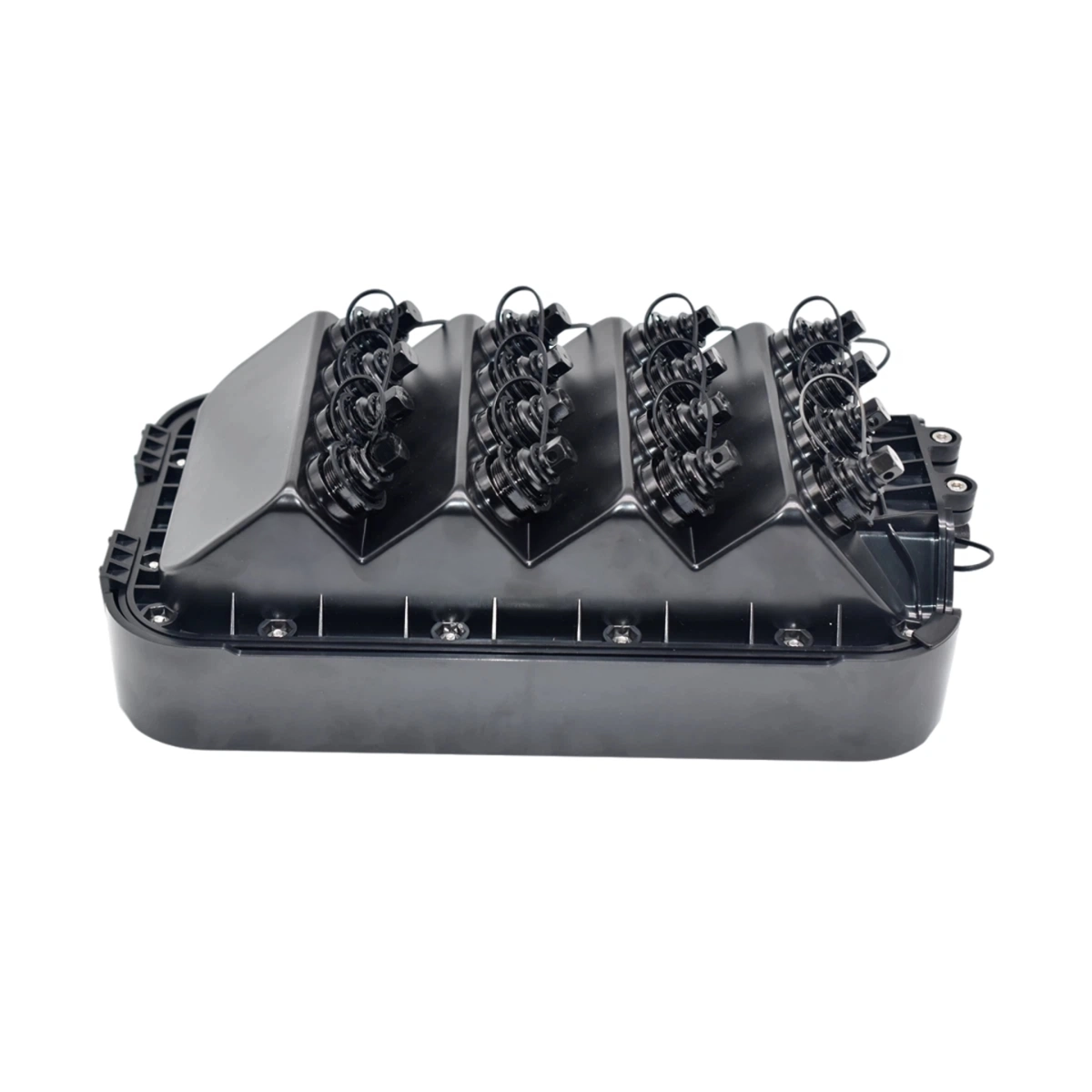

16 Port MST Multiport Service Terminal IP68 Fiber Optic Waterproof Distribution Box Hardened FastConnect
Categories:
Product Highlights:
- IP68 fully sealed protection for extreme outdoor environments
- FastConnect system enables true plug-and-play deployment
- 16-port high-density hardened fiber access capability
- Includes express pass-through port for network scalability
- Supports multiple installation methods (aerial, pole, wall, ground)
Table of Contents
Description
The 16-Port MST Multiport Service Terminal is a rugged, high-performance fiber access distribution solution engineered for FTTH and FTTx outdoor network deployments. Designed with an IP68-rated fully sealed structure, it ensures maximum protection against dust, water immersion, UV exposure, and harsh environmental conditions. The FastConnect plug-and-play architecture enables rapid subscriber activation without opening the enclosure or performing field fusion splicing, significantly simplifying installation workflows and reducing operational costs. Supporting 16 hardened drop cable ports along with an express pass-through port, the unit provides flexible fiber routing and efficient network expansion capabilities. Its reinforced PC+ABS housing delivers long-term mechanical stability under extreme temperature variations, vibration, and aerial or pole-mounted deployment scenarios, making it an ideal solution for modern high-density broadband access networks.
Specification
| Box Type | Hardened adapter port panel (16 + 1 optional) |
|---|---|
| Shell | Reinforced PC+ABS |
| Bracket | Stainless steel 304 mounting bracket |
| Compatible Splicing Tray | 24 cores |
| Termination Capacity | 16 hardened ports |
| Cable Entry | 2 ports for Φ5.0–Φ18.0 mm straight-through cable |
| Mounting Type | Pole / Wall / Aerial / Overground |
| Dimensions | 330 × 190 × 108 mm |
| Net Weight | 1.4–1.8 kg (depending on configuration) |
| Protection Level | IP68 |
| Sealing Method | Mechanical |
| Featured Design 1 | Cable anchoring zone |
| Featured Design 2 | Pressure-equalization valve |
| Featured Design 3 | Integrated routing and bend-radius control |
Features
- IP68-rated waterproof and dustproof sealed enclosure for outdoor reliability
- FastConnect plug-and-play architecture eliminates field splicing requirements
- Supports 16 hardened drop ports plus 1 express pass-through port
- Compatible with multiple hardened connector standards for flexible deployment
- Reinforced PC+ABS housing for UV resistance and mechanical durability
- Suitable for aerial, pole-mounted, wall-mounted, and overground installations
- High-density fiber access design optimized for FTTH/FTTx expansion
- Quick deployment system for reduced installation time and labor cost
Applications
- FTTH last-mile broadband access networks
- FTTA and wireless base station fiber connectivity
- Rural and urban fiber deployment projects
- ISP subscriber distribution and activation points
- Smart city fiber infrastructure nodes
- Outdoor aerial and pole-mounted fiber access systems
- Network expansion and rapid restoration projects
FAQ
Q1: Does the MST box require opening for subscriber connection?
No. The FastConnect design allows plug-and-play connections without opening the enclosure, maintaining full sealing integrity.
Q2: What does IP68 protection mean for real-world use?
IP68 ensures complete dust protection and resistance to long-term water immersion, making it suitable for extreme outdoor environments.
Q3: Can this MST support different connector types?
Yes. It is compatible with multiple hardened connector standards, enabling flexible integration in global FTTH deployments.
Q4: What installation methods are supported?
It supports aerial, pole-mounted, wall-mounted, and overground installations depending on deployment requirements.
Q5: What is the benefit of the express pass-through port?
The express port allows continuation of the main fiber line without interruption, supporting network scalability and cascading deployments.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
