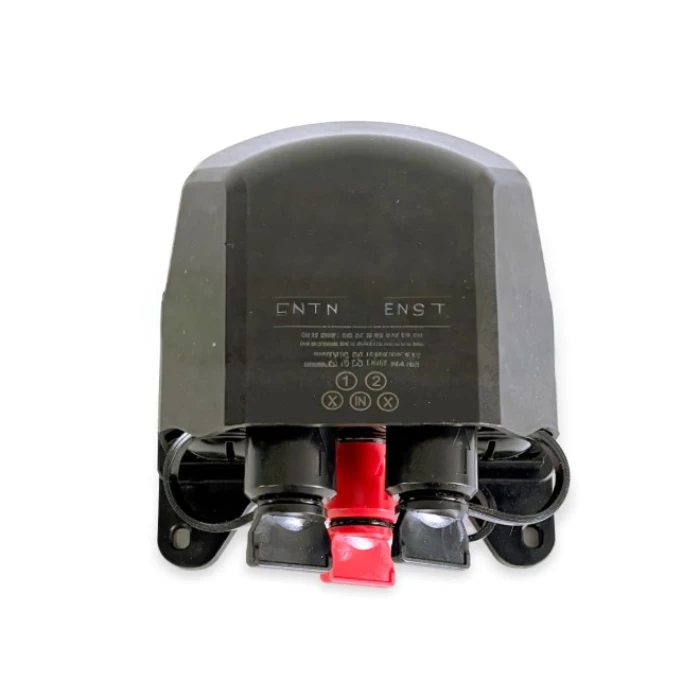

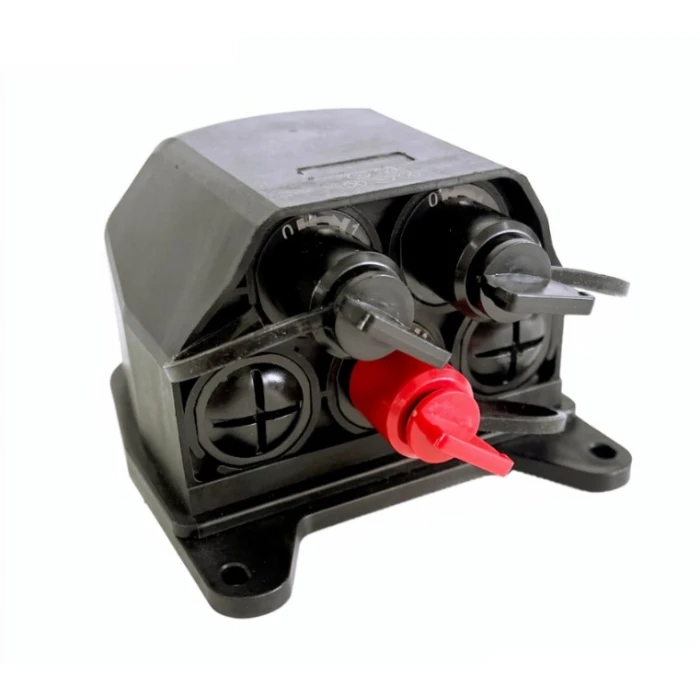

4 Port IP68 FTTH Fiber Access Terminal Box with PLC Splitter Support
Categories:
Product Highlights:
- 4-port FTTH fiber access terminal box
- IP68 fully sealed waterproof design
- Supports 1×2 / 1×4 PLC splitters
- Rugged PP+GF welded enclosure
- Ideal for harsh outdoor FTTH deployments
Table of Contents
Description
The 4-Port IP68 FTTH Fiber Access Terminal Box is a compact and fully sealed fiber distribution enclosure designed for reliable last-mile connectivity in FTTx networks. It functions as an access node for fiber termination, splitting, and distribution of pre-connected drop cables, ensuring stable optical performance in outdoor environments. With support for 1×2 or 1×4 PLC splitters, it offers flexible network configuration options for different deployment requirements. Built from high-strength PP+GF material with a non-detachable hot-plate welded structure, the enclosure provides excellent mechanical durability and sealing reliability. Its IP68 rating ensures full protection against dust and long-term water immersion, making it suitable for harsh outdoor installations such as pole-mounted, strand-mounted, and wall-mounted applications.
Specification
| Port Count | 4 Ports |
|---|---|
| Splitter Capacity | 1×2 or 1×4 PLC Splitter |
| Adapters | 5 pcs reinforced adapters |
| Material | PP+GF (Polypropylene + Glass Fiber) |
| Dimensions | 136 × 100 × 69 mm |
| Ingress Protection | IP68 |
| Sealing Type | Mechanical seal + welded structure |
| Cable Compatibility | φ2×3 mm flat, φ5×3 mm round, φ5.2 mm |
| Structure | Non-detachable hot plate welded body |
| Operating Temperature | -45°C to +65°C |
Features
- 4-port compact FTTH fiber access terminal design
- IP68-rated waterproof and dustproof sealing
- Supports 1×2 and 1×4 PLC splitter configurations
- Fully sealed hot-plate welded enclosure structure
- High-strength PP+GF rugged housing material
- Compatible with multiple drop cable types
- Optimized internal fiber routing and protection
- Suitable for customizable FTTH deployment solutions
Application
- FTTH last-mile access networks
- Outdoor fiber distribution points
- Rural and urban broadband deployment
- Pole-mounted and wall-mounted installations
- FTTx subscriber connection nodes
FAQ
Q1: What splitter types does this terminal box support?
A1: It supports 1×2 and 1×4 PLC splitters for flexible network distribution.
Q2: Is this enclosure suitable for harsh outdoor environments?
A2: Yes, the IP68 rating ensures complete protection against dust and long-term water immersion.
Q3: What installation methods are supported?
A3: It can be installed in pole-mounted, strand-mounted, or wall-mounted configurations.
Q4: What material is used for the housing?
A4: It is made of high-strength PP+GF with a welded sealing structure for durability.
Q5: Can the product be customized?
A5: Yes, it supports OEM customization including adapter types, splitter integration, and mounting accessories.
FTTA MST Boxes Comparison Table
| SKU | Fiber Capacity | External Ports | Connector Interface | Internal Configuration | Splitter | IP Rating | Mounting |
| MST01-24MAMLCSL | 24 | 12 | OptiTap MPO | Yes/Optional | 2MPO – 24 LC Harness | IP68/IP67 | Pole/Wall Mount |
| MST01-4MAMSASL-P30FT | 4 | 4 | OptiTap SC/APC | Yes/Optional | 1 to 4 | IP67 | Pole/Wall Mount |
| MST011-816PSCA | 8 | 4 or 8 | Customed | Optional | Optional | Optioanl | Wall Mount |
| MST013-16PMSC | 16 | 16 | Mini SC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST015-12P19 | 12 to 24 | 12 | Customed | Optional | 1:09 | IP68 | Wall Mount |
| MST016-1016PSA | 10 to 16 | 8 | SC/APC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST017-10PFAT | 10 | 10 | Customed | Optional | Optional | IP68 | Pole/Wall Mount |
| MST02-12MAMLCSL | 12 | 6 | OptiTap MPO | Pre-terminated | Optional | IP67 | Wall Mount |
| MST020-12A | 24 | 24 | Hardened Adapter | Pre-terminated | 2 to 24 | IP68/IP67 | Wall Mount |
| MST022-12P | 12 | 12 | Mini SC Harneded | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST024-24C | 8 to 16 | 8 | SuperTap | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST023-16PSC | 16 | 16 | SC FastConnector | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST04-M16ST | 6 | 6 | SuperTap | Pre-terminated | PLC | IP67 | na |
| MST06-68 | 4 to 12 | 4/5/8/12 | SuperTap | Pre-terminated | PLC | IP68 | Wall Mount |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
