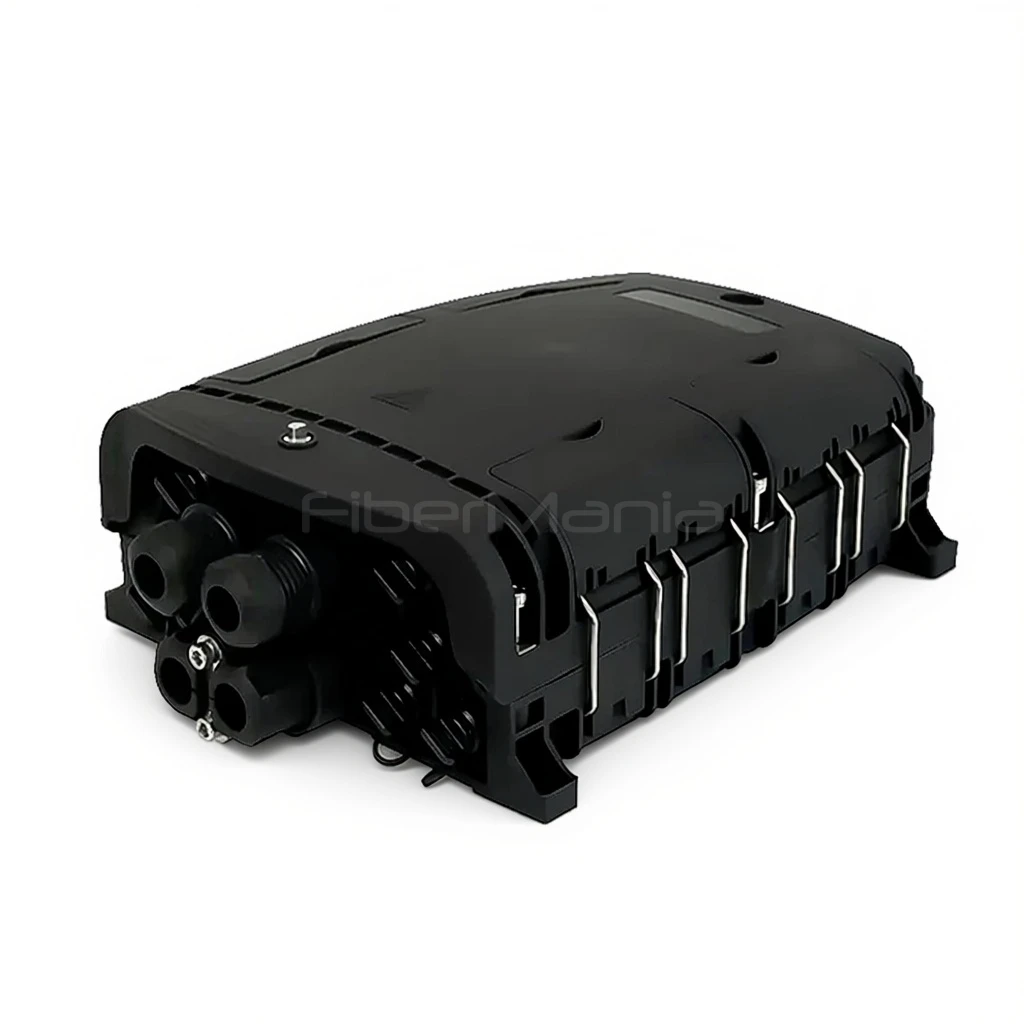

8-port FastConnect pre-connectorized fiber distribution box with SC/APC hardened adapters IP68 for outdoor FTTH network deployment

IP68 8 Ports FastConnect Pre-Connectorized Fiber Distribution Box with Hardened SC/APC Adapters

Name: 8-Port FastConnect Fiber Distribution Box SC/APC IP68
SKU: MST014-8PHSA

P/N: MST014-8PHSA

Categories:

MST Boxes

Product Highlights:

8-port FastConnect fiber distribution box
SC/APC hardened pre-connectorized interface
IP68 waterproof and dustproof design
Plug-and-play installation, no splicing required
Rugged PP+GF enclosure for outdoor FTTH networks

Description

The IP68 8-Port FastConnect Pre-Connectorized Fiber Distribution Box is a compact and rugged FTTH access solution designed for fast and efficient outdoor fiber deployment. It acts as a reliable distribution node connecting feeder and drop cables while integrating fiber splicing, splitting, and cable management within a single sealed enclosure. With pre-connectorized hardened SC/APC interfaces, it enables true plug-and-play installation, eliminating the need for extensive field fusion splicing and significantly reducing deployment time and labor costs. Built from high-strength PP+GF material and rated IP68, the enclosure provides full protection against dust, water immersion, and harsh environmental conditions, ensuring stable long-term performance in demanding telecom and broadband access networks.

Installation Method of 8-16 Ports Terminal Box

Installation 8-16 Ports IP Terminal Box

Specification

Port Capacity	8 Ports (Hardened SC/APC Adapters)
Maximum Capacity	48 cores
Splice Trays	4 × 12F
Splitter Support	Up to 4 × 1×8 PLC splitters (optional)
Material	PP + GF (Glass Fiber Reinforced Polypropylene)
Protection Rating	IP68
Dimensions	380 × 256 × 118 mm
Cable Entry	Ø8–14 mm (round), Ø16 mm (branch), mid-span support
Cable Routing	Main / Distribution / Drop paths

Features

8-port FastConnect pre-connectorized fiber distribution design
Hardened SC/APC adapter interface for plug-and-play use
IP68-rated waterproof and dustproof protection
No field fusion splicing required
High-strength PP+GF rugged enclosure material
Integrated fiber splicing, splitting, and cable management
Optimized internal routing with bend radius protection
Supports OEM customization and flexible configurations

Application

FTTH last-mile fiber access networks
Outdoor telecom and ISP distribution systems
FTTx network deployment projects
Residential and commercial broadband infrastructure
Aerial, pole-mounted, and wall-mounted installations

FAQ

Q1: Does this distribution box require fiber fusion splicing on site?
A1: No, it uses pre-connectorized SC/APC hardened interfaces, enabling plug-and-play installation without fusion splicing.

Q2: Is this enclosure suitable for harsh outdoor environments?
A2: Yes, it is IP68 rated and designed to withstand dust, water immersion, and extreme weather conditions.

Q3: What type of connectors does it support?
A3: It supports hardened SC/APC FastConnect pre-connectorized adapters.

Q4: Can it be used in FTTH network deployments?
A4: Yes, it is specifically designed for FTTH last-mile access and FTTx distribution networks.

Q5: Is customization available for this product?
A5: Yes, OEM customization options are available for port configuration, labeling, and internal layout.

FTTA MST Boxes Comparison Table

SKU	Fiber Capacity	External Ports	Connector Interface	Internal Configuration	Splitter	IP Rating	Mounting
MST01-24MAMLCSL	24	12	OptiTap MPO	Yes/Optional	2MPO – 24 LC Harness	IP68/IP67	Pole/Wall Mount
MST01-4MAMSASL-P30FT	4	4	OptiTap SC/APC	Yes/Optional	1 to 4	IP67	Pole/Wall Mount
MST011-816PSCA	8	4 or 8	Customed	Optional	Optional	Optioanl	Wall Mount
MST013-16PMSC	16	16	Mini SC	Splice Tray	Optional	IP68	Pole/Wall Mount/Aerial
MST015-12P19	12 to 24	12	Customed	Optional	1:09	IP68	Wall Mount
MST016-1016PSA	10 to 16	8	SC/APC	Splice Tray	Optional	IP68	Pole/Wall Mount/Aerial
MST017-10PFAT	10	10	Customed	Optional	Optional	IP68	Pole/Wall Mount
MST02-12MAMLCSL	12	6	OptiTap MPO	Pre-terminated	Optional	IP67	Wall Mount
MST020-12A	24	24	Hardened Adapter	Pre-terminated	2 to 24	IP68/IP67	Wall Mount
MST022-12P	12	12	Mini SC Harneded	Pre-terminated	Optional	IP68/IP67	Wall Mount
MST024-24C	8 to 16	8	SuperTap	Pre-terminated	Optional	IP68/IP67	Wall Mount
MST023-16PSC	16	16	SC FastConnector	Pre-terminated	Optional	IP68/IP67	Wall Mount
MST04-M16ST	6	6	SuperTap	Pre-terminated	PLC	IP67	na
MST06-68	4 to 12	4/5/8/12	SuperTap	Pre-terminated	PLC	IP68	Wall Mount

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
