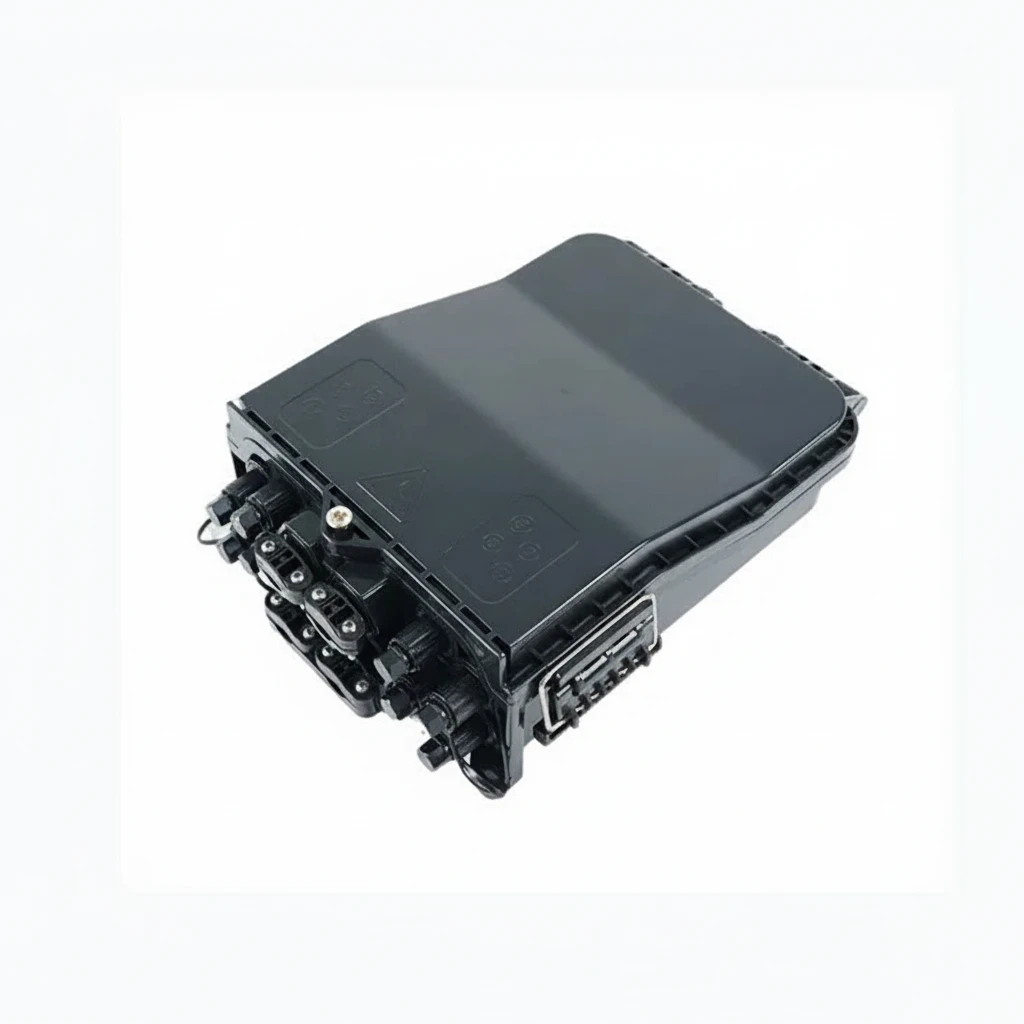

16 Core Pre-connectorized Fiber NAP Box with Hardened SC/APC Adapters
Categories:
Product Highlights:
- 16-core efficient fiber access design
- Pre-connectorized SC/APC plug-and-play system
- IP65 protection for harsh environments
- Fast deployment with reduced installation effort
- Stable and organized fiber management structure
Table of Contents
Description
This 16 core pre-connectorized fiber NAP box with hardened SC/APC adapters is a compact and efficient fiber termination and distribution solution designed for FTTH and FTTx access networks. It acts as a key interface between feeder cables and drop cables, integrating splicing, splitting, and distribution functions within a sealed and organized enclosure. By using pre-connectorized hardened adapters, it eliminates the need for field termination, significantly reducing installation time and improving deployment consistency. With its IP65-rated housing and durable construction, the enclosure ensures reliable performance in outdoor environments exposed to dust, moisture, and temperature variations, making it ideal for last-mile fiber access applications.
16 Core Pre-connectorized Fiber NAP Box Installation
Specification
| Dimensions | 319 × 215 × 133 mm |
|---|---|
| Gross Weight | 3.3 kg |
| Material | PC + ABS |
| Adapter | 16 pcs IP68 Hardened SC/APC |
| Cable Entry | 1 oval (Φ8–16 mm), 2 branch (Φ8–12 mm) |
| Splitter Support | 2 × 1×8 or 1 × 1×16 PLC splitter |
| Splicing Tray | 12 fibers per tray |
| Max Capacity | 72 fibers |
| Waterproof Level | IP65 |
| Installation Method | Pole / Wall / Aerial Mounting |
| Operating Temperature | -45°C to +85°C |
| Working Temperature | -40°C to +85°C |
| Humidity | ≤85% (+30°C) |
| Atmospheric Pressure | 70KPa ~ 106KPa |
| Insertion Loss | ≤0.15 dB |
| Return Loss (UPC) | ≥50 dB |
| Return Loss (APC) | ≥60 dB |
| Insulation Resistance | ≥2 MΩ / 500V (DC) |
| Voltage Resistance | ≥3000V (DC) / min |
Features
- 16-core fiber distribution capacity
- Pre-connectorized hardened SC/APC adapter system
- Supports plug-and-play FTTH deployment
- Integrated splicing and distribution design
- IP65-rated protection for outdoor use
- Compact and structured internal cable management
- Reduces field installation time and labor cost
- Durable housing for long-term network stability
Application
- FTTH last-mile access networks
- FTTx fiber distribution systems
- Residential broadband deployment
- Telecom outdoor access points
- Fiber-to-the-building (FTTB) networks
- Smart city fiber infrastructure
- Rural broadband expansion projects
FAQ
Q1: What does “pre-connectorized” mean in this NAP box?
A1: It means the enclosure uses factory-terminated hardened SC/APC connectors, allowing plug-and-play installation without field splicing.
Q2: Can this NAP box be used outdoors?
A2: Yes, it features an IP65-rated enclosure designed to withstand dust, rain, and outdoor environmental conditions.
Q3: What networks is it suitable for?
A3: It is mainly used in FTTH and FTTx networks for fiber access and last-mile distribution.
Q4: Does it support splicing inside the enclosure?
A4: Yes, it supports internal fiber management including splicing, routing, and distribution functions.
Q5: What is the main advantage over traditional NAP boxes?
A5: It significantly reduces installation time and complexity by eliminating field termination through pre-connectorized hardened adapters.
FTTA MST Boxes Comparison Table
| SKU | Fiber Capacity | External Ports | Connector Interface | Internal Configuration | Splitter | IP Rating | Mounting |
| MST01-24MAMLCSL | 24 | 12 | OptiTap MPO | Yes/Optional | 2MPO – 24 LC Harness | IP68/IP67 | Pole/Wall Mount |
| MST01-4MAMSASL-P30FT | 4 | 4 | OptiTap SC/APC | Yes/Optional | 1 to 4 | IP67 | Pole/Wall Mount |
| MST011-816PSCA | 8 | 4 or 8 | Customed | Optional | Optional | Optioanl | Wall Mount |
| MST013-16PMSC | 16 | 16 | Mini SC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST015-12P19 | 12 to 24 | 12 | Customed | Optional | 1:09 | IP68 | Wall Mount |
| MST016-1016PSA | 10 to 16 | 8 | SC/APC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST017-10PFAT | 10 | 10 | Customed | Optional | Optional | IP68 | Pole/Wall Mount |
| MST02-12MAMLCSL | 12 | 6 | OptiTap MPO | Pre-terminated | Optional | IP67 | Wall Mount |
| MST020-12A | 24 | 24 | Hardened Adapter | Pre-terminated | 2 to 24 | IP68/IP67 | Wall Mount |
| MST022-12P | 12 | 12 | Mini SC Harneded | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST024-24C | 8 to 16 | 8 | SuperTap | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST023-16PSC | 16 | 16 | SC FastConnector | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST04-M16ST | 6 | 6 | SuperTap | Pre-terminated | PLC | IP67 | na |
| MST06-68 | 4 to 12 | 4/5/8/12 | SuperTap | Pre-terminated | PLC | IP68 | Wall Mount |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
