FTTx Pre-Connectorized NAP CTO Terminal Box with 8-Port Mini SC/APC Waterproof Adapters
Categories:
Product Highlights:
- 8-port pre-connectorized CTO terminal box
- Mini SC/APC waterproof external access ports
- IP68-rated outdoor protection design
- No need to open enclosure for installation
- Supports PLC splitter integration and FTTH deployment
Table of Contents
Description
The FTTx Pre-Connectorized NAP CTO Terminal Box (Model SP-NAP-8H) is a compact and high-efficiency fiber access enclosure designed for FTTH and FTTx network deployment, providing a reliable termination point between feeder and drop cables. It integrates pre-connectorized SC/APC waterproof ports, enabling external plug-and-play connectivity without opening the enclosure during installation or maintenance, which significantly improves deployment efficiency and reduces labor requirements. Supporting fiber splicing, splitting, and structured cable management within a sealed housing, it ensures stable optical performance and organized routing. With IP68-rated protection and a durable enclosure design, it is suitable for indoor and outdoor applications including wall, pole, aerial, and underground installations in modern last-mile broadband networks.

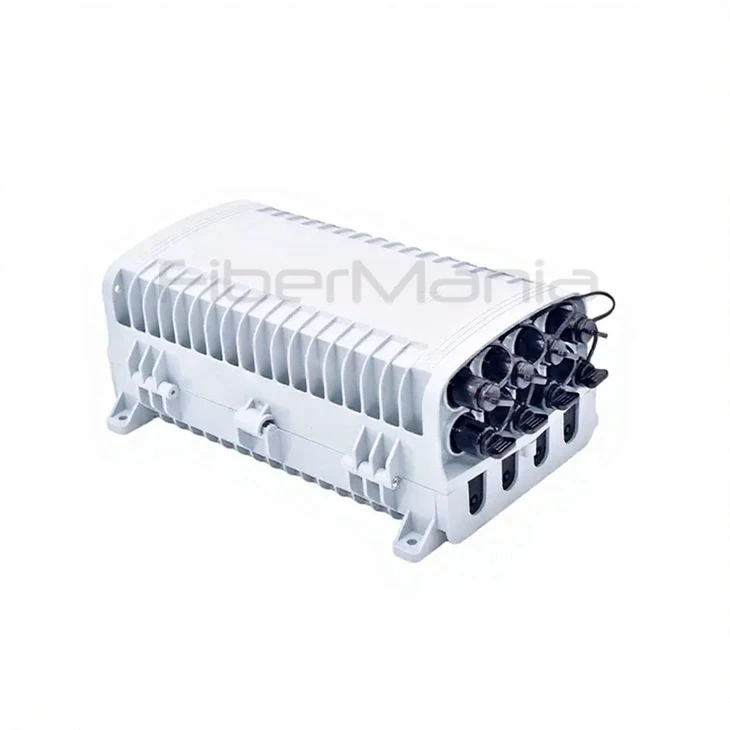

FTTx Pre-Connectorized NAP CTO Terminal Box
Specification
| Input Ports | 4 Cable Inlet Ports |
|---|---|
| Output Ports | 8 Mini SC/APC Waterproof Adapters |
| Splice Capacity | 36F |
| Material | ABS / ABS + PC |
| Dimensions | 312.95 × 194.65 × 119.85 mm |
| Protection Rating | IP68 |
| Splitter Support | 1×4 or 1×8 blockless PLC splitter |
| Insertion Loss | ≤ 0.2 dB (1310nm & 1550nm) |
| Installation Methods | Wall / Pole Mounted |
Features
- 8-port pre-connectorized NAP CTO terminal design
- Mini SC/APC waterproof external-access adapters
- IP68-rated sealing for outdoor protection
- Plug-and-play installation without opening enclosure
- Supports PLC splitter integration

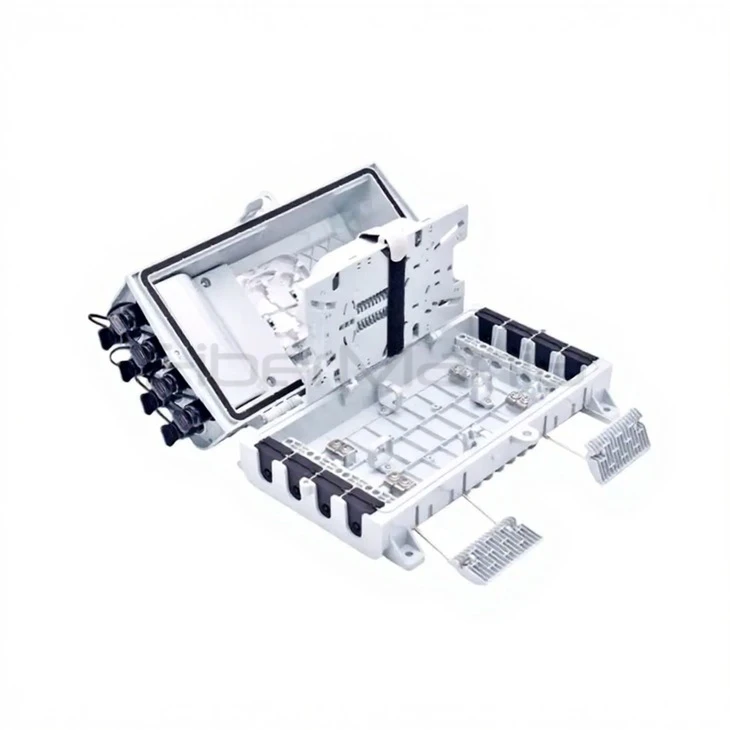

- Integrated fiber splicing and cable management system
- Multiple cable entry and routing paths
- Suitable for FTTH/FTTx scalable deployments
Application
- FTTH last-mile fiber access networks
- FTTx distribution and termination points
- Outdoor telecom and ISP network deployment
- Aerial, pole, wall, and underground installations
- Residential and commercial broadband connectivity systems
FAQ
Q1: Does this CTO box need to be opened during installation?
A1: No, it uses external waterproof SC/APC ports, allowing plug-and-play installation without opening the enclosure.
Q2: What type of connectors does it support?
A2: It supports mini SC/APC waterproof pre-connectorized adapters.
Q3: Can PLC splitters be installed inside the box?
A3: Yes, it is designed to support PLC splitters for flexible network distribution.
Q4: Is it suitable for outdoor environments?
A4: Yes, the IP68 rating ensures full protection against water, dust, and harsh weather conditions.
Q5: What installation methods are supported?
A5: It supports wall-mounted, pole-mounted, aerial, and underground installation scenarios.
FTTA MST Boxes Comparison Table
| SKU | Fiber Capacity | External Ports | Connector Interface | Internal Configuration | Splitter | IP Rating | Mounting |
| MST01-24MAMLCSL | 24 | 12 | OptiTap MPO | Yes/Optional | 2MPO – 24 LC Harness | IP68/IP67 | Pole/Wall Mount |
| MST01-4MAMSASL-P30FT | 4 | 4 | OptiTap SC/APC | Yes/Optional | 1 to 4 | IP67 | Pole/Wall Mount |
| MST011-816PSCA | 8 | 4 or 8 | Customed | Optional | Optional | Optioanl | Wall Mount |
| MST013-16PMSC | 16 | 16 | Mini SC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST015-12P19 | 12 to 24 | 12 | Customed | Optional | 1:09 | IP68 | Wall Mount |
| MST016-1016PSA | 10 to 16 | 8 | SC/APC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST017-10PFAT | 10 | 10 | Customed | Optional | Optional | IP68 | Pole/Wall Mount |
| MST02-12MAMLCSL | 12 | 6 | OptiTap MPO | Pre-terminated | Optional | IP67 | Wall Mount |
| MST020-12A | 24 | 24 | Hardened Adapter | Pre-terminated | 2 to 24 | IP68/IP67 | Wall Mount |
| MST022-12P | 12 | 12 | Mini SC Harneded | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST024-24C | 8 to 16 | 8 | SuperTap | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST023-16PSC | 16 | 16 | SC FastConnector | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST04-M16ST | 6 | 6 | SuperTap | Pre-terminated | PLC | IP67 | na |
| MST06-68 | 4 to 12 | 4/5/8/12 | SuperTap | Pre-terminated | PLC | IP68 | Wall Mount |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
