Mini Hardened MST Terminal Box for FTTH Access Networks 2–12 Ports Gel-Sealed Re-enterable
Categories:
Product Highlights:
- Gel-sealed design for reliable outdoor protection
- Re-enterable for easy maintenance and reuse
- Flexible 2–12 port configurations
- Supports splitters and CWDM modules
- Ideal for FTTH and FTTx access networks
Table of Contents
Description

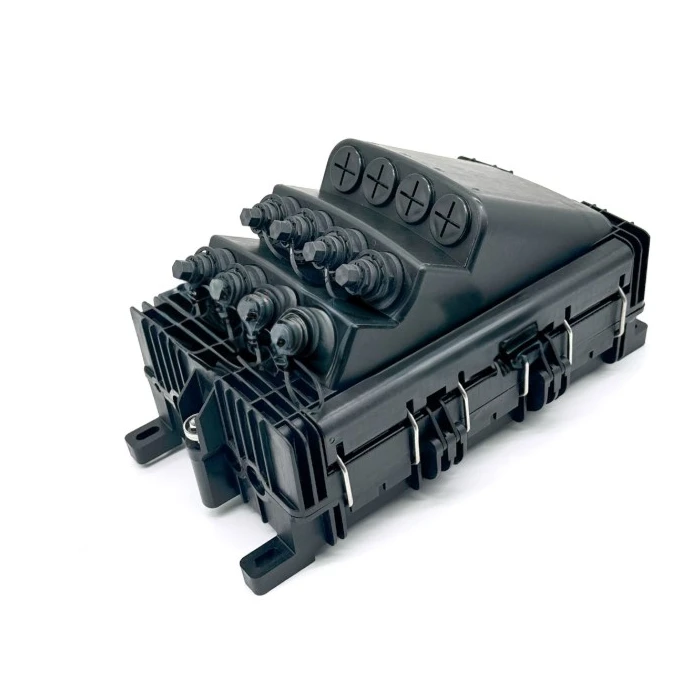

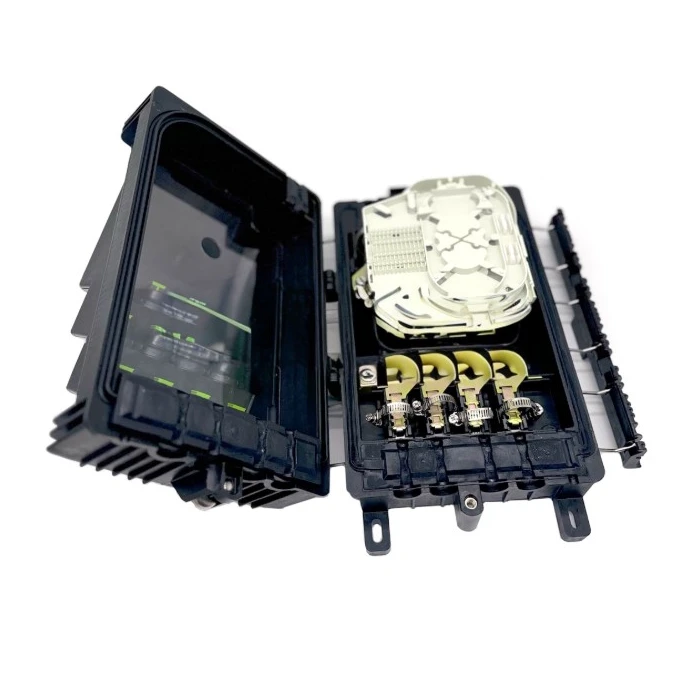

The Mini Hardened MST Terminal Box is a compact and re-enterable fiber distribution enclosure designed for FTTH and FTTx access networks. It provides a reliable interface for connecting feeder and drop cables while supporting fiber splicing, splitting, and signal management within a single sealed unit. Featuring a gel-sealed structure for enhanced environmental protection, it ensures stable performance in both indoor and outdoor deployments. With flexible port configurations from 2 to 12 hardened ports and compatibility with SC/APC connectors, the enclosure supports various splitter options and CWDM modules, making it ideal for scalable and efficient fiber network expansion.
Dimension of Mini Hardened MST Box
Installation Method of Mini Hardened MST Box for Pedestal Mounting with Brackets
Installation Method of Mini Hardened MST Box for Strand Mounting
Installation Method of Mini Hardened MST Box
Specification
| Port Configuration | 2 / 4 / 6 / 8 / 12 hardened DLX ports |
|---|---|
| Connector Type | SC/APC hardened (DLX® full-size or mini) |
| Material | High-strength PP engineering plastic |
| Sealing Method | Gel-sealed cable entry system |
| Splice Capacity | Up to 40 single-fiber splices |
| Splitter Support | 1×2, 1×4, 1×8 (field or factory installed) |
| CWDM Support | 2 / 4 / 8 channel compact modules |
| Dimensions (A×B×C) | 342 × 201 × 177 mm |
| Installation Methods | Wall, pole, aerial, pedestal, handhole |
| Cable Compatibility | Flat drop, loose tube, central tube, ribbon fiber |
| Enclosure Type | Re-enterable hinged design |
| Standards | Telcordia GR-771-CORE compliant |
Features
- Compact and space-saving hardened MST design
- Gel-sealed structure for superior environmental protection
- Re-enterable enclosure for easy maintenance and upgrades
- Supports 2 to 12 hardened adapter ports
- Compatible with SC/APC hardened connectors
- Supports 1×2, 1×4, 1×8 splitters and CWDM modules
- Suitable for indoor and outdoor installations
- Wide compatibility with different fiber types and cable sizes
- OEM and customized configurations available
Applications
- FTTH access network deployment
- FTTx fiber distribution points
- Outdoor aerial and wall-mounted installations
- Fiber drop cable connection and management
- Broadband network expansion projects
- Telecom and data communication networks
FAQ
Q1: What type of connectors does this terminal box support?
A1: It is compatible with SC/APC hardened connectors, ensuring secure and low-loss connections in outdoor environments.
Q2: Can the box be reopened after installation?
A2: Yes, it features a re-enterable design, allowing easy maintenance, upgrades, or troubleshooting without replacing the enclosure.
Q3: What splitter options are supported?
A3: The box supports 1×2, 1×4, and 1×8 splitters, and can also accommodate compact CWDM modules for flexible network design.
Q4: Is it suitable for outdoor use?
A4: Yes, the gel-sealed structure provides excellent protection against moisture, dust, and harsh environmental conditions.
Q5: Can this product be customized?
A5: Yes, OEM and project-specific customization options are available, including port configuration, cable compatibility, and internal layout.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
