8/16 Port FTTA Fiber NAP Box with Pre-connectorized Adapters and PLC Splitter Integration
Categories:
Product Highlights:
- Flexible 8/16 port FTTA fiber distribution design
- Integrated PLC splitter for scalable optical networks
- Pre-connectorized system enables plug-and-play deployment
- No enclosure opening required during installation
- Durable PC+ABS housing for long-term outdoor use
- Organized internal routing for clean fiber management
Table of Contents
Description
The 8/16 Port FTTA Fiber NAP Box is a versatile and high-efficiency fiber termination and distribution solution designed for modern FTTx and FTTA network deployments. It functions as a key access point between feeder and drop cables, integrating fiber splitting, routing, protection, and management within a compact, fully enclosed structure. Featuring a pre-connectorized design with PLC splitter integration, the enclosure enables true plug-and-play installation without the need to open the box during deployment, significantly improving installation speed and reducing labor costs. Manufactured from durable PC+ABS material, it provides strong resistance to moisture, dust, and long-term environmental aging. Its intelligently designed internal layout separates feeder cables, pigtails, and patch cords into independent routing paths, ensuring clean organization, simplified maintenance, and reliable long-term network performance for both indoor and outdoor applications.

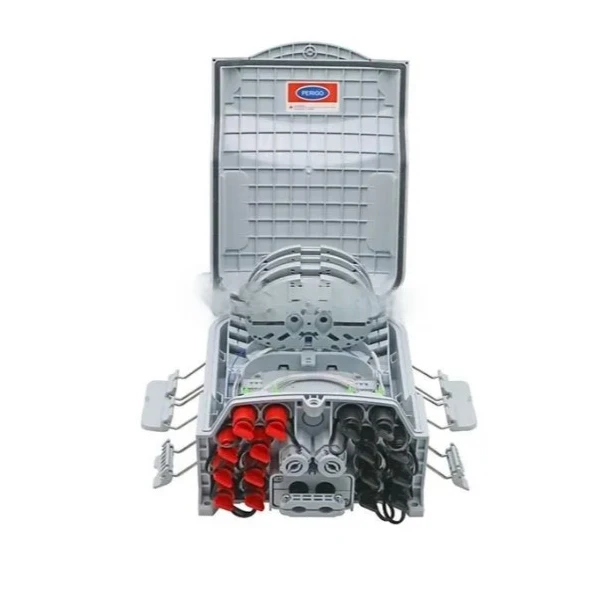

16 Port FTTA Fiber NAP Box Inner Structure:
8 16 Port FTTA Fiber NAP Box Size:
Aerial Mounting Installation
Pole-mounted installation
Specification
| Dimensions | 319 × 214 × 133 mm |
|---|---|
| Max Capacity | 48 fibers |
| Splice Tray | 4 pcs (12 fibers per tray) |
| Adapter Capacity | 16 waterproof adapters |
| Splitter Support | 2 × 1×8 mini PLC splitters |
| Input Cable Diameter | 8–14 mm (uncut) |
| Branch Cable Diameter | Up to 16 mm |
| Color | Grey |
| Protection Level | IP65 |
| Working Temperature | -40°C to +85°C |
| Relative Humidity | ≤85% (+30°C) |
| Atmospheric Pressure | 70–106 KPa |
| Installation | Wall / Pole / Aerial mounting |
| Installation Size | 52 × 166 × 166 mm |
Features
- Supports flexible 8-port and 16-port FTTA fiber access configurations
- Integrated PLC splitter for efficient optical signal distribution
- Pre-connectorized plug-and-play design for fast installation
- No need to open enclosure during deployment
- High-strength PC+ABS housing for outdoor durability
- Independent internal routing for feeder, pigtail, and drop cables
- Strong resistance to moisture, dust, and environmental aging
- Suitable for both indoor and outdoor wall-mounted deployments
Applications
- FTTH last-mile fiber access networks
- FTTA wireless base station connectivity
- FTTx broadband distribution systems
- Residential and commercial building fiber networks
- ISP subscriber access points
- Smart city infrastructure deployments
- Network expansion and maintenance projects
FAQ
Q1: What is the advantage of pre-connectorized design in this NAP box?
It allows plug-and-play installation without opening the enclosure, significantly reducing installation time and maintaining environmental sealing.
Q2: Does this product support PLC splitters?
Yes. It is designed with integrated PLC splitter compatibility for efficient multi-user fiber distribution.
Q3: Can the box be used outdoors?
Yes. The PC+ABS material and sealed structure provide excellent protection against moisture, dust, and environmental aging.
Q4: What port configurations are available?
It supports flexible 8-port or 16-port configurations depending on deployment requirements.
Q5: How does it improve maintenance efficiency?
The internal cable routing system separates different fiber paths, making troubleshooting and upgrades easier without disrupting existing connections.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
