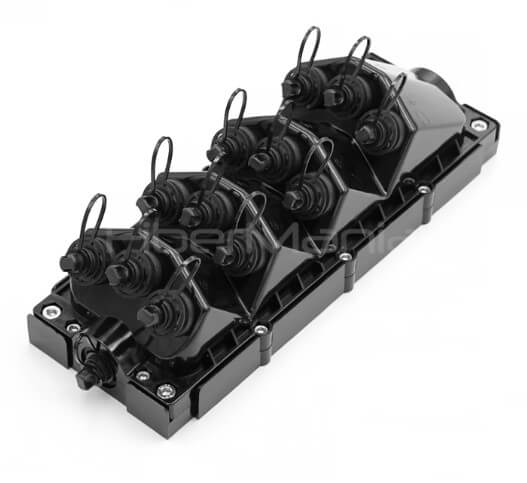

12-Port FTTA Multiport Fiber Distribution Terminal with Pre-Installed 24-Core OptiTap/MPO–LC Patch Cords

Name: 12-Port FTTA Multiport Fiber Distribution Terminal with
SKU: MST01-24MAMLCSL

P/N: MST01-24MAMLCSL

Categories:

MST Boxes

Product Highlights:

The FiberMania 12-Port FTTA Multiport Terminal delivers a fully pre-terminated, ready-to-install fiber distribution solution for outdoor FTTx and telecom networks. With its 24-core OptiTap/MPO to LC configuration, IP67 protection, and modular design, it ensures high reliability, rapid deployment, and minimal on-site splicing. Ideal for base stations, broadband networks, and industrial applications.

Description

The FiberMania 12-Port FTTA Multiport Fiber Distribution Terminal provides a compact, high-density fiber access solution for outdoor FTTx and wireless communication networks. Factory pre-terminated with 24-core OptiTap or MPO to LC patch cords, this enclosure ensures fast deployment, stable performance, and reduced field splicing. Its IP67-rated housing, made of durable PC material, guarantees reliable protection against dust, water, and extreme weather conditions, while its versatile mounting options make it ideal for a wide range of outdoor applications.

Designed for scalability and simplicity, the terminal supports multiple configurations—from 2 to 12 ports—and can accommodate PLC splitters or pigtail assemblies. Each unit is fully tested and delivered ready to install, minimizing setup time and ensuring superior optical performance.

Specification

Ports	12 ports (OptiTap or MPO adapters)
Fiber Count	24 cores (LC/UPC)
Fiber Type	OS2 single-mode, 9/125 µm
Dimensions (L×W×H)	365×137×90 mm (without cover); 375×142×120 mm (with cover)
Material	High-strength PC
Protection Level	IP67
Mounting Type	Wall mount / Pole mount / Aerial
Operating Temperature	-40°C ~ +80°C
Compatibility	Supports PLC splitter, pigtail, or splice sleeve
Mechanical Durability	500+ mating cycles
Standards Compliance	RoHS, UL 94V-0, GR-771

Features

Pre-Terminated Solution: Fully installed with 24-core OptiTap/MPO to LC patch cords for plug-and-play deployment.
High Density & Flexibility: Supports up to 12 ports for single or multi-fiber connections.
Rugged Outdoor Protection: IP67-rated enclosure ensures dustproof, waterproof, and UV-resistant performance.
Robust Construction: Made from high-strength PC material with long-term tensile strength up to 1200N.
Versatile Mounting Options: Supports wall, pole, or aerial installation for flexible deployment.
Integrated Fiber Management: Compatible with PLC splitters, splice sleeves, or pigtail storage.
Low Maintenance: Compact design with reinforced adapters for secure connections and easy servicing.
Temperature Endurance: Operates reliably from -40°C to +80°C in harsh outdoor environments.

Applications

FTTA (Fiber to the Antenna) and FTTH (Fiber to the Home) network expansion
Outdoor fiber access points for telecom, CATV, and broadband providers
Wireless base stations, small cell backhaul, and distributed antenna systems
Rural broadband and smart city network deployments
Industrial and transportation communication networks

FTTA MST Boxes Comparison Table

SKU	Fiber Capacity	External Ports	Connector Interface	Internal Configuration	Splitter	IP Rating	Mounting
MST01-24MAMLCSL	24	12	OptiTap MPO	Yes/Optional	2MPO – 24 LC Harness	IP68/IP67	Pole/Wall Mount
MST01-4MAMSASL-P30FT	4	4	OptiTap SC/APC	Yes/Optional	1 to 4	IP67	Pole/Wall Mount
MST011-816PSCA	8	4 or 8	Customed	Optional	Optional	Optioanl	Wall Mount
MST013-16PMSC	16	16	Mini SC	Splice Tray	Optional	IP68	Pole/Wall Mount/Aerial
MST015-12P19	12 to 24	12	Customed	Optional	1:09	IP68	Wall Mount
MST016-1016PSA	10 to 16	8	SC/APC	Splice Tray	Optional	IP68	Pole/Wall Mount/Aerial
MST017-10PFAT	10	10	Customed	Optional	Optional	IP68	Pole/Wall Mount
MST02-12MAMLCSL	12	6	OptiTap MPO	Pre-terminated	Optional	IP67	Wall Mount
MST020-12A	24	24	Hardened Adapter	Pre-terminated	2 to 24	IP68/IP67	Wall Mount
MST022-12P	12	12	Mini SC Harneded	Pre-terminated	Optional	IP68/IP67	Wall Mount
MST024-24C	8 to 16	8	SuperTap	Pre-terminated	Optional	IP68/IP67	Wall Mount
MST023-16PSC	16	16	SC FastConnector	Pre-terminated	Optional	IP68/IP67	Wall Mount
MST04-M16ST	6	6	SuperTap	Pre-terminated	PLC	IP67	na
MST06-68	4 to 12	4/5/8/12	SuperTap	Pre-terminated	PLC	IP68	Wall Mount

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
