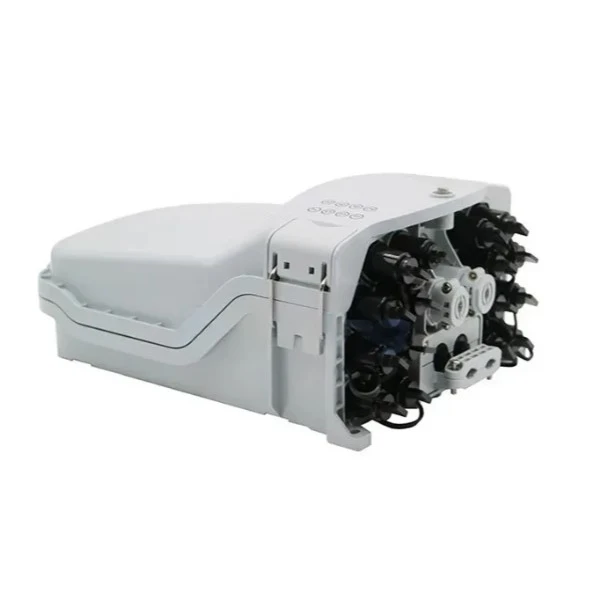

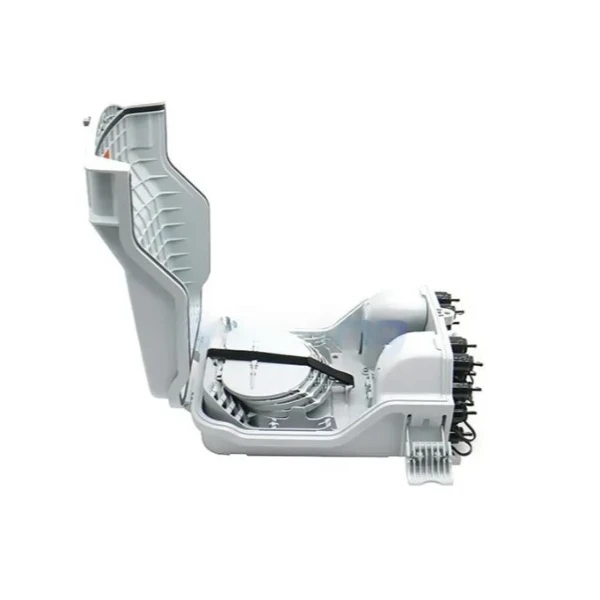

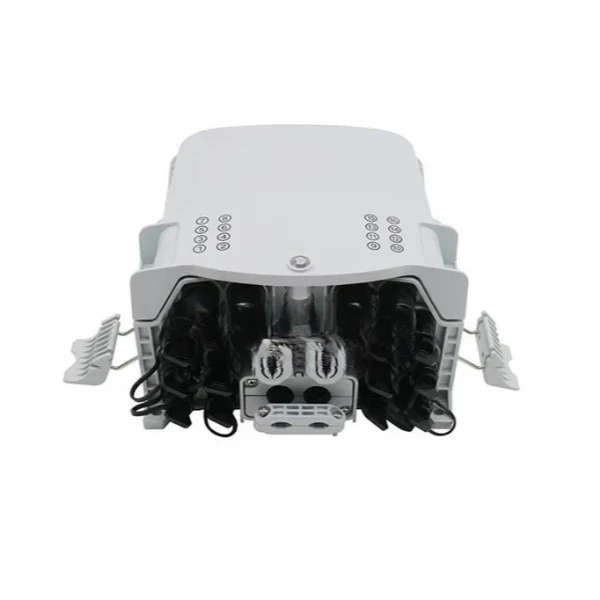

FTTH Wall Mounted 16 Port Fiber NAP Box with PLC Splitter and Waterproof Adapters
Categories:
Product Highlights:
- 16-port high-density FTTH distribution capability
- Integrated PLC splitter for efficient optical splitting
- Plug-and-play waterproof adapter system for fast deployment
- Sealed enclosure design ensures long-term environmental protection
- No need to open box during installation or maintenance setup
- Structured internal cable management for clean routing
Table of Contents
Description
The FTTH Wall Mounted 16 Port Fiber NAP Box is a high-reliability fiber access and distribution solution designed for FTTH and FTTx network deployments. It functions as a central termination point between feeder cables and multiple drop cables, integrating fiber splitting, termination, and management within a compact, fully enclosed structure. The pre-connectorized and waterproof adapter design enables true plug-and-play installation without the need to open the enclosure during deployment, greatly improving installation efficiency and reducing field labor requirements. Manufactured from durable PC+ABS material, the enclosure provides strong resistance to moisture, dust, and environmental aging, ensuring stable long-term performance in both indoor and outdoor environments. Its optimized internal routing system separates feeder cables, pigtails, and patch cords into organized pathways, simplifying maintenance and enhancing network reliability over time.
Specification
| Material | PC + ABS |
|---|---|
| Dimensions | 319 × 214 × 133 mm |
| Max Capacity | 48 fibers |
| Splice Tray | 4 pcs (12 fibers per tray) |
| Adapter Capacity | 16 waterproof adapters |
| Splitter Support | 2 × 1×8 mini PLC splitters |
| Input Cable Diameter | 8–14 mm |
| Branch Cable Diameter | Up to 16 mm |
| Color | Grey |
| Protection Level | IP65 |
| Working Temperature | -40°C to +85°C |
| Relative Humidity | ≤85% (+30°C) |
| Atmospheric Pressure | 70–106 KPa |
| Installation | Wall / Pole / Aerial mounting |
| Installation Size | 52 × 166 × 166 mm |
Features
- 16-port wall-mounted fiber distribution design for FTTH access networks
- Integrated PLC splitter for efficient optical signal distribution
- Pre-connectorized waterproof adapter system for plug-and-play installation
- No need to open enclosure during deployment, improving safety and efficiency
- High-strength PC+ABS housing for durability and environmental resistance
- Separate internal routing paths for feeder, pigtail, and drop cables
- Supports both indoor and outdoor installation environments
- Compact structure optimized for wall-mounted deployment scenarios
Applications
- FTTH last-mile fiber access networks
- FTTx broadband distribution systems
- Residential and commercial building fiber wiring
- ISP subscriber connection points
- Indoor/outdoor telecom access network nodes
- Smart building fiber infrastructure
- Network expansion and maintenance projects
FAQ
Q1: Does this NAP box require opening during installation?
No. The pre-connectorized waterproof adapter design allows installation without opening the enclosure, improving efficiency and maintaining sealing integrity.
Q2: Is a PLC splitter included in this model?
Yes. The enclosure is designed to integrate a PLC splitter for efficient optical signal distribution to multiple subscriber lines.
Q3: Can it be used outdoors?
Yes. The PC+ABS material and sealed structure provide resistance to moisture, dust, and environmental aging, making it suitable for outdoor use.
Q4: What types of fiber networks is it suitable for?
It is widely used in FTTH and FTTx networks, especially for last-mile subscriber access and building distribution systems.
Q5: How does it simplify maintenance?
Its organized internal layout separates different cable paths, making troubleshooting and maintenance easier without disturbing other connections.
