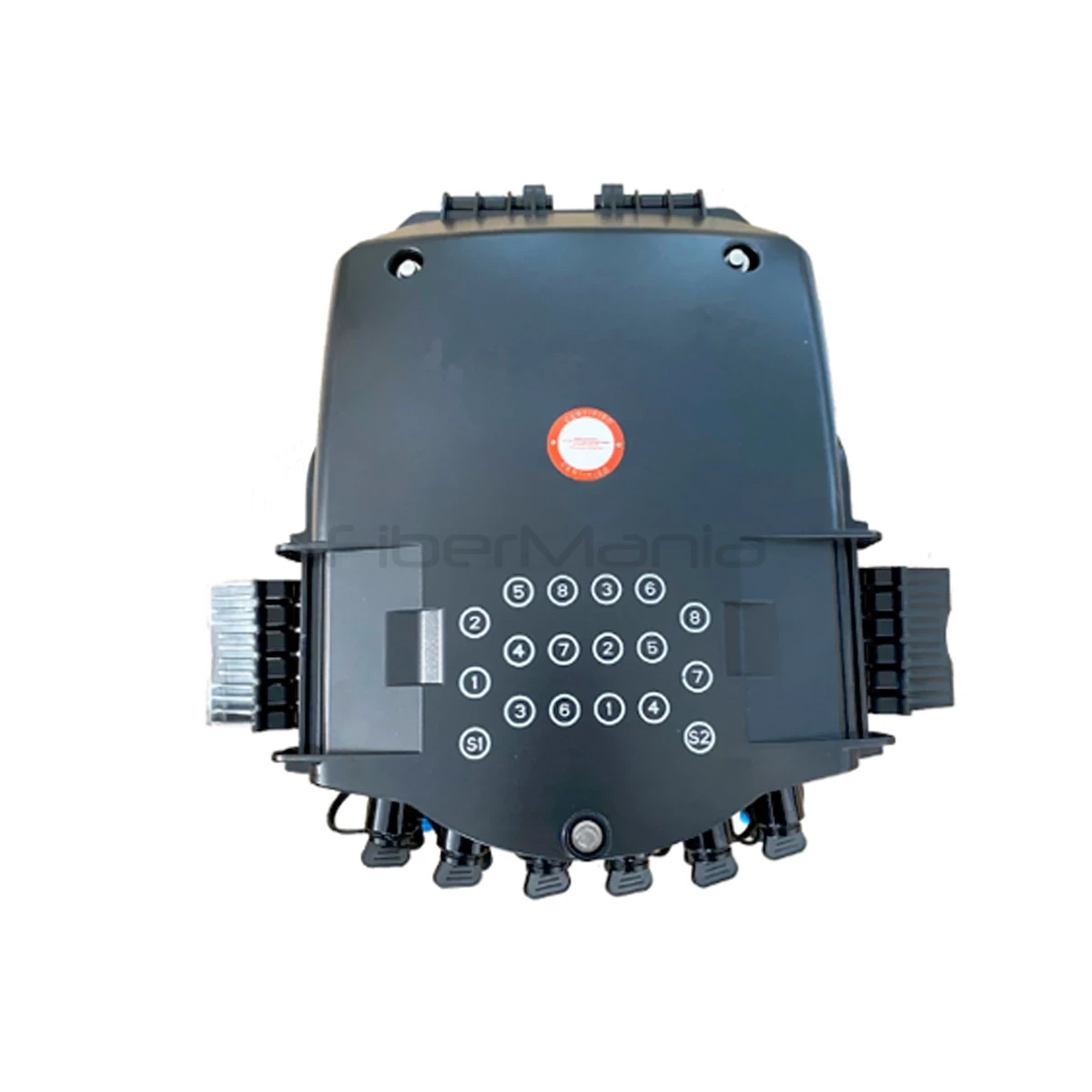

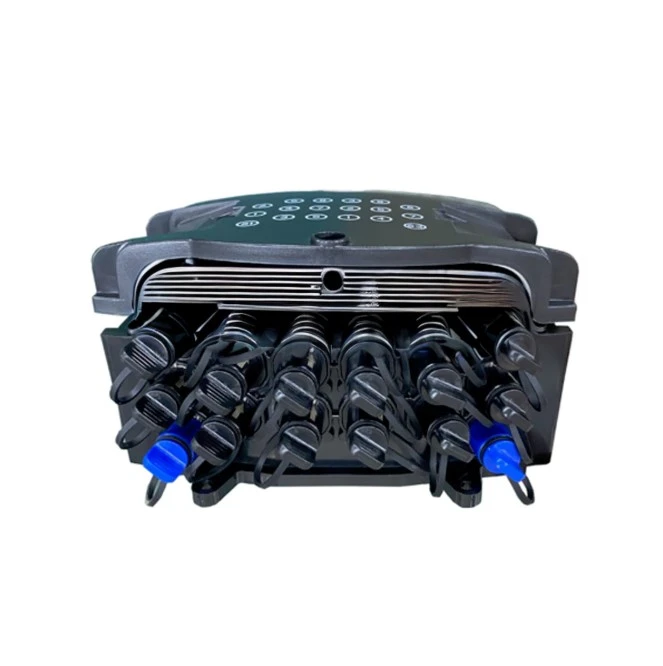

18 Port Pre-Connectorized Fiber Optic Distribution Box with PLC Splitter IP65
Categories:
Product Highlights:
- 18-port pre-connectorized fiber distribution box
- Integrated PLC splitter for signal distribution
- IP65-rated outdoor protection
- Plug-and-play installation, no fusion splicing required
- Durable PC+ABS enclosure for FTTH/FTTx networks
Table of Contents
Description
The 18-Port Pre-Connectorized Fiber Optic Distribution Box is a compact and high-efficiency FTTx access solution designed for rapid outdoor fiber deployment and stable last-mile connectivity. It integrates factory pre-installed connectors and PLC splitter functionality, enabling fast plug-and-play installation while ensuring consistent optical performance and reduced on-site labor. Acting as a key distribution node, it supports feeder-to-drop cable transitions with organized fiber routing and minimal signal loss. Constructed from durable PC+ABS material and rated IP65, the enclosure provides reliable protection against dust and water jets, making it suitable for long-term outdoor operation in demanding telecom environments.
Specification
| Material | PC + ABS |
|---|---|
| Dimensions | 285 × 220 × 125 mm |
| Max Fiber Capacity | 16 fibers |
| Splice Trays | 2 pcs (8 fibers per tray) |
| PLC Splitter | 2 × 1×8 Mini PLC Splitter |
| Input / Output | 2 inputs / 16 outputs |
| Adapters | 18 pcs waterproof adapters |
| IP Rating | IP65 |
| Operating Temperature | -40°C to +85°C |
| Atmospheric Pressure | 70–106 kPa |
Features
- 18-port pre-connectorized fiber distribution design
- Integrated PLC splitter for efficient signal distribution
- IP65-rated protection against dust and water jets
- Factory pre-installed connectors for plug-and-play deployment
- Durable PC+ABS rugged enclosure material
- Independent fiber routing and organized cable management
- Built-in splice tray for easy maintenance
- Supports scalable FTTH/FTTx network expansion
Application
- FTTH last-mile access networks
- FTTx outdoor fiber distribution systems
- Telecom operator network deployment
- Residential and commercial broadband infrastructure
- Pole, wall, and aerial fiber installation projects
FAQ
Q1: Does this distribution box include a PLC splitter?
A1: Yes, it comes with an integrated PLC splitter for efficient optical signal distribution.
Q2: Is fusion splicing required during installation?
A2: No, it uses pre-connectorized interfaces to enable plug-and-play installation and reduce splicing needs.
Q3: What level of protection does the enclosure provide?
A3: It is rated IP65, protecting against dust ingress and low-pressure water jets.
Q4: What materials are used for the housing?
A4: The enclosure is made from high-quality PC+ABS material for durability and impact resistance.
Q5: Can it be used for different installation methods?
A5: Yes, it supports wall-mounted, pole-mounted, and aerial installation options.
FTTA MST Boxes Comparison Table
| SKU | Fiber Capacity | External Ports | Connector Interface | Internal Configuration | Splitter | IP Rating | Mounting |
| MST01-24MAMLCSL | 24 | 12 | OptiTap MPO | Yes/Optional | 2MPO – 24 LC Harness | IP68/IP67 | Pole/Wall Mount |
| MST01-4MAMSASL-P30FT | 4 | 4 | OptiTap SC/APC | Yes/Optional | 1 to 4 | IP67 | Pole/Wall Mount |
| MST011-816PSCA | 8 | 4 or 8 | Customed | Optional | Optional | Optioanl | Wall Mount |
| MST013-16PMSC | 16 | 16 | Mini SC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST015-12P19 | 12 to 24 | 12 | Customed | Optional | 1:09 | IP68 | Wall Mount |
| MST016-1016PSA | 10 to 16 | 8 | SC/APC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST017-10PFAT | 10 | 10 | Customed | Optional | Optional | IP68 | Pole/Wall Mount |
| MST02-12MAMLCSL | 12 | 6 | OptiTap MPO | Pre-terminated | Optional | IP67 | Wall Mount |
| MST020-12A | 24 | 24 | Hardened Adapter | Pre-terminated | 2 to 24 | IP68/IP67 | Wall Mount |
| MST022-12P | 12 | 12 | Mini SC Harneded | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST024-24C | 8 to 16 | 8 | SuperTap | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST023-16PSC | 16 | 16 | SC FastConnector | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST04-M16ST | 6 | 6 | SuperTap | Pre-terminated | PLC | IP67 | na |
| MST06-68 | 4 to 12 | 4/5/8/12 | SuperTap | Pre-terminated | PLC | IP68 | Wall Mount |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
