IP68 ODVA Multiport Waterproof Fiber Terminal Distribution Box
Categories:
Product Highlights:
- IP68 outdoor waterproof fiber terminal box
- 2–12 port configurations
- ODVA/OptiTap and multiple hardened connector options
- Factory-sealed or field-assembly designs
- Wall, aerial, and pole mounting
- Pre-connected design for faster FTTH/FTTA deployment
- PLC splitter and splice sleeve options
Table of Contents
Description

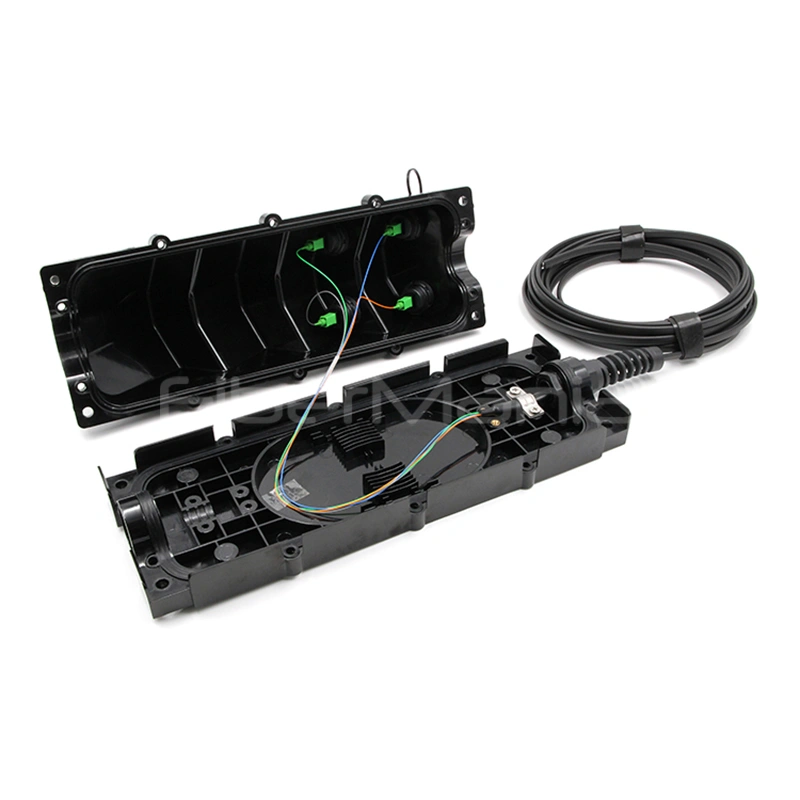

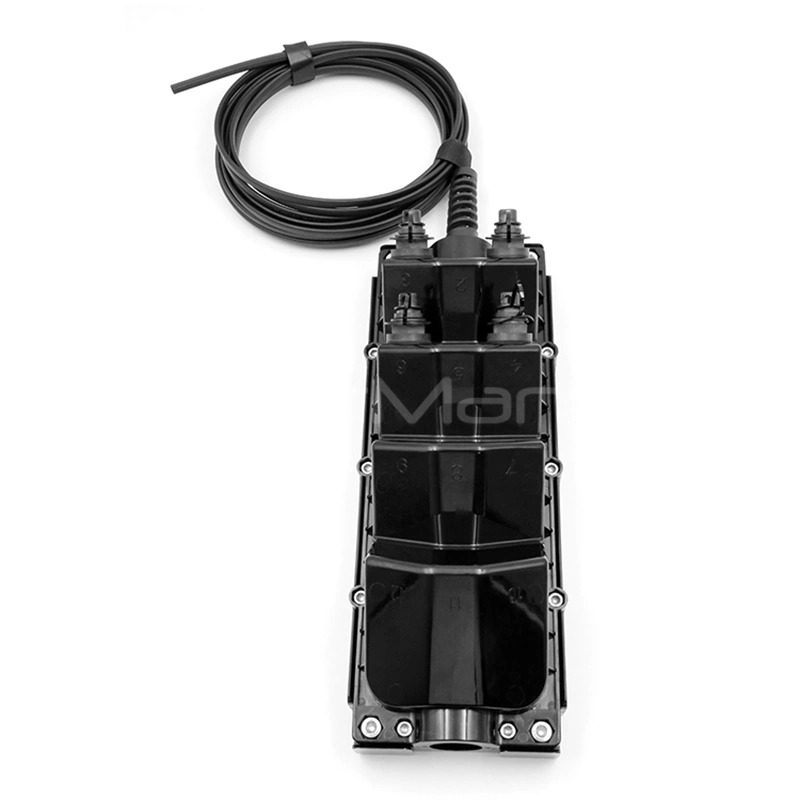

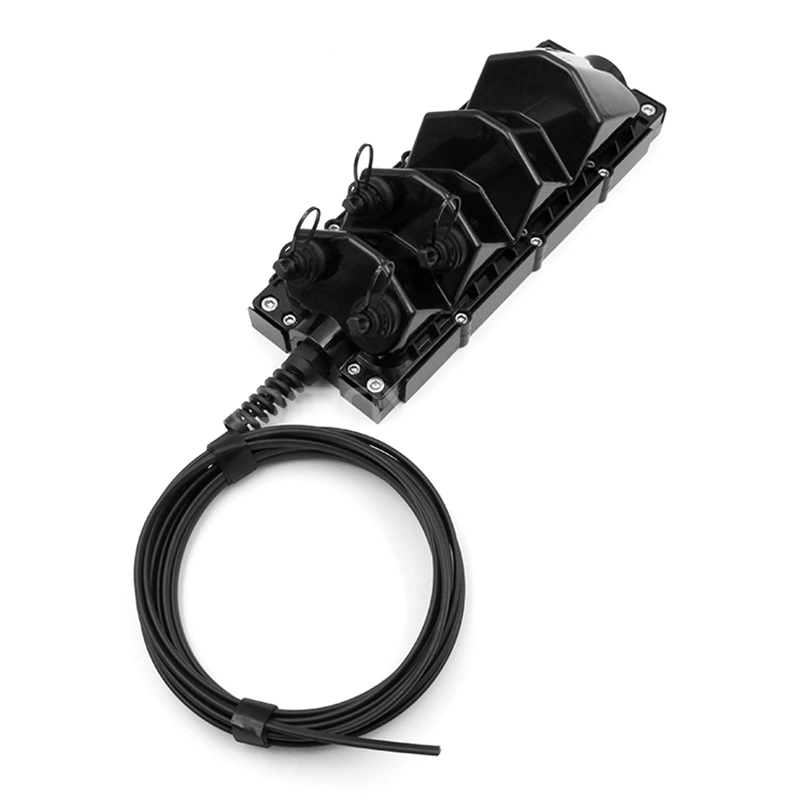

The IP68 ODVA Multiport Waterproof Fiber Terminal Distribution Box is an outdoor fiber distribution solution designed for FTTx, FTTH, FTTA, and other harsh-environment applications. It provides pre-connected fiber access through hardened adapters, allowing operators to deploy and connect services without opening the enclosure or performing on-site fiber splicing. Supporting 2 to 12 ports and compatible with connector options such as ODVA/OptiTap, Mini SC, ODC, PTLC, and PTMPO, the box offers flexible deployment for different network configurations. Its IP68-rated PC+ABS enclosure provides reliable protection against water, dust, and outdoor conditions, while the wall-mount, aerial, and pole-mount designs support flexible installation. PLC splitters or splice sleeves can also be integrated when fiber splitting is required.
Specification
| Port Configuration | 2–12 ports |
|---|---|
| Cable Diameter | 4.8 mm / 7.0 mm |
| Material | PC+ABS |
| Color | Black |
| Ingress Protection | IP68 |
| Fire Protection | UL94-V0 |
| Pulling Force | Up to 1200N |

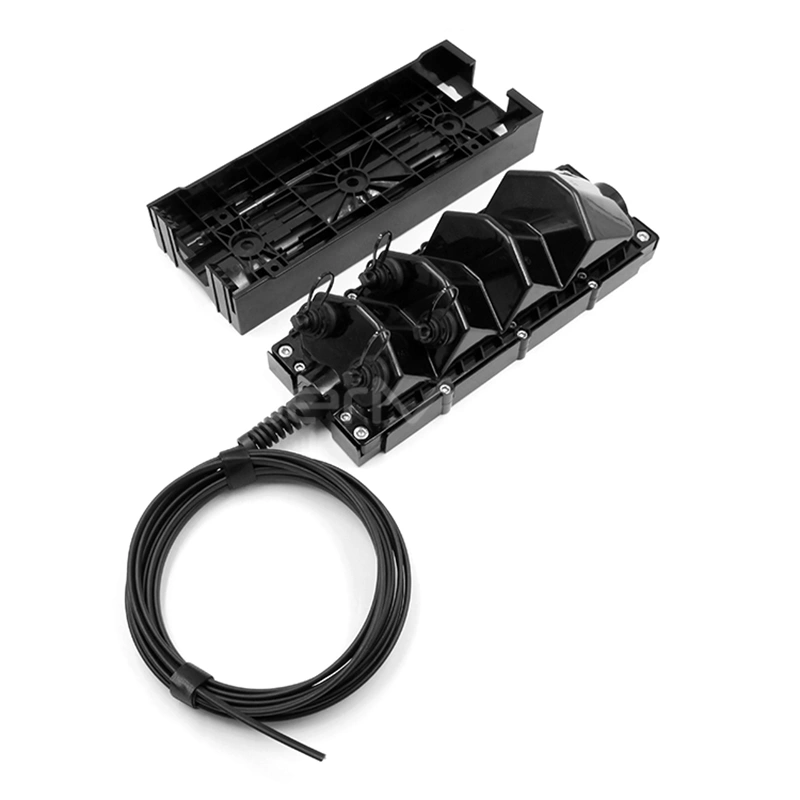

| Installation | Wall Mount, Aerial, Pole Mount |
| Fiber Management | PLC Splitter / Splice Sleeve |
| Assembly | Factory-Sealed / Field Assembly |
| Standard | IEC 61753-1 |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 365 × 138 × 110 mm |
Features
- IP68-rated protection against water and dust
- Supports 2 to 12 fiber ports
- Compatible with ODVA, OptiTap, Mini SC, ODC, PTLC, PTMPO, and power adapters
- Supports factory-sealed or field-assembly configurations
- Pre-connected design reduces installation and service provisioning time
- PC+ABS enclosure with UL94-V0 fire protection
- Supports PLC splitter or splice sleeve integration
- Withstands up to 1200N long-term pulling force
- Suitable for wall-mount, aerial, and pole-mount installation
- Compatible with single-fiber and multifiber hardened connectors
- Decreased-angle surface and optimized height help prevent connector interference
- Designed to meet IEC 61753-1 requirements
Applications
- FTTH access networks
- FTTA deployments
- FTTx outdoor distribution
- Trunk cable connections
- Outdoor fiber access points
- Telecommunication networks
- Fiber deployment in harsh environments
- Prospecting and communication systems
Q&A
What connector types are supported?
The terminal box can be configured with ODVA/OptiTap, Mini SC, ODC, PTLC, PTMPO, and other compatible hardened connector solutions. OptiTap SC, OptiTap LC Duplex, and OptiTap MPO configurations are also available.
Does the box require field fiber splicing?

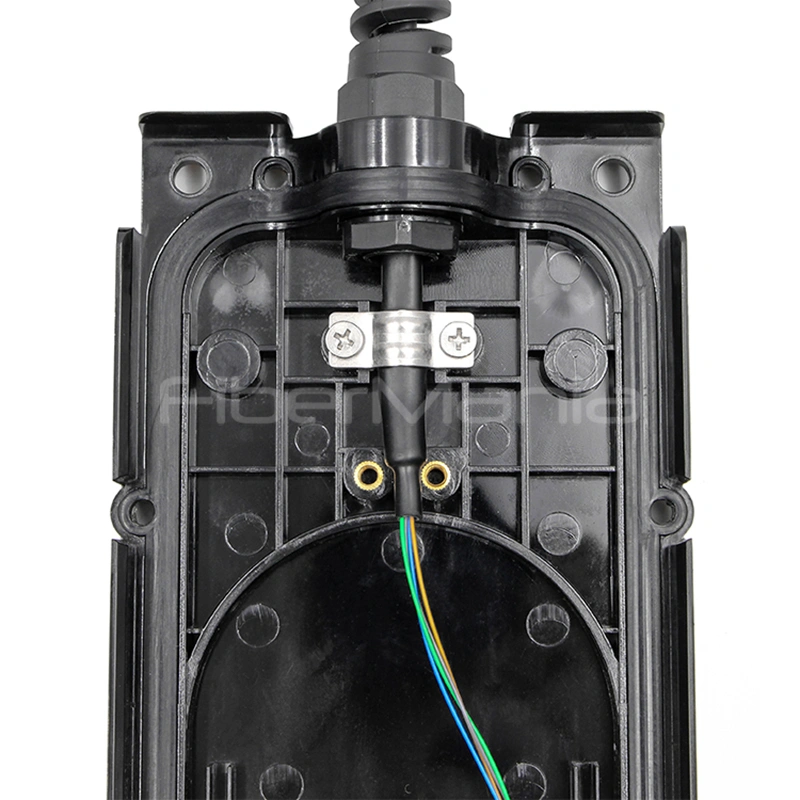

The factory-sealed configuration can be supplied with cables pre-connected, allowing service deployment without opening the box or performing field splicing. PLC splitters or splice sleeves can be included when fiber splitting or splicing is required.
Where can the terminal box be installed?
It supports wall-mounting, aerial installation, and pole-mounting, making it suitable for FTTH, FTTA, and other outdoor fiber distribution environments.
How many ports are available?
The product supports configurations from 2 to 12 ports for single-fiber or multifiber hardened connector applications.
Is it suitable for harsh outdoor environments?
Yes. The enclosure uses PC+ABS material and provides IP68 water and dust protection, UL94-V0 fire protection, and long-term resistance to pulling forces up to 1200N, making it suitable for demanding outdoor deployments.
FTTA MST Boxes Comparison Table
| SKU | Fiber Capacity | External Ports | Connector Interface | Internal Configuration | Splitter | IP Rating | Mounting |
| MST01-24MAMLCSL | 24 | 12 | OptiTap MPO | Yes/Optional | 2MPO – 24 LC Harness | IP68/IP67 | Pole/Wall Mount |
| MST01-4MAMSASL-P30FT | 4 | 4 | OptiTap SC/APC | Yes/Optional | 1 to 4 | IP67 | Pole/Wall Mount |
| MST011-816PSCA | 8 | 4 or 8 | Customed | Optional | Optional | Optioanl | Wall Mount |
| MST013-16PMSC | 16 | 16 | Mini SC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST015-12P19 | 12 to 24 | 12 | Customed | Optional | 1:09 | IP68 | Wall Mount |
| MST016-1016PSA | 10 to 16 | 8 | SC/APC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST017-10PFAT | 10 | 10 | Customed | Optional | Optional | IP68 | Pole/Wall Mount |
| MST02-12MAMLCSL | 12 | 6 | OptiTap MPO | Pre-terminated | Optional | IP67 | Wall Mount |
| MST020-12A | 24 | 24 | Hardened Adapter | Pre-terminated | 2 to 24 | IP68/IP67 | Wall Mount |
| MST022-12P | 12 | 12 | Mini SC Harneded | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST024-24C | 8 to 16 | 8 | SuperTap | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST023-16PSC | 16 | 16 | SC FastConnector | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST04-M16ST | 6 | 6 | SuperTap | Pre-terminated | PLC | IP67 | na |
| MST06-68 | 4 to 12 | 4/5/8/12 | SuperTap | Pre-terminated | PLC | IP68 | Wall Mount |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
