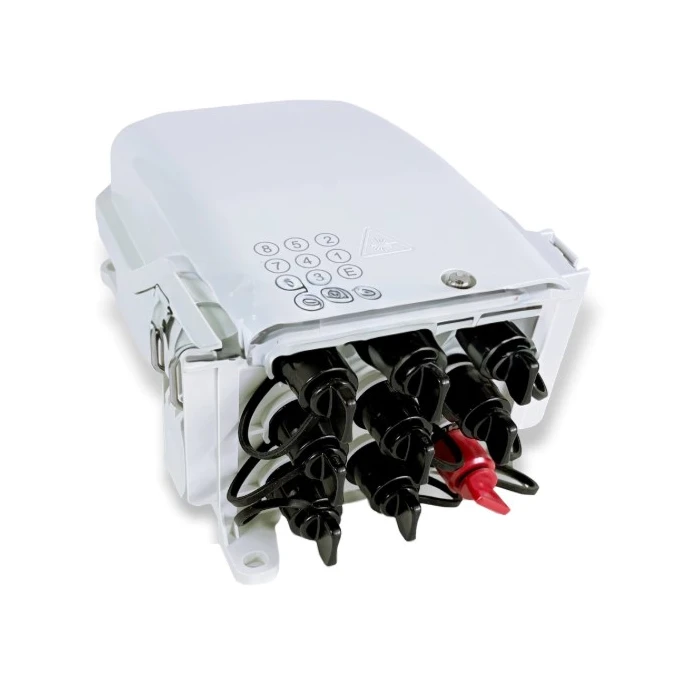

8 Port FTTH Terminal Box with 1×8 PLC Splitter IP65 Waterproof
Categories:
Product Highlights:
- 8-port FTTH terminal box with 1×8 PLC splitter
- SC/APC adapter interface for stable connections
- IP65 waterproof and dustproof design
- UV-resistant compact enclosure
- Ideal for FTTH last-mile distribution
Table of Contents
Description

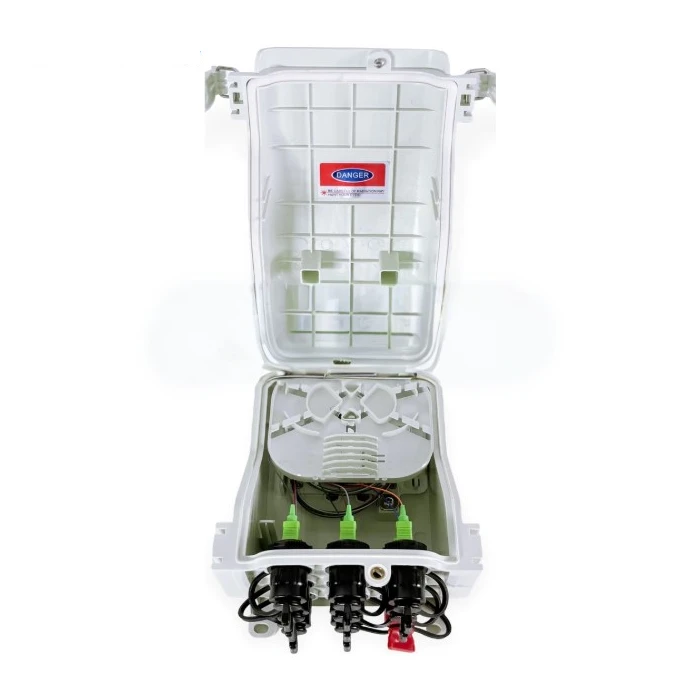

The 8-Port FTTH Terminal Box is a compact and reliable fiber access enclosure designed for efficient last-mile connectivity in FTTH and FTTx networks. As part of the Smart Mini CTO Direct Access Series, it functions as a key distribution node for fiber termination, splitting, and subscriber access, supporting up to 8 drop connections. Integrated with a 1×8 PLC splitter and SC/APC adapters, it ensures stable optical performance and streamlined deployment in both new and upgraded network builds. With IP65-rated protection and a rugged UV-resistant PC housing, the enclosure delivers dependable operation in indoor and outdoor environments, while its optimized internal routing structure ensures fiber protection, reduced attenuation, and long-term network stability.
Specification
| Port Count | 8 Ports |
|---|---|
| Splitter Type | 1×8 PLC Splitter |
| Adapters | 0 pcs (8 SC/APC + 1 segregation port) |
| Material | PC (Polycarbonate) |
| Dimensions | 238 × 155 × 115 mm |
| Ingress Protection | IP65 |
| Sealing Type | Mechanical seal |
| Operating Temperature | -45°C to +65°C |
| Cable Compatibility | φ2×3 mm flat, φ5×3 mm round, φ5.2 mm |
| Connector Type | SC/APC |
| Fiber Type | Single-mode (OS2 recommended) |
| Insertion Loss | ≤ 0.3 dB (typical) |
| Return Loss | ≥ 60 dB |
Features
- 8-port FTTH terminal distribution design
- Integrated 1×8 PLC splitter for signal distribution
- SC/APC adapter compatibility for stable connections
- IP65-rated waterproof and dustproof protection
- UV-resistant durable PC enclosure
- Optimized internal fiber routing and bend protection
- Supports wall, pole, and outdoor installation
- Compact design for last-mile FTTH deployment
Application
- FTTH last-mile access networks
- FTTx residential and rural broadband deployment
- Outdoor telecom distribution points
- Fiber termination and splitting nodes
- Small-scale subscriber access networks
FAQ
Q1: Does this terminal box include a splitter?
A1: Yes, it comes with a pre-installed 1×8 PLC splitter for efficient optical signal distribution.
Q2: What type of adapters are used?
A2: It uses SC/APC adapters for stable and low-loss fiber connections.
Q3: Is this product suitable for outdoor installation?
A3: Yes, it is IP65 rated and designed for both indoor and outdoor environments.
Q4: What is the maximum number of subscribers supported?
A4: It supports up to 8 subscriber drop connections through the integrated splitter.
Q5: Can it withstand harsh environmental conditions?
A5: Yes, the UV-resistant PC housing and sealed design ensure long-term durability outdoors.
FTTA MST Boxes Comparison Table
| SKU | Fiber Capacity | External Ports | Connector Interface | Internal Configuration | Splitter | IP Rating | Mounting |
| MST01-24MAMLCSL | 24 | 12 | OptiTap MPO | Yes/Optional | 2MPO – 24 LC Harness | IP68/IP67 | Pole/Wall Mount |
| MST01-4MAMSASL-P30FT | 4 | 4 | OptiTap SC/APC | Yes/Optional | 1 to 4 | IP67 | Pole/Wall Mount |
| MST011-816PSCA | 8 | 4 or 8 | Customed | Optional | Optional | Optioanl | Wall Mount |
| MST013-16PMSC | 16 | 16 | Mini SC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST015-12P19 | 12 to 24 | 12 | Customed | Optional | 1:09 | IP68 | Wall Mount |
| MST016-1016PSA | 10 to 16 | 8 | SC/APC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST017-10PFAT | 10 | 10 | Customed | Optional | Optional | IP68 | Pole/Wall Mount |
| MST02-12MAMLCSL | 12 | 6 | OptiTap MPO | Pre-terminated | Optional | IP67 | Wall Mount |
| MST020-12A | 24 | 24 | Hardened Adapter | Pre-terminated | 2 to 24 | IP68/IP67 | Wall Mount |
| MST022-12P | 12 | 12 | Mini SC Harneded | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST024-24C | 8 to 16 | 8 | SuperTap | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST023-16PSC | 16 | 16 | SC FastConnector | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST04-M16ST | 6 | 6 | SuperTap | Pre-terminated | PLC | IP67 | na |
| MST06-68 | 4 to 12 | 4/5/8/12 | SuperTap | Pre-terminated | PLC | IP68 | Wall Mount |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
