10/16-core pre-connectorized FTTH fiber hub box SC/APC outputs IP68 for FTTx network distribution and last-mile access

10/16-Core Pre-Connectorized FTTH Fiber Hub Box SC/APC Outputs IP68

Name: 10/16-Core FTTH Fiber Hub Box SC/APC IP68 Pre-Connectorized
SKU: MST016-1016PSA

P/N: MST016-1016PSA

Categories:

MST Boxes

Product Highlights:

10/16-core FTTH pre-connectorized fiber hub box
SC/APC output ports for plug-and-play deployment
IP68 protection for outdoor and underground use
No fusion splicing required
Integrated fiber management and distribution design

Description

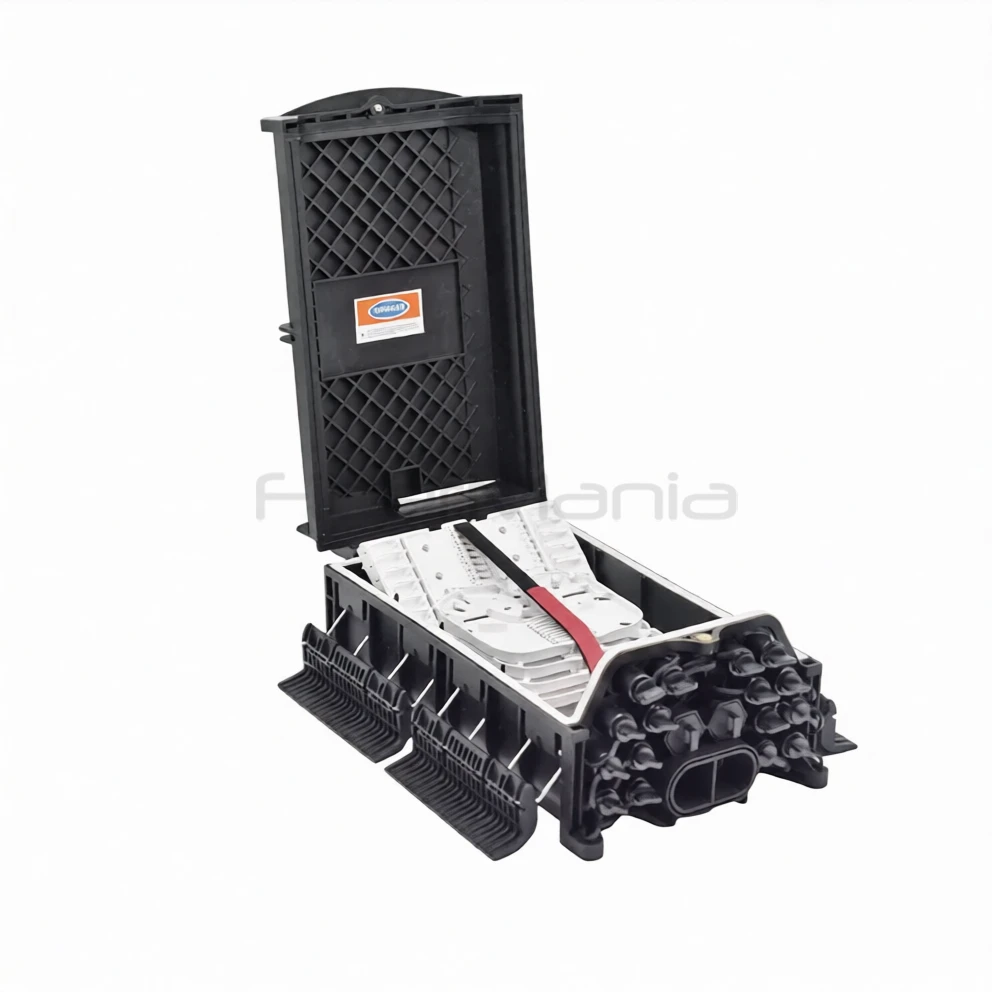

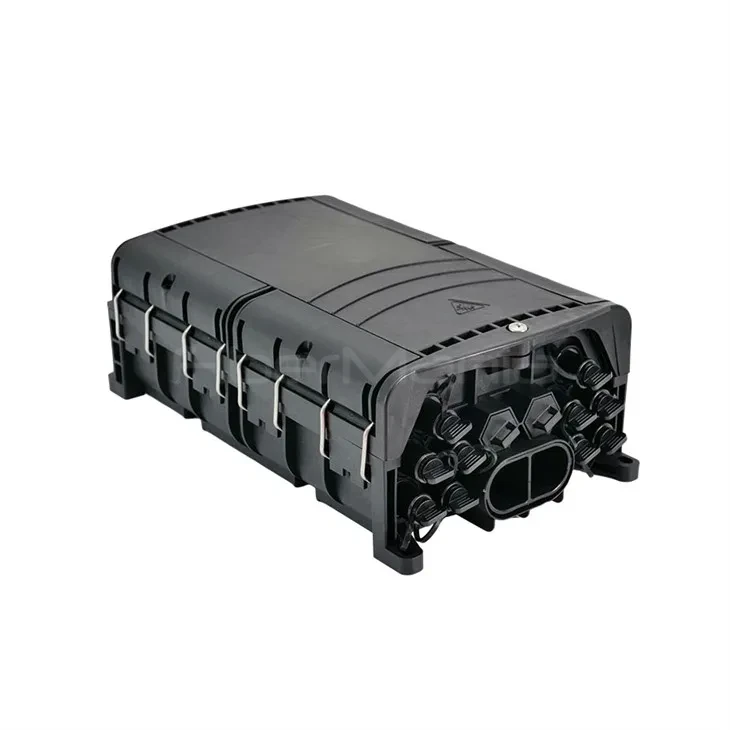

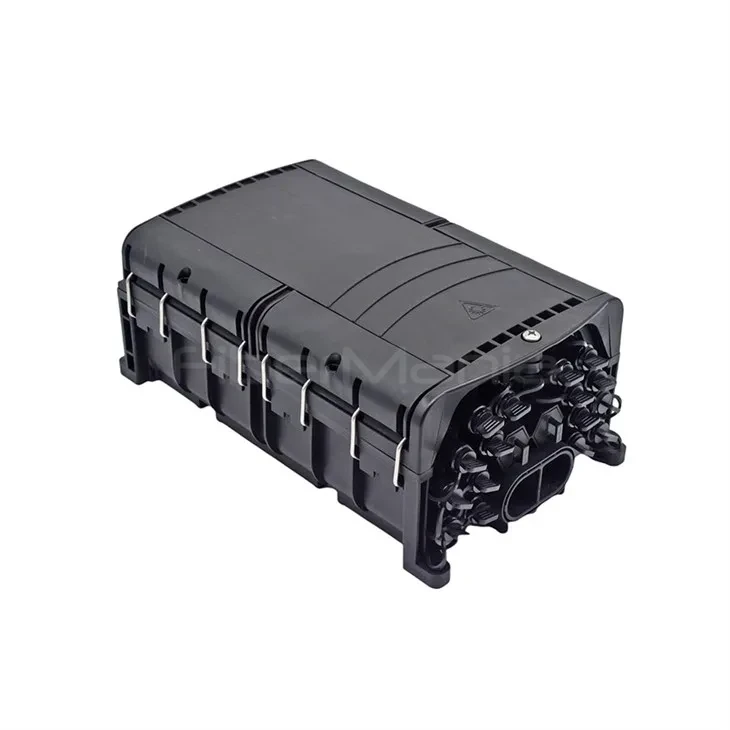

The 10/16-Core FTTH Fiber Optic Termination Box is a high-performance pre-connectorized hub designed for modern FTTx access networks, enabling efficient fiber distribution and last-mile connectivity. It functions as a key node in feeder-to-drop conversion, supporting SC/APC single-core output ports in a fully pre-connected architecture. This plug-and-play design eliminates the need for field fusion splicing, allowing rapid deployment while reducing installation complexity, labor cost, and service time. Constructed from high-strength PP+GF material and rated IP68, the enclosure provides excellent resistance to water, dust, and environmental stress, making it suitable for demanding outdoor and underground network applications.

Specification

Capacity	16 cores (10/16 core options)
Connector Type	SC/APC
Material	PP + GF
Protection Rating	IP68
Dimensions	355215132mm(10P)
Weight	2.47 kg
Cable Inlet/Outlet	1 Input / 11 Outputs
Installation Methods	Wall / Pole / Aerial / Underground

Features

Supports 10/16-core fiber termination and distribution
SC/APC pre-connectorized single-core output ports
IP68-rated waterproof and dustproof protection
Plug-and-play design eliminates field fusion splicing
High-strength PP+GF enclosure for durability
Integrated fiber splicing, storage, and management system
Suitable for aerial, underground, and wall-mounted installations
Designed for unequal ratio FTTH distribution architectures

Application

FTTH last-mile access network deployment
FTTx feeder-to-drop fiber distribution systems
Outdoor telecom infrastructure projects
Underground and aerial fiber network installations
Residential and commercial broadband distribution

FAQ

Q1: Does this hub box require fusion splicing during installation?
A1: No, it is fully pre-connectorized and designed for plug-and-play installation without fusion splicing.

Q2: What type of connectors does it support?
A2: It supports SC/APC single-core pre-terminated output connections.

Q3: Is the enclosure suitable for harsh outdoor environments?
A3: Yes, the IP68 rating ensures full protection against water, dust, and environmental exposure.

Q4: What is the difference between 10-core and 16-core configuration?
A4: The enclosure can support different network planning requirements, allowing flexible deployment depending on subscriber density.

Q5: Can it be installed in underground applications?
A5: Yes, its sealed IP68 structure makes it suitable for aerial, wall-mounted, and underground installations.
