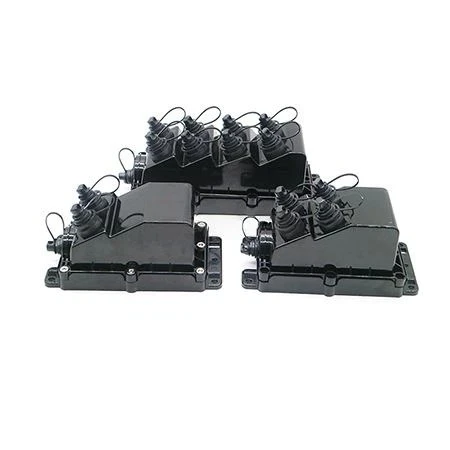

Fiber Optic Multiport Service Terminal (MST) with/without PLC Splitters
Categories:
Product Highlights:
- MST enclosure with optional PLC splitter
- Integrated fiber distribution solution
- Weatherproof for outdoor environments
- Scalable port configurations
- Ideal for FTTH network deployment
Table of Contents
Description
The Fiber Optic Multiport Service Terminal (MST) is a high-reliability fiber distribution enclosure designed for FTTx access networks, supporting both configurations with or without integrated PLC splitters. It provides an efficient solution for fiber termination, splitting, and distribution at network edge locations. Built with durable materials and robust environmental sealing, the MST ensures stable performance in outdoor and harsh conditions. Each unit is manufactured under strict quality control and fully tested to guarantee optical and mechanical reliability. With scalable port configurations and flexible deployment options, it is ideal for long-term use in modern fiber access infrastructure.
Specification
| Dimensions (L×W×H) | 210×105×93mm (4-core), 283×105×95mm (8-core) |
|---|---|
| Protection Rating | IP68 Waterproof & Dustproof |
| Operating Temperature | -40°C ~ +85°C |
| Cable Type | Hybrid / Non-hybrid, Armored / Non-armored |
| Cable Diameter | Round: 5.0–14.0mm; Flat: 4.6×8.9mm |
| Jacket Material | LSZH / PE / TPU |
| Crush Resistance | 200N/cm (long term) |
| UV Resistance | ISO 4892-3 compliant |
| Fire Rating | UL94-V0 |
| Splitter Support | 1–2 pcs PLC splitter |
| Fusion Sleeves Capacity | 1–24 pcs |
Features
- Supports configurations with or without PLC splitters

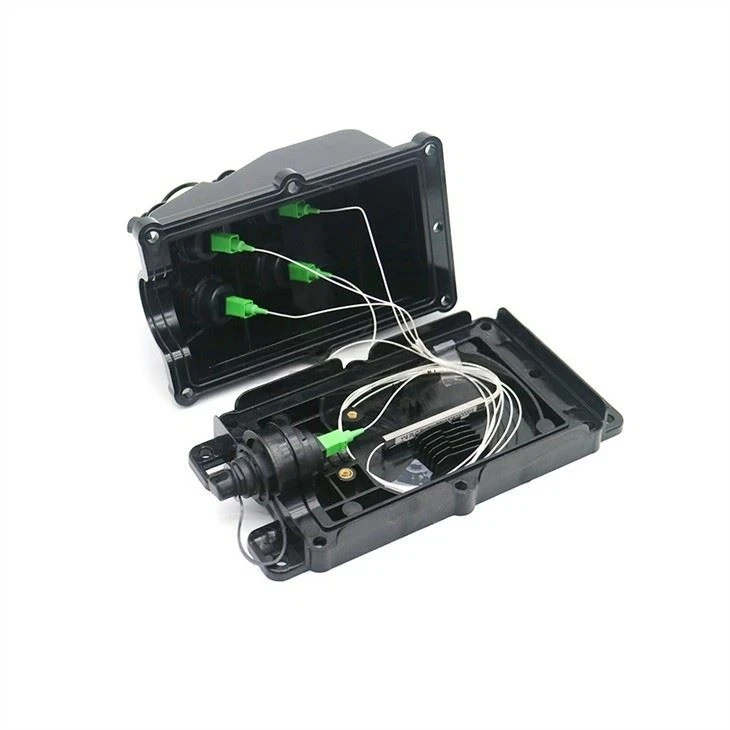

- Integrated fiber termination, splitting, and distribution
- Durable weatherproof enclosure for outdoor deployment
- Multiple port options for scalable network expansion
- Factory-tested for optical and mechanical reliability
- Supports wall and pole mounting installation
Applications
- FTTH and FTTx access networks
- Fiber distribution at network edge points
- Outdoor fiber termination and splitting
- ISP and telecom infrastructure deployment
- Last-mile connectivity solutions
FAQ
Q1: Does this MST include a PLC splitter by default?
A1: It is available in both versions, with or without integrated PLC splitters, depending on project requirements.
Q2: What splitter ratios are supported?
A2: Common PLC splitter ratios such as 1:4, 1:8, and 1:16 can be supported based on configuration.
Q3: Is the enclosure suitable for outdoor use?
A3: Yes, it features a weatherproof design for reliable long-term outdoor deployment.
Q4: Can the number of ports be customized?
A4: Yes, different port configurations are available to meet various network design needs.
Q5: What installation methods are supported?
A5: The MST supports both wall mounting and pole mounting for flexible deployment.
FTTA MST Boxes Comparison Table
| SKU | Fiber Capacity | External Ports | Connector Interface | Internal Configuration | Splitter | IP Rating | Mounting |
| MST01-24MAMLCSL | 24 | 12 | OptiTap MPO | Yes/Optional | 2MPO – 24 LC Harness | IP68/IP67 | Pole/Wall Mount |
| MST01-4MAMSASL-P30FT | 4 | 4 | OptiTap SC/APC | Yes/Optional | 1 to 4 | IP67 | Pole/Wall Mount |
| MST011-816PSCA | 8 | 4 or 8 | Customed | Optional | Optional | Optioanl | Wall Mount |
| MST013-16PMSC | 16 | 16 | Mini SC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST015-12P19 | 12 to 24 | 12 | Customed | Optional | 1:09 | IP68 | Wall Mount |
| MST016-1016PSA | 10 to 16 | 8 | SC/APC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST017-10PFAT | 10 | 10 | Customed | Optional | Optional | IP68 | Pole/Wall Mount |
| MST02-12MAMLCSL | 12 | 6 | OptiTap MPO | Pre-terminated | Optional | IP67 | Wall Mount |
| MST020-12A | 24 | 24 | Hardened Adapter | Pre-terminated | 2 to 24 | IP68/IP67 | Wall Mount |
| MST022-12P | 12 | 12 | Mini SC Harneded | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST024-24C | 8 to 16 | 8 | SuperTap | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST023-16PSC | 16 | 16 | SC FastConnector | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST04-M16ST | 6 | 6 | SuperTap | Pre-terminated | PLC | IP67 | na |
| MST06-68 | 4 to 12 | 4/5/8/12 | SuperTap | Pre-terminated | PLC | IP68 | Wall Mount |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
