12-Fiber/Power Hybrid MST Box with OptiTap Patch Cords and 2-Pin Power Cable
Categories:
Product Highlights:
- 12-fiber + 2-pin power hybrid MST box
- Pre-connected OptiTap patch cords
- IP68 waterproof and dustproof enclosure
- Supports fiber and electrical power distribution
- 2–12 port platform compatibility
- Factory-sealed or field-assembly options
- Wall, aerial, and pole mounting
- Designed for FTTH, FTTA, and outdoor networks
Table of Contents
Description

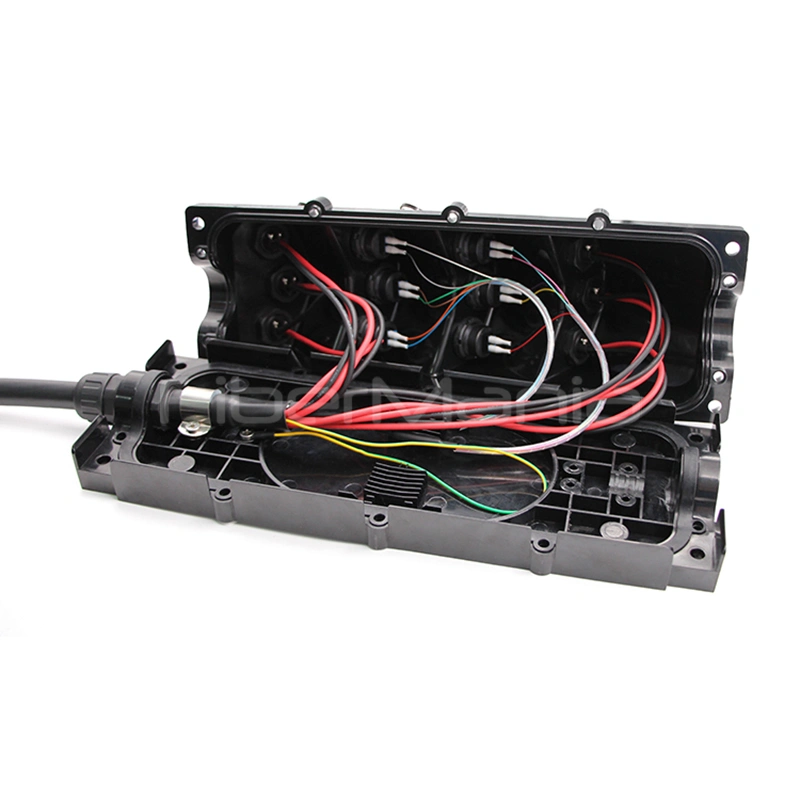

The 12-Fiber/Power Hybrid MST Box is an outdoor fiber and power distribution solution designed for FTTx, FTTH, FTTA, and other demanding telecommunication applications. It integrates 12 fiber connections with a 2-pin electrical power cable, providing a convenient hybrid connection point for networks that require both optical and electrical connectivity. The box features pre-connected OptiTap-compatible patch cords and hardened fiber adapters, eliminating the need to open the enclosure or perform fiber splicing during deployment. Its IP68-rated PC+ABS enclosure provides reliable protection against water and dust, while the factory-sealed or field-assembly design supports flexible installation. Wall, aerial, and pole mounting options make it suitable for outdoor access networks and harsh environments.
Specification
| Fiber Capacity | 12 Fiber |
|---|---|
| Power Connection | 2-Pin Electrical Power Cable |
| Adapter Type | OptiTap SC, OptiTap LC Duplex, OptiTap MPO |
| Compatible Connector Options | ODVA, H Connector, Mini SC, ODC, PTLC, PTMPO |
| Application | Telecommunication |
| Cable Diameter | 4.8 mm / 7.0 mm |
| Material | PC+ABS |
| Color | Black |
| Ingress Protection | IP68 |
| Fire Protection | UL94-V0 |
| Pulling Force | Up to 1200N |
| Fiber Management | PLC Splitter / Splice Sleeve |
| Assembly | Factory-Sealed / Field Assembly |
| Installation | Wall Mount, Aerial, Pole Mount |
| Standard | IEC 61753-1 |
| Operating Temperature | -40°C to +85°C |
| Packaging | Carton |
| Dimensions | 365 × 138 × 110 mm |
Features
- 12-fiber and electrical power hybrid distribution design
- Integrated 2-pin electrical power cable
- Pre-connected OptiTap fiber patch cords
- Supports OptiTap SC, OptiTap LC Duplex, and OptiTap MPO configurations
- Compatible with ODVA, H connector, Mini SC, ODC, PTLC, PTMPO, and power adapters
- Factory-sealed or field-assembly configurations
- IP68-rated protection against water and dust
- PC+ABS enclosure with UL94-V0 fire protection
- Supports long-term pulling forces up to 1200N
- Available with PLC splitter or splice sleeve options
- Wall-mount, aerial, and pole-mount installation
- Designed to meet IEC 61753-1 requirements
- Optimized enclosure design helps prevent connector interference
- Pre-connected structure reduces field installation and service provisioning time
Applications
- FTTH access networks
- FTTA deployments
- FTTx outdoor distribution
- Fiber and power hybrid connections
- Outdoor telecommunication networks
- Trunk cable connections
- Fiber access points in harsh environments
- Prospecting and communication systems
Q&A
What does the hybrid MST box provide?
It combines 12 fiber connections with a 2-pin electrical power cable in one outdoor distribution enclosure, making it suitable for applications requiring both fiber and power connectivity.
Are the fiber connections pre-assembled?
Yes. The box can be supplied with pre-connected OptiTap-compatible patch cords, reducing the need for field splicing and enclosure opening during deployment.
What connector types are available?
The product supports OptiTap SC, OptiTap LC Duplex, and OptiTap MPO configurations. Other compatible hardened connector options can also be configured according to the application.
Can it be installed outdoors?
Yes. The IP68-rated enclosure is designed for outdoor environments and supports wall-mounting, aerial installation, and pole mounting for flexible deployment.
Can the box be customized?
Yes. Connector configuration, fiber management components, cable configuration, and hybrid fiber/power arrangements can be customized according to network requirements.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
