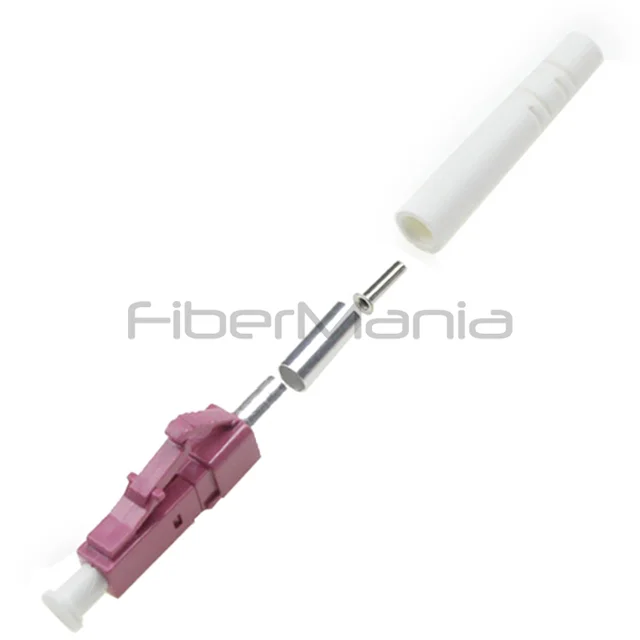

LC Simplex Connector, Multimode OM4, Magenta Housing, 3.0mm Boot
Categories:
Product Highlights:
-
LC simplex OM4 connector with magenta housing and 3.0 mm boot for low-loss, stable multimode performance.
-
Features a pre-domed ceramic ferrule and corrosion-resistant body for long-term reliability.
-
Ideal for LAN, WAN, data center, broadband, FTTx, and optical testing applications.
-
FiberMania provides OEM/ODM services, including custom boot sizes, colors, branding, and pre-terminated patch cord solutions.
Table of Contents
Description
The LC Simplex OM4 Connector with magenta housing and 3.0 mm boot from FiberMania is designed for high-performance multimode optical networks. Utilizing epoxy-based assembly and a pre-domed ceramic ferrule, it provides precise fiber alignment, low insertion loss, and ultra-low back reflection. The connector is specifically optimized for OM4 50/125 µm multimode fibers, making it ideal for high-speed LAN, WAN, and data center applications where signal integrity is critical.
Its compact LC simplex form factor allows for high-density patching, while the corrosion-resistant body ensures long-term durability. The 3.0 mm boot offers strain relief, protecting the fiber from mechanical stress during installation and repeated matings. Fully compliant with Telecordia GR-326-CORE and RoHS standards, this connector provides reliable and consistent performance across a variety of multimode networks.
Specification
| Connector Type | LC Simplex |
|---|---|
| Fiber Mode | Multimode OM4 |
| Ferrule Diameter | 2.5 mm (standard FC) |
| Housing Material | Plastic |
| Boot Diameter | 3.0 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Magenta |
Features
-
Low insertion loss (~0.20 dB) for stable multimode performance
-
Ultra-low back reflection with UPC return loss >50 dB
-
Corrosion-resistant body for long-term durability
-
Compatible with 3.0 mm, 2.0 mm jacketed fibers and 900 µm buffered fibers
-
One-piece pre-domed ceramic ferrule for easy assembly
-
LC simplex design suitable for high-density patch panels
-
Meets Telecordia GR-326-CORE specifications
-
RoHS compliant
-
Durable over 1,000 mating cycles
Application
-
LAN and WAN fiber optic networks
-
Telecommunication systems
-
Broadband and CATV distribution
-
FTTx access networks
-
Data center interconnects and patch panels
-
Optical fiber testing and measurement
FAQ
Q: What fiber type is this connector designed for?
A: OM4 multimode 50/125 µm fiber.
Q: Is it suitable for high-density panels?
A: Yes, the LC simplex form factor is ideal for compact patch panels.
Q: What is the typical insertion loss?
A: Approximately 0.20 dB.
Q: How durable is the connector?
A: It can withstand over 1,000 mating cycles.
Q: Is the connector RoHS compliant?
A: Yes, all materials meet RoHS environmental standards.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
