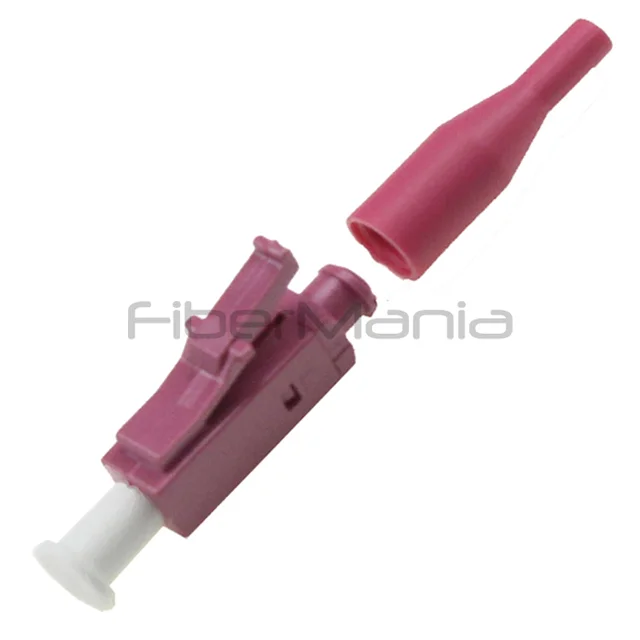

LC Simplex Connector, Multimode OM4, Magenta Housing, 0.9mm Boot

Name: LC Simplex Connector MM OM4 Magenta Housing | FiberMania
SKU: CLCM4MG9

P/N: CLCM4MG9

Categories:

LC Connectors

Product Highlights:

LC Simplex OM4 Fiber Connector with magenta housing and 0.9mm boot
Low insertion loss and ultra-low back reflection ensure reliable optical performance
Durable epoxy body with pre-domed ceramic ferrule for easy installation
FiberMania provides flexible OEM/ODM services for customized connectors and branding

Description

The FiberMania LC Simplex Connector is engineered for high-performance multimode OM4 fiber networks, delivering stable and reliable signal transmission with low insertion loss and minimal back reflection. Its epoxy body is corrosion-resistant, and the pre-domed ceramic ferrule ensures precise fiber alignment for consistent optical performance.

Designed to support 0.9mm fiber jackets, this connector is versatile enough for use in LAN, WAN, broadband, CATV, and FTTx applications. The connector’s durable construction withstands repeated mating cycles, providing long-lasting performance for both field and lab environments.

Specification

Connector Type	LC Simplex
Fiber Mode	Multimode OM4
Ferrule Diameter	2.5 mm (standard FC)
Housing Material	Plastic
Boot Diameter	0.9 mm
Ferrule Material	Ceramic
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 35 dB
Durability	≥ 1000 mating cycles
Alignment Sleeve	Ceramic
Operating Temperature	-40°C to +85°C
Compliance	RoHS compliant
Color	Magenta

Features

LC/UPC simplex multimode OM4 connection
Low insertion loss (0.20dB)
Ultra-low back reflection (>50dB UPC)
Corrosion-resistant epoxy body
Pre-domed ceramic ferrule for easy assembly
Supports 0.9mm jackets, also compatible with 2.0mm and 3.0mm jackets
Meets Telecordia GR-326-CORE specifications
RoHS compliant

Applications

LAN and WAN networks
Telecommunication systems
Broadband and CATV networks
FTTx deployments
Optical fiber testing equipment

FAQ

Q1: What fiber type is supported?
Multimode OM4 50/125 µm fibers.

Q2: What is the insertion loss?
Typically 0.20dB for LC simplex connections.

Q3: How durable is the connector?
Over 1,000 mating cycles without performance degradation.

Q4: Can it be used in field installations?
Yes, epoxy body and pre-domed ferrule allow for fast, reliable assembly in the field.

Q5: Does FiberMania provide custom connectors?
Yes, OEM/ODM customization is available for housing color, boot size, ferrule type, and packaging.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
