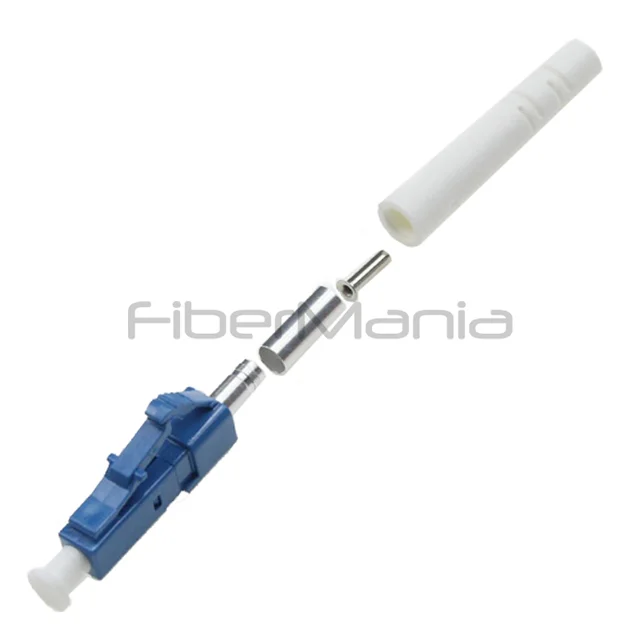

LC Simplex Connector, Single Mode, Blue Housing, 3.0mm Boot
Categories:
Product Highlights:
-
LC simplex single mode connector with blue housing and 3.0 mm boot for reliable, low-loss optical connections.
-
Pre-domed ceramic ferrule and corrosion-resistant housing ensure long-term durability.
-
Ideal for LAN, WAN, FTTx, broadband, and optical testing applications.
-
FiberMania provides OEM/ODM services including custom boot sizes, colors, branding, and pre-terminated patch cords.
Table of Contents
Description
The LC Single Mode Simplex Connector from FiberMania, with blue housing and 3.0 mm boot, is engineered for reliable single mode fiber connections in LAN, WAN, broadband, and FTTx networks. Designed for 9/125 µm single mode fibers, this connector features an epoxy-based assembly with a pre-domed ceramic ferrule, ensuring precise fiber alignment, low insertion loss, and ultra-low back reflection. Its LC simplex form factor is ideal for high-density patch panels, wall outlets, and optical network equipment, offering professional-grade optical performance.
The 3.0 mm boot provides strain relief and mechanical protection for jacketed fibers, making installation and repeated matings smooth and dependable. Fully compliant with Telecordia GR-326-CORE and RoHS standards, the connector guarantees long-term reliability and consistent signal transmission in single mode fiber networks.
Specification
| Connector Type | LC Simplex |
|---|---|
| Fiber Mode | Single Mode |
| Ferrule Diameter | 1.25 mm |
| Housing Material | Plastic |
| Boot Diameter | 3.0 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Blue |
Features
-
Low insertion loss (~0.20 dB) for optimal single mode performance
-
Ultra-low back reflection with UPC return loss >55 dB
-
Corrosion-resistant housing for long-term durability
-
Compatible with 3.0 mm, 2.0 mm jacketed, or 900 µm buffered single mode fibers
-
One-piece pre-domed ceramic ferrule for easy assembly
-
LC simplex design suitable for patch panels and wall plates
-
Meets Telecordia GR-326-CORE specifications
-
RoHS compliant
-
Durable over 1,000 mating cycles
Application
-
LAN and WAN fiber networks
-
Telecommunication and broadband systems
-
CATV and multimedia distribution
-
FTTx access and drop networks
-
Optical fiber testing and measurement
FAQ
Q: What fiber type is compatible?
A: Single Mode 9/125 µm fiber.
Q: Is this connector suitable for patch panels?
A: Yes, the LC simplex form factor fits standard patch panels and wall outlets.
Q: What is the typical insertion loss?
A: Approximately 0.20 dB.
Q: How many mating cycles can it endure?
A: Over 1,000 matings.
Q: Is it RoHS compliant?
A: Yes, fully compliant.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
