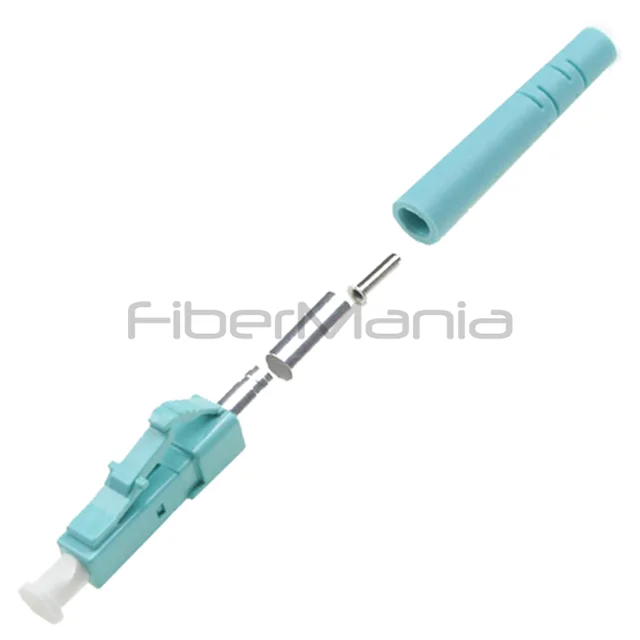

LC Simplex Connector, Multimode OM3, Aqua Housing, 3.0mm Boot

Name: LC Simplex Connector MM OM3 Aqua Housing | FiberMania
SKU: CLCM3AQ3

P/N: CLCM3AQ3

Categories:

LC Connectors

Product Highlights:

LC Simplex OM3 Fiber Connector with aqua housing and 3.0mm boot
Low insertion loss and ultra-low back reflection ensure reliable signal performance
Durable epoxy body with pre-domed ceramic ferrule for easy assembly
FiberMania provides flexible OEM/ODM services to customize connectors for specific projects and branding needs

Description

The FiberMania LC Simplex Connector is designed for high-performance multimode OM3 fiber applications, providing reliable signal transmission with ultra-low insertion loss and back reflection. Constructed with a corrosion-resistant epoxy body and a pre-domed ceramic ferrule, it ensures accurate alignment and consistent optical performance.

The connector supports 3.0mm fiber jackets while also accommodating 2.0mm jackets and 900µm buffered fibers, making it versatile for a variety of LAN, WAN, and FTTx installations. Its durable design allows for repeated mating cycles without compromising performance, making it ideal for both field and laboratory environments.

Specification

Connector Type	LC Simplex
Fiber Mode	Multimode OM3
Ferrule Diameter	2.5 mm (standard FC)
Housing Material	Plastic
Boot Diameter	3.0 mm
Ferrule Material	Ceramic
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 35 dB
Durability	≥ 1000 mating cycles
Alignment Sleeve	Ceramic
Operating Temperature	-40°C to +85°C
Compliance	RoHS compliant
Color	Aqua

Features

LC/UPC simplex multimode OM3 connection
Low insertion loss (0.20dB)
Ultra-low back reflection (>50dB UPC)
Corrosion-resistant epoxy body
Pre-domed ceramic ferrule for easy assembly
Compatible with 3.0mm, 2.0mm jackets and 900µm buffered fibers
Meets Telecordia GR-326-CORE specifications
RoHS compliant

Applications

LAN and WAN networks
Telecommunication systems
Broadband and CATV networks
FTTx deployments
Optical fiber testing equipment

FAQ

Q1: What fiber type is supported?
Multimode OM3 50/125 µm fibers.

Q2: What is the insertion loss?
Typically 0.20dB for LC simplex connections.

Q3: How durable is the connector?
Over 1,000 mating cycles without optical performance degradation.

Q4: Can it be used in field installations?
Yes, the epoxy body and pre-domed ferrule allow for fast and easy assembly in the field.

Q5: Can FiberMania provide custom connectors?
Yes, OEM/ODM customization is available for housing color, boot size, ferrule type, and packaging.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
