LC simplex OM4 connector with magenta housing and 2.0 mm boot for low-loss, reliable multimode performance.
-
Features a pre-domed ceramic ferrule and corrosion-resistant body for long-term durability.
-
Ideal for LAN, WAN, data center, FTTx, broadband, and optical testing applications.
-
FiberMania provides OEM/ODM services, including custom boot sizes, colors, branding, and pre-terminated patch cord solutions.

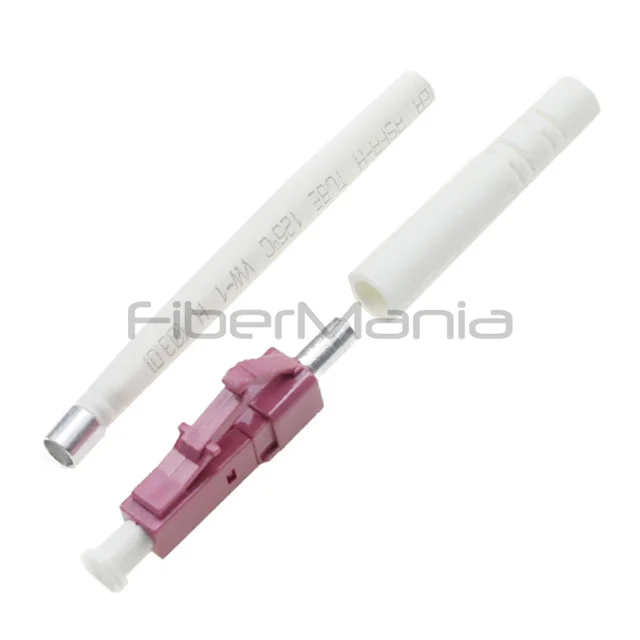

LC Simplex Connector, Multimode OM4, Magenta Housing, 2.0mm Boot
P/N: CLCM4MG2
Categories:
Product Highlights:
Table of Contents
Description
The LC Simplex OM4 Connector with magenta housing and 2.0 mm boot from FiberMania is designed for high-speed multimode fiber networks. Built with an epoxy-based assembly and pre-domed ceramic ferrule, it ensures precise fiber alignment, low insertion loss, and ultra-low back reflection. Optimized for OM4 50/125 µm multimode fibers, this connector is ideal for LAN, WAN, data center, and FTTx applications requiring high-performance optical connections.
The 2.0 mm boot provides strain relief and protection for the fiber, while the corrosion-resistant body ensures long-term durability. Its compact LC simplex form factor allows for high-density deployment in patch panels and network racks. Fully compliant with Telecordia GR-326-CORE and RoHS standards, this connector delivers reliable and consistent performance for professional optical installations.
Specification
| Connector Type | LC Simplex |
|---|---|
| Fiber Mode | Multimode OM4 |
| Ferrule Diameter | 2.5 mm (standard FC) |
| Housing Material | Plastic |
| Boot Diameter | 2.0 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Magenta |
Features
-
Low insertion loss (~0.20 dB) for stable multimode performance
-
Ultra-low back reflection with UPC return loss >50 dB
-
Corrosion-resistant body for long-term reliability
-
Compatible with 2.0 mm, 3.0 mm jacketed fibers and 900 µm buffered fibers
-
One-piece pre-domed ceramic ferrule for easy assembly
-
LC simplex form factor for high-density applications
-
Meets Telecordia GR-326-CORE specifications
-
RoHS compliant
-
Durable over 1,000 mating cycles
Application
-
LAN and WAN fiber optic networks
-
Telecommunication and broadband systems
-
CATV and multimedia distribution networks
-
FTTx access and drop networks
-
Data center interconnects and patch panels
-
Optical fiber testing and measurement
FAQ
Q: What fiber type is this connector designed for?
A: OM4 multimode 50/125 µm fiber.
Q: Is it suitable for high-density panels?
A: Yes, the LC simplex form factor is ideal for compact patch panels.
Q: What is the typical insertion loss?
A: Approximately 0.20 dB.
Q: How durable is the connector?
A: It can withstand over 1,000 mating cycles.
Q: Is the connector RoHS compliant?
A: Yes, all materials meet RoHS standards.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
