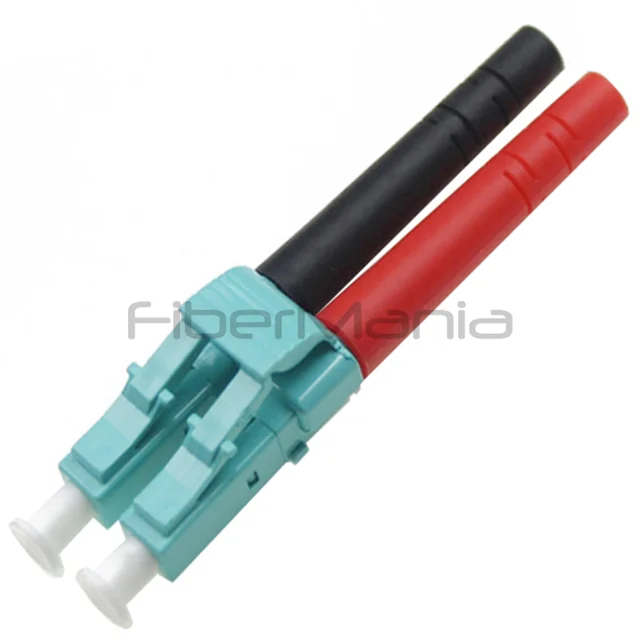

LC Duplex Connector, Multimode OM3, Aqua Housing, 3.0mm Boot
Categories:
Product Highlights:
-
LC duplex connector for multimode OM3 50/125 fiber, with aqua housing and 3.0mm boot
-
Low insertion loss and high return loss ensure stable and efficient optical performance
-
Durable, corrosion-resistant body suitable for LAN, WAN, CATV, FTTx, and broadband applications
-
FiberMania provides flexible OEM/ODM customization
Table of Contents
Description
This LC duplex connector is designed for high-performance multimode OM3 networks, ensuring reliable and efficient optical signal transmission. The connector features an epoxy-based construction with a pre-domed ceramic ferrule, allowing for easy assembly and precise alignment. Its 3.0mm boot and robust design provide mechanical protection for the fiber while maintaining low insertion loss and minimal back reflection.
FiberMania’s LC duplex connector is ideal for LAN, WAN, broadband, CATV, and FTTx applications. Its corrosion-resistant body and durable construction ensure stable performance even in demanding networking environments. The connector is compatible with 50/125µm OM3 fibers and supports high-density installations in patch panels and optical equipment.
Specification
| Connector Type | LC Duplex |
|---|---|
| Fiber Mode | Multimode OM3 |
| Ferrule Diameter | 2.5 mm (standard FC) |
| Housing Material | Plastic |
| Boot Diameter | 3.0 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Aqua |
Features
-
Low insertion loss for reliable optical performance
-
Corrosion-resistant body for durability
-
Ultra-low back reflection
-
Compatible with 3.0mm, 2.0mm jacket or 900µm buffer fibers
-
One-piece design with pre-domed ceramic ferrule for easy assembly
-
Meets Telecordia GR-326-CORE standards
-
RoHS compliant
Applications
-
LAN and WAN networks
-
Telecommunications systems
-
Broadband network deployment
-
CATV networks
-
FTTx projects
-
Optical fiber testing equipment
Q&A
Q: What is the maximum insertion loss?
A: 0.20dB per connector.
Q: What is the return loss of this connector?
A: Greater than 50dB (UPC).
Q: How many mating cycles can this connector withstand?
A: Over 1,000 matings.
Q: Can the boot size be customized?
A: Yes, FiberMania offers 3.0mm, 2.0mm, or 900µm boot options.
Q: Is this connector RoHS compliant?
A: Yes, it is fully RoHS compliant.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
