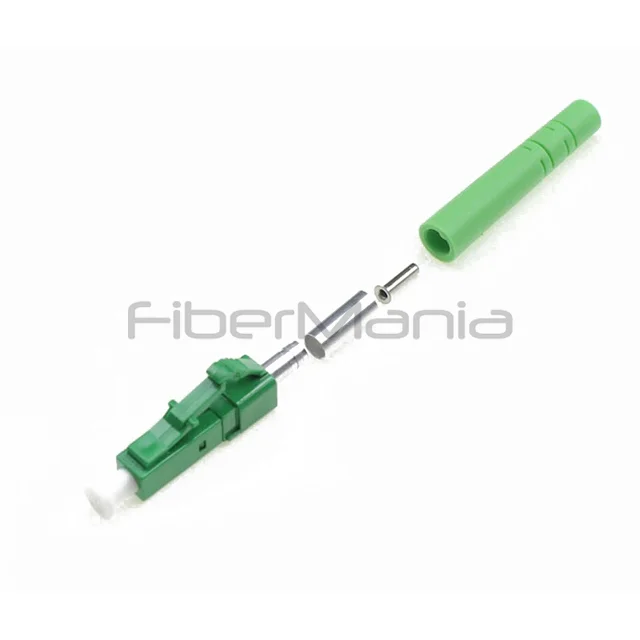

LC/APC Connector, Single Mode, Green Housing, 3.0mm Boot

Name: LC/APC Connector SM Green Housing 3.0mm Boot | FiberMania
SKU: CLCASMGN3

P/N: CLCASMGN3

Categories:

LC Connectors

Product Highlights:

LC/APC single-mode connector with green housing and 3.0 mm boot designed for ultra-low back reflection and high-precision optical performance.
Features a pre-domed ceramic ferrule and corrosion-resistant body for stable, low-loss connections in advanced APC applications.
Ideal for telecom, FTTx, broadband, and high-accuracy testing systems requiring high return-loss APC termination.

Description

The LC/APC Single Mode Connector with green housing and a 3.0 mm boot is engineered for high-performance optical termination where ultra-low back reflection is required. Featuring an angled physical contact (APC) ferrule geometry, this connector delivers exceptional return loss performance, making it ideal for FTTx networks, high-precision measurement systems, and long-distance single-mode applications. Its epoxy-based structure and pre-domed ceramic ferrule facilitate smooth assembly, ensuring consistent polishing, precise fiber alignment, and stable low insertion loss.

The connector body is constructed from corrosion-resistant materials, offering long-term durability even in high-density patching environments. The compact LC form factor supports modern network architectures where space efficiency is critical. The 3.0 mm boot provides strong strain relief, while compatibility with 2.0 mm and 900 µm versions offers flexibility for various cable assemblies. Fully compliant with Telecordia GR-326-CORE and RoHS standards, this LC/APC connector ensures reliable, high-quality performance throughout its service life.

Specification

Connector Type	LC/APC
Fiber Mode	Single Mode
Ferrule Diameter	1.25 mm
Housing Material	Plastic
Boot Diameter	3.0 mm
Ferrule Material	Ceramic
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 60 dB
Durability	≥ 1000 mating cycles
Alignment Sleeve	Ceramic
Operating Temperature	-40°C to +85°C
Compliance	RoHS compliant
Color	Green

Features

Low insertion loss with stable single-mode performance
Ultra-low back reflection (APC >65 dB) suitable for demanding optical applications
Corrosion-resistant body for long-term stability
Compatible with 3.0 mm, 2.0 mm jacket cables and 900 µm buffers
One-piece design with pre-domed ceramic ferrule for easier termination and polishing
Meets Telecordia GR-326-CORE requirements
RoHS compliant materials
High durability with more than 1,000 mating cycles

Application

LAN and WAN networks
Telecommunication infrastructure
Broadband and CATV networks
FTTx access systems requiring APC connectors
Optical fiber testing and measurement equipment
High-performance single-mode optical systems

FAQ

Q: Why choose an LC/APC connector over LC/UPC?
A: LC/APC provides significantly better return loss, making it ideal for FTTx, long-distance, and high-precision optical applications.

Q: Can FiberMania customize the boot color or size?
A: Yes, we offer 3.0 mm, 2.0 mm, and 900 µm boots with full OEM/ODM customization, including housing colors and branding.

Q: Is the pre-domed ferrule beneficial for APC polishing?
A: Yes, it simplifies polishing and ensures more consistent APC end-face geometry, improving return loss performance.

Q: How durable is this connector in repeated use?
A: It exceeds 1,000 mating cycles with minimal variation in insertion loss.

Q: Is this connector suitable for outdoor FTTx installations?
A: Yes, when used inside protective housings or closures, its APC performance and corrosion-resistant body make it ideal for FTTx deployments.
