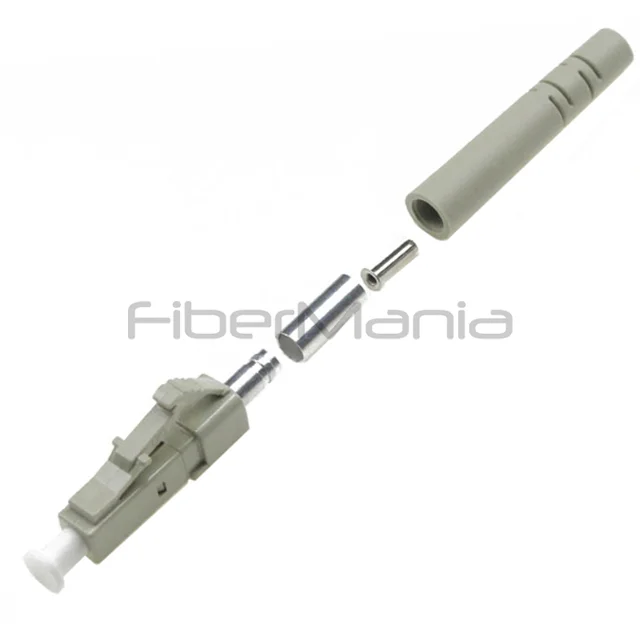

LC Simplex Connector, Multimode, Beige Housing, 3.0mm Boot
Categories:
Product Highlights:
-
LC simplex multimode connector with beige housing and 3.0 mm boot for low-loss, stable optical performance.
-
Features a pre-domed ceramic ferrule and corrosion-resistant body for long-term reliability.
-
Ideal for LAN, WAN, broadband, FTTx, CATV, and optical testing applications.
-
FiberMania provides OEM/ODM services, including custom boot sizes, colors, branding, and pre-terminated patch cords.
Table of Contents
Description
The LC Simplex Multimode Connector with beige housing and 3.0 mm boot from FiberMania is designed for reliable multimode fiber termination in LAN, WAN, and broadband networks. Built using epoxy-based assembly and a pre-domed ceramic ferrule, this connector ensures precise fiber alignment, low insertion loss, and ultra-low back reflection, delivering stable optical performance across multimode fiber systems. Its compact LC form factor is ideal for high-density patch panels and network racks.
The connector accommodates 3.0 mm and 2.0 mm jackets as well as 900 µm buffered fibers, providing versatility for different cable types. The corrosion-resistant body ensures long-term durability, while the 3.0 mm boot offers strain relief to protect the fiber from mechanical stress. Fully compliant with Telecordia GR-326-CORE and RoHS standards, this LC/UPC connector guarantees performance consistency and reliability for professional fiber optic installations.
Specification
| Connector Type | LC Simplex |
|---|---|
| Fiber Mode | Multimode |
| Ferrule Diameter | 1.25 mm |
| Housing Material | Plastic |
| Boot Diameter | 3.0 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Beige |
Features
-
Low insertion loss (~0.20 dB) for stable multimode performance
-
Ultra-low back reflection with UPC return loss >50 dB
-
Corrosion-resistant body for long-term durability
-
Compatible with 3.0 mm, 2.0 mm jacketed cables and 900 µm buffered fibers
-
One-piece pre-domed ceramic ferrule for easy assembly
-
LC simplex design for high-density applications
-
Meets Telecordia GR-326-CORE specifications
-
RoHS compliant
-
Durable over 1,000 mating cycles
Application
-
LAN and WAN fiber optic networks
-
Telecommunication and broadband systems
-
CATV and multimedia distribution networks
-
FTTx access and drop networks
-
Optical fiber testing and measurement equipment
-
High-density patch panels and cross-connects
FAQ
Q: What fiber types are compatible with this connector?
A: OM1, OM2, OM3, OM4 multimode fibers.
Q: Can this connector be used in high-density panels?
A: Yes, the LC simplex form factor is ideal for compact patch panels.
Q: What is the typical insertion loss?
A: Approximately 0.20 dB.
Q: How durable is the connector?
A: It can withstand over 1,000 mating cycles.
Q: Is it RoHS compliant?
A: Yes, all materials meet RoHS standards.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
