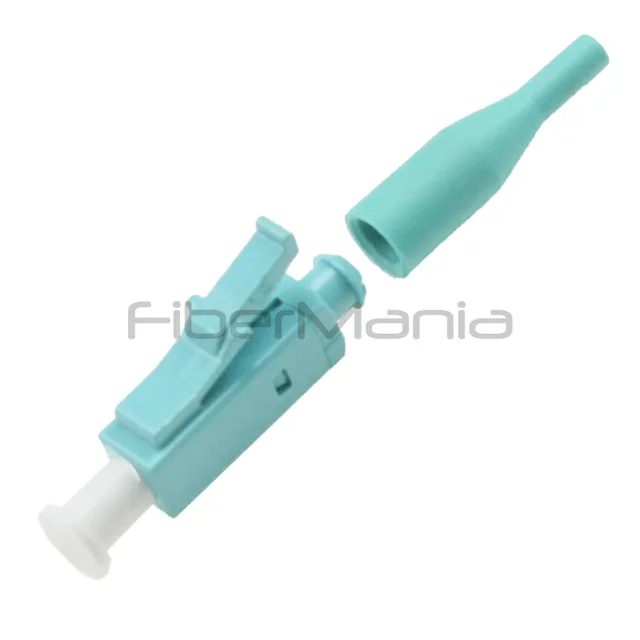

LC Simplex Connector, Multimode OM3, Aqua Housing, 0.9mm Boot

Name: LC Simplex Connector MM OM3 Aqua Housing | FiberMania
SKU: CLCM3AQ9

P/N: CLCM3AQ9

Categories:

LC Connectors

Product Highlights:

High-performance LC simplex connector for multimode OM3 fiber
Ultra-low insertion loss and back reflection for reliable network performance
Compatible with 900µm buffered fiber, 2.0mm and 3.0mm jacketed fiber
FiberMania offers full OEM/ODM customization and labeling services, ensuring your connectors meet precise project requirements

Description

The LC Simplex Connector is a high-performance multimode connector designed for OM3 fiber, providing reliable and efficient optical connections in a wide range of networking applications. Its epoxy-type design ensures low insertion loss and ultra-low back reflection, making it ideal for high-speed data transmission in LAN, WAN, and broadband networks.

This connector features a one-piece pre-domed ceramic ferrule, enabling fast and easy assembly while maintaining precision alignment for optimal signal performance. The corrosion-resistant body enhances durability and ensures consistent operation in both indoor and outdoor environments.

Available with a 0.9mm boot, it supports 900µm buffer fibers, making it compatible with various jacketed fiber sizes and allowing for flexible installation in high-density cabling environments.

Specification

Connector Type	LC Simplex
Fiber Mode	Multimode OM3
Ferrule Diameter	2.5 mm (standard FC)
Housing Material	Plastic
Boot Diameter	0.9 mm
Ferrule Material	Ceramic
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 35 dB
Durability	≥ 1000 mating cycles
Alignment Sleeve	Ceramic
Operating Temperature	-40°C to +85°C
Compliance	RoHS compliant
Color	Aqua

Features

Low insertion loss and ultra-low back reflection
Corrosion-resistant housing for extended durability
One-piece pre-domed ceramic ferrule for easy assembly
Compatible with 3.0mm, 2.0mm jacket or 900µm buffered fiber
Meets Telecordia GR-326-CORE specifications
RoHS compliant

Applications

LAN and WAN networks
Telecommunication systems
Broadband and CATV networks
FTTx projects
Optical fiber test equipment

FAQ

Q1: Can this connector be used with single mode fiber?
A1: No, this connector is designed specifically for multimode OM3 fiber. For single mode, please use the corresponding LC single mode connector.

Q2: What boot sizes are supported?
A2: This connector supports 0.9mm buffered fiber, and can also accommodate 2.0mm and 3.0mm jacketed fiber with compatible strain relief boots.

Q3: How many mating cycles can the connector withstand?
A3: The connector is rated for over 1,000 mating cycles, ensuring long-term reliability.

Q4: Does FiberMania offer custom colors or labeling for LC connectors?
A4: Yes, we provide OEM/ODM services to customize boot color, ferrule type, and labeling according to client specifications.

Q5: Is the connector RoHS compliant?
A5: Yes, it meets RoHS environmental standards.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
