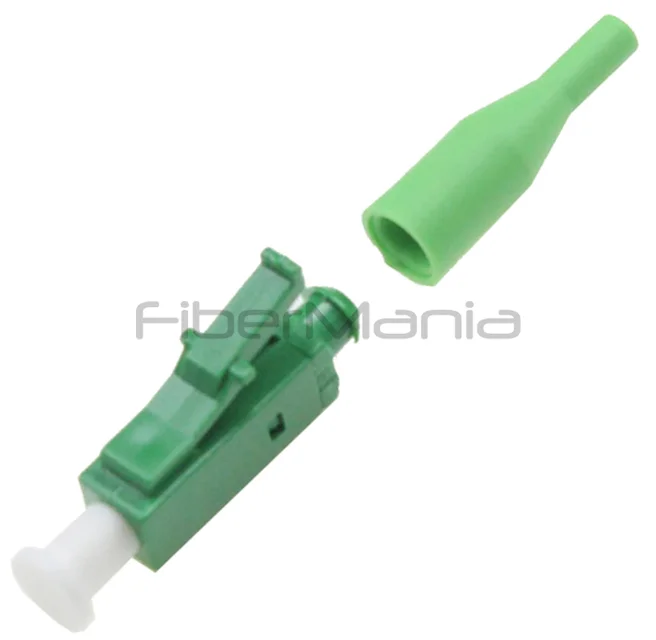

LC/APC Connector, Single Mode, Green Housing, 0.9mm Boot
Categories:
Product Highlights:
-
LC/APC single mode fiber connector with 0.9mm boot and green housing
-
Ultra-low insertion loss and back reflection for high-performance optical networks
-
Compact, durable, and suitable for LAN, WAN, CATV, and FTTx applications
-
FiberMania offers OEM/ODM customization services, including boot sizes, housing colors, and packaging options
Table of Contents
Description
The LC/APC single mode fiber connector with a 0.9mm boot is designed for precision optical network connections, providing low insertion loss and ultra-low back reflection for optimal signal performance. The connector features a green housing and a one-piece pre-domed ceramic ferrule for easy assembly and reliable long-term operation.
FiberMania’s epoxy-type connectors are engineered to meet the stringent requirements of telecommunication, broadband, CATV, and FTTx projects. Its compact design supports high-density cabling and ensures accurate alignment for single mode 9/125µm fibers. The 0.9mm boot allows for compatibility with tight buffer fiber and facilitates easy integration into patch panels and field installations.
This connector is fully RoHS compliant and adheres to Telecordia GR-326-CORE specifications, ensuring both environmental safety and high-quality performance.
Specification
| Connector Type | LC/APC |
|---|---|
| Fiber Mode | Single Mode |
| Ferrule Diameter | 1.25 mm |
| Housing Material | Plastic |
| Boot Diameter | 0.9 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 60 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Green |
Features
-
Low insertion loss and ultra-low back reflection
-
Corrosion-resistant body
-
Compatible with 0.9mm boot or tight buffer fiber
-
One-piece pre-domed ceramic ferrule for easy assembly
-
Meets Telecordia GR-326-CORE standards
-
RoHS compliant
Applications
-
LAN & WAN networks
-
Telecommunication systems
-
Broadband and CATV infrastructure
-
FTTx deployment projects
-
Optical fiber test equipment
Q&A
Q: What is the insertion loss of this connector?
A: Typically 0.20dB.
Q: What type of fiber is compatible?
A: Single mode 9/125µm fiber.
Q: Can this connector be used in high-density panels?
A: Yes, its compact LC/APC design supports high-density deployment.
Q: How durable is this connector?
A: Rated for over 1,000 matings.
Q: Is customization available?
A: Yes, FiberMania provides OEM/ODM customization for boot size, color, and packaging.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
